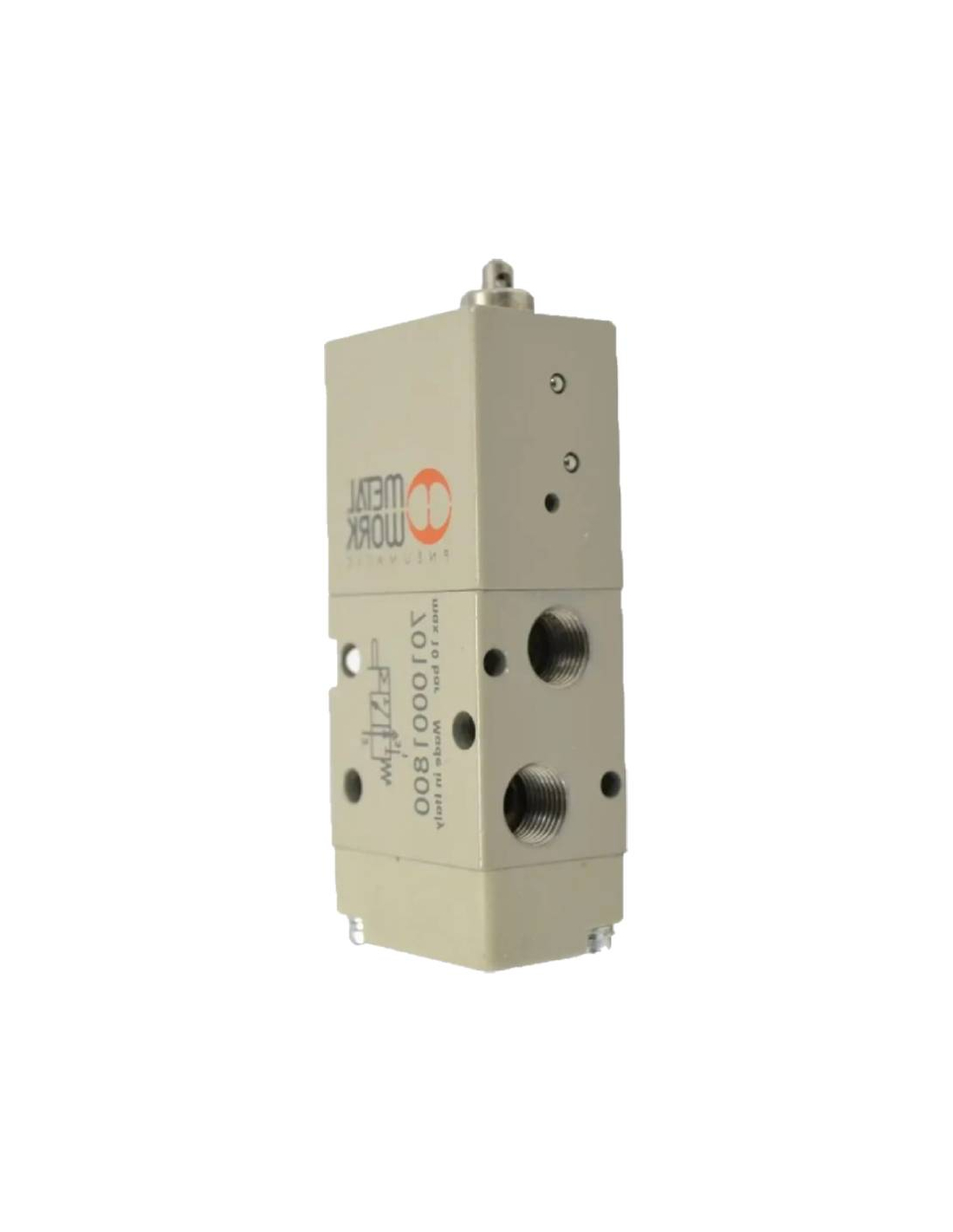

Limit Switch 1/8 3/2 NC pneumatic for panel actuators - Metal Work

Name: Limit Switch 1/8 3/2 NC pneumatic for panel actuators - Metal Work
Brand: Metal Work
SKU: 7010001800
Price: 49.1381 EUR
Availability: PreOrder

€49.14 Tax included

€40.61 tax excl.

limit switch pneumatic valve 1/8 3/2 for mounting with emergency pushbutton or similar

Reference: 7010001800

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

limit switch 1/8 3-way tire (servo-piloted strut) normally closed. Pre-installation for manual panel actuators.

Specifications:

Manufacturer: Metal Work.
Reference: 70010001800 MAV 23 BRE NC
Size: 1/8"
Control: front piston
Working pressure: 2.5÷10 bar
Temperature: -10÷60ºC
Flow rate at 6bar ΔP 0.5bar: 400 Nl/min.
Flow at 6bar ΔP 1bar: 550 Nl/min.
Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

70 manual series valves

Download (1.51MB)
