Ball joint stem diameter 50 and 63 M16x1.5 maintenance-free

€15.44 Tax included

12.76 tax excl.

TSF161C

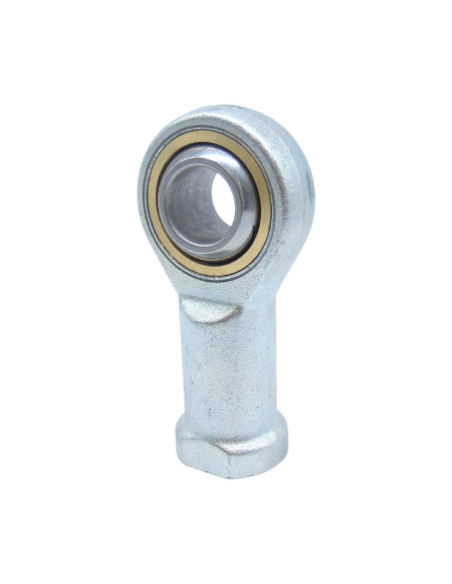

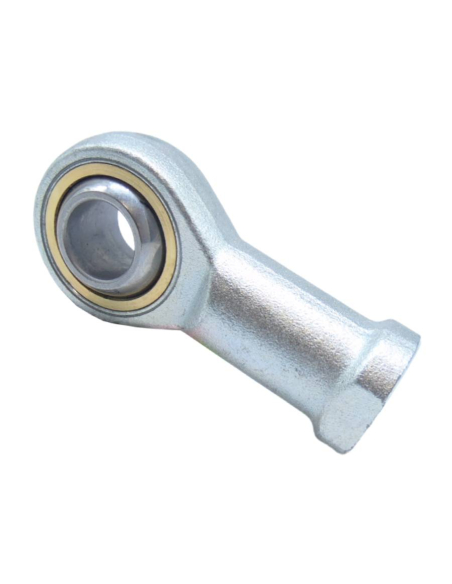

Ball joint for pneumatic cylinder rod diameter 50 and 63 mm. Type GA-M. Female thread M16x1.5mm, maintenance-free.

Reference: 80801240

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

Ball joint for pneumatic cylinder rod diameter 50 and 63 mm, with female thread M16x1.5mm

These types of ball joints are particularly designed for universal use (alternating loads, unilateral movements, slow rotation and medium to large turning angles). They are also suitable for movement devices and transmission chains.

The thread pitch conforms to the CETOP standard, which allows them to be mounted directly on the rods of pneumatic cylinders .

Manufacturer: ISB
Reference: TSF 16.1C (80801240)
Thread: M16x1.5
Type: GA-M
No maintenance

Other references: consult.
TSF ISB ball joint dimensions

Professional use material, install in compliance with the regulations in force at the installation site.
