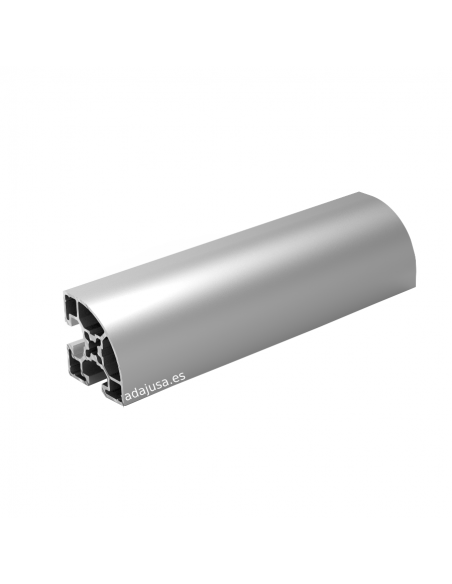

Aluminium profile 45x45 1 curved face
Aluminium profile 45x45 1 curved face

Aluminum profile 45x45 curved face cut to size

Special material, cut to size, delivery time approximately 5-7 days
€24.05 Tax included

19.88 tax excl.

10010

Structural profile of industrial aluminum of 45x45mm 1 curved face, groove of 10mm.

Reference: 10010

Anodized aluminum profile in color natural for industrial and general applications of 45x45mm curved face, has a groove for each of the non-smooth sides for 10mm accessories.

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.



Profile cut to the desired size between 250 mm and 1,800 mm. Indicate the length you want in the side menu.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Structural aluminum profile of 45x45mm 1 curved face for industrial applications and general use. It has a slot of 10mm in its entire length for each of its faces that are not smooth.

Made of high-strength aluminum, anodized in natural color (aluminum).

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.

dimensiones perfil aluminio 45x45 curvo

Specifications:

  • Manufacturer/supplier: LIPRO/Metal Work
  • Reference: 10010
  • Dimensions: 45x45mm
  • Material: Aluminum alloy Al Mg Si 6060 (ISO 9006/1)
  • Minimum tensile strength (Rm): 195 N/mm2
  • Yield strength: Rp 0.2= 145 N/mm2
  • Modulus of elasticity (E): 70000 N/mm2
  • Anodizing thickness: 15 μm
  • Dimensional tolerance according to ISO-EN 755
  • Moment of inertia:
    • Lx (cm⁴): 9.14
    • Ly (cm⁴): 9.14
  • resistance module:
    • Wx (cm³): 3.53
    • Wy (cm³): 3.53
  • Profile Area: 516.84 mm2
  • Mass (Kg/m): 1,38
  • Slot width: 10 mm
  • Number of slots: 2

Material cut to size, once the order has been processed, it cannot be cancelled or modified. The cutting accuracy is ±3mm.
