Aluminium profile 30x60
Aluminium profile 30x60

Aluminum profile 30x60 cut to size

Special material, custom cut, delivery time 5-7 days approximately
€27.00 Tax included

€22.31 tax excl.

Structural profile of industrial aluminum of 30x60mm, groove of 8mm.

Reference: 10005

Anodized aluminum profile in color natural for industrial and general applications of 30x60mm, has a groove on each side for 8mm accessories.

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.



Profile cut to the desired size between 250 mm and 1,800 mm. Indicate the length you want in the side menu.



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

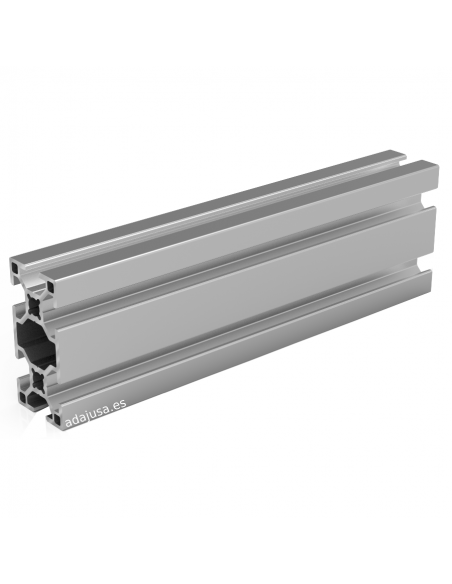

Structural aluminum profile of 30x60mm for industrial applications and general use. It has several 8mm slots along its entire length for each of its four faces.

Made of high-strength aluminum, anodized in natural color (aluminum).

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.

Perfil aluminio 30x60

Specifications:

  • Manufacturer/supplier: LIPRO/Metal Work
  • Reference: 10005
  • Dimensions: 30x60mm
  • Material: Aluminum alloy Al Mg Si 6060 (ISO 9006/1)
  • Minimum tensile strength (Rm): 195 N/mm2
  • Yield strength: Rp 0.2= 145 N/mm2
  • Modulus of elasticity (E): 70000 N/mm2
  • Anodizing thickness: 15 μm
  • Dimensional tolerance according to ISO-EN 755
  • Moment of inertia:
    • Lx (cm⁴): 19.03
    • Ly (cm⁴): 5.28
  • resistance module:
    • Wx (cm³): 6.34
    • Wy (cm³): 3.52
  • Profile area: 542.13 mm2
  • Mass (Kg/m): 1,45
  • Slot width: 8 mm
  • Number of slots: 6

Material cut to size, once the order has been processed, it cannot be cancelled or modified. The cutting accuracy is ±3mm.
