Heavy 45x45 aluminum profile
Heavy 45x45 aluminum profile

Aluminum profile 45x45 heavy cut to measure

Special material, cut to size, delivery time approximately 5-7 days
€38.51 Tax included

31.83 tax excl.

10008

Heavy structural profile of aluminum of 45x45mm, groove of 10mm.

Reference: 10008

Anodized aluminum profile for heavy loads in color natural for industrial and general applications of 45x45mm, has a groove on each side for 10mm accessories.

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.



Profile cut to the desired size between 250 mm and 1,800 mm. Indicate the length you want in the side menu.

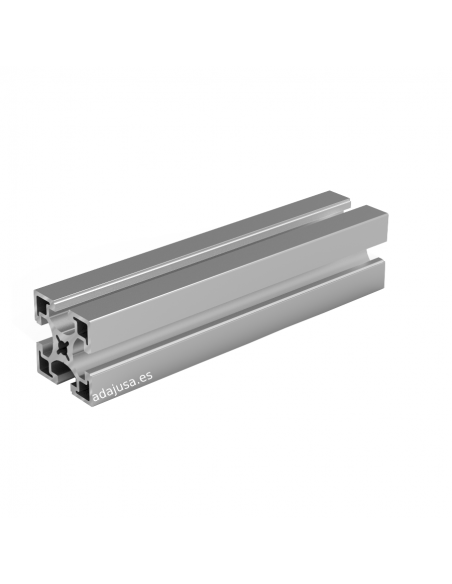

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Heavy structural aluminium profile of 45x45mm for industrial and general use applications. It has a 10mm groove in its entire length for each of its four faces.

Made of high-strength aluminum, anodized in natural color (aluminum).

The main applications are the manufacture of structures, benches for machinery, workbenches and roller paths. All this in a simple way due to the large number of accessories for assembly.

Perfil aluminio 45x45 Pesado

Specifications:

  • Manufacturer/Supplier: LIPRO/Metal Work
  • Reference: 10008
  • Dimensions: 45x45mm heavy
  • Material: Aluminum alloy Al Mg Si 6060 (ISO 9006/1)
  • Minimum tensile strength (Rm): 195 N/mm2
  • Yield strength: Rp 0.2= 145 N/mm2
  • Modulus of elasticity (E): 70000 N/mm2
  • Anodizing thickness: 15 μm
  • Dimensional tolerance according to ISO-EN 755
  • Moment of inertia:
    • Lx (cm⁴): 15.04
    • Ly (cm⁴): 15.04
  • resistance module:
    • Wx (cm³): 6.68
    • Wy (cm³): 6.68
  • Profile area: 792.01 mm2
  • Mass (Kg/m): 2,12
  • Slot width: 10 mm
  • Number of slots: 4

Material cut to size, once the order has been processed, it cannot be cancelled or modified. The cutting accuracy is ±3mm.
