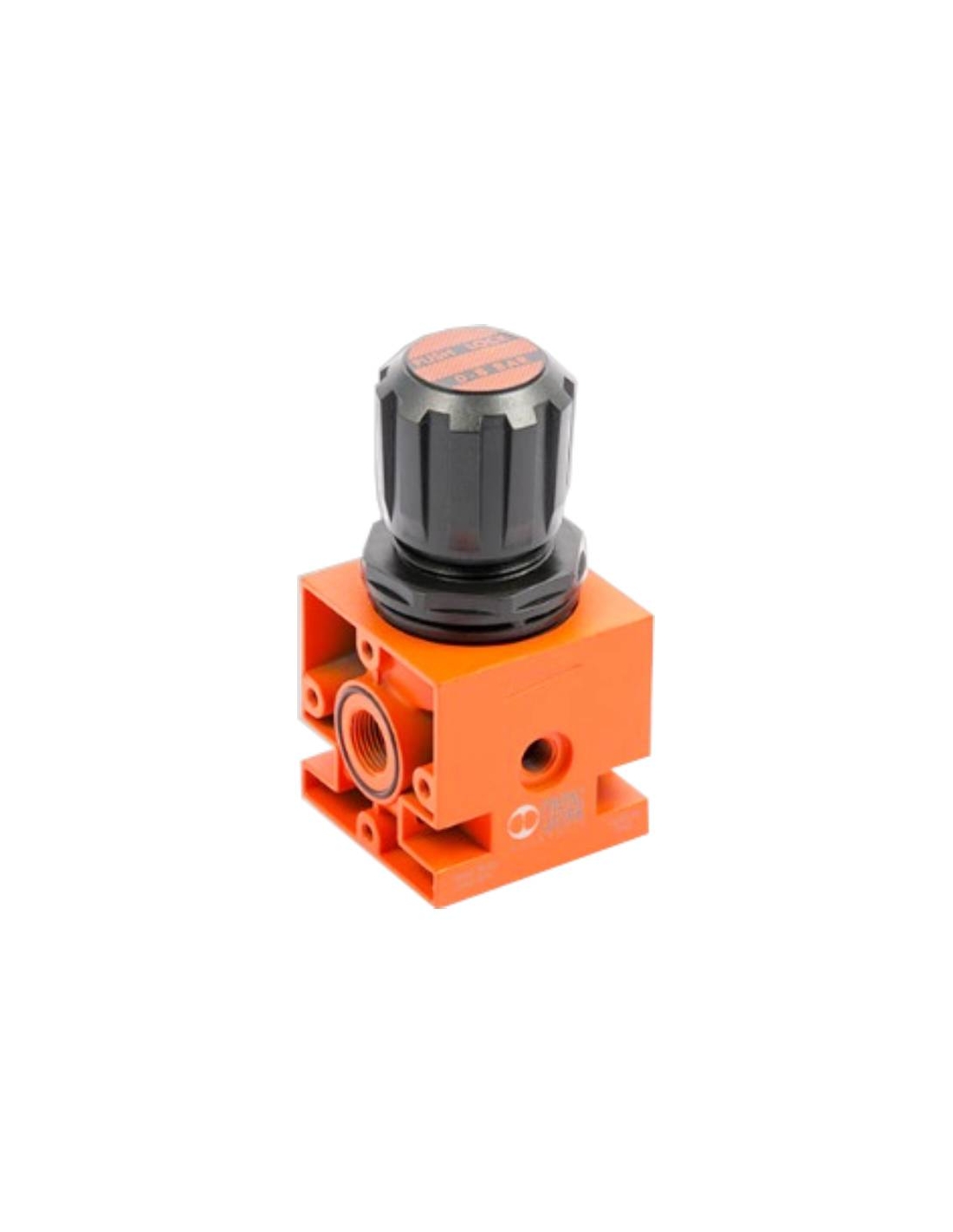

Regulator pressure 3/4 0-12 bar metal New deal - Metal Work

€129.02 Tax included

€106.63 tax excl.

Pressure regulator of 3/4 regulation 0-12 Kgrs, extremely reliable and robust metal body. Allows stability of the output pressure to the preset pressure. Possibility of fixing by side holes.

The pressure gauge must be ordered separately.

Ref: 1502003 - REG 3/4 012

Simbolo neumático regulador de presión

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the indicated specifications.

Representative image for illustrative purposes, the article supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pressure regulator of 3/4" 0-12 Kgrs, extremely reliable and robust metal body. Allows stability of the output pressure at the pre-set pressure from an inlet pressure equal to or higher. Possibility of fixing by side holes.

Technical details.

  • Manufacturer: Metal Work
  • Reference: 1502003.
  • Threaded connection size: 3/4".
  • Regulation range: 0-12 bar.
  • Maximum input pressure: 18 bar.
  • Flow rate: 4500Nl/min.
  • Fluid: Air filtering, with or without lubrication.
  • Wall fixing screws: M6x75.
  • Meter connection: 1/4".

For other models or sizes consult.

dimensiones regulador presion neumatico

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"
