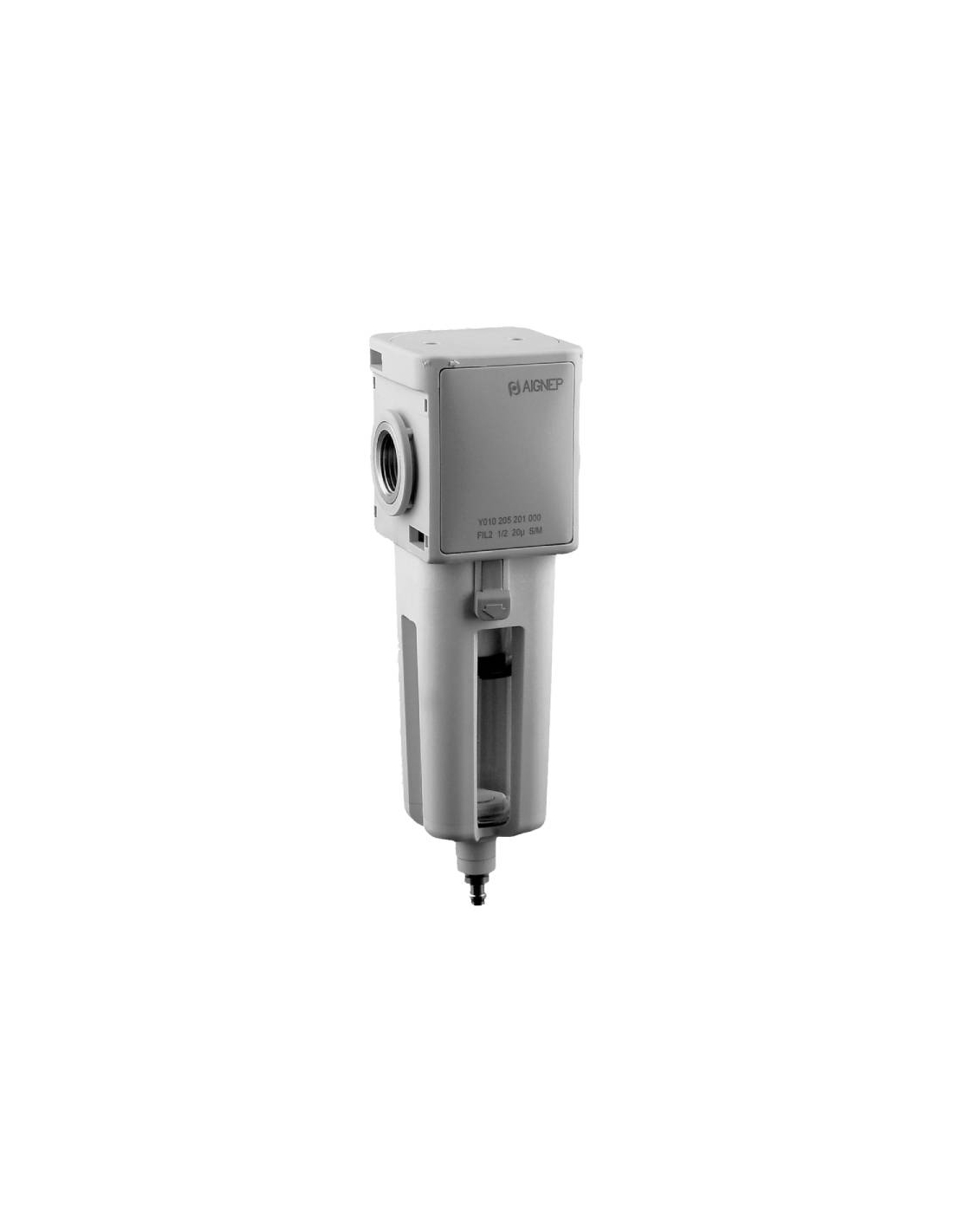

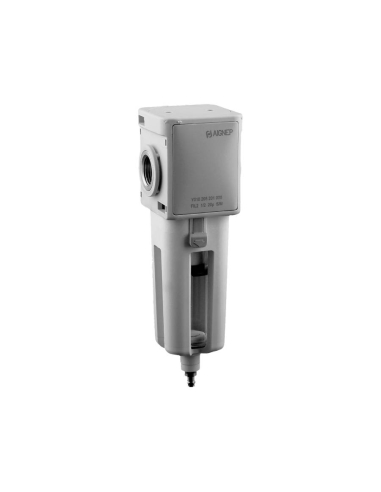

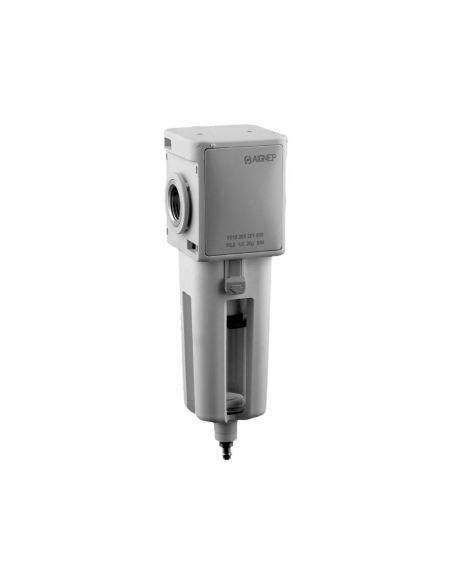

Filter 3/4 20 microns automatic drain size 3 FRL EVO series - Aignep

€81.03 Tax included

66.97 tax excl.

Y010307202000

3/4 filter, with a filtration degree of 20μm and automatic discharge, size 3, for retention solid or liquid impurities from the air compressor. These filter vessels are made of technopolymer and with metal finishes. Made in Italy.

Series: FRL Evo
Reference: Y010307202000
Pneumatic symbol filter Adajusa
Aignep logo

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

3/4 filter vessel with a filtration grade of 20μm to retain solid or liquid impurities from the air compressor. Compact size (T3). The drain type is automatic, discharging the condensate when it reaches the maximum allowed level regardless of the operating pressure.

Characteristics:

Manufacturer: Aignep
Manufacturer reference: Y010307202000
Threaded drive: 3/4"
Group size: size 3.
Filtered grade: 20 μm
Maximum inlet pressure: 13 bar
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 7900
Fluid: Compressed air or other inert gases
Cup capacity (condensation) (cm3): 151
Mounting position: Vertical.
Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Dimensions of the Aignep Adajusa EVO series filter

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Catalogo FRL EVO

Download (4.94MB)
