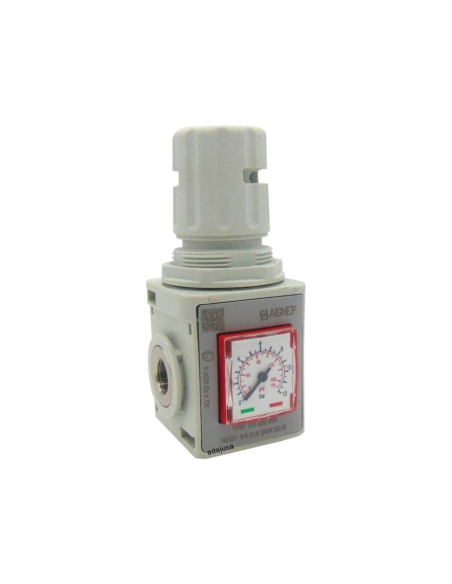

Pressure Regulator with pressure gauge and lockable 3/4 0-8 bar size 3 FRL EVO series - Aignep

Pressure Regulator with pressure gauge and lockable 3/4 0-8 bar size 3 FRL EVO series - Aignep

€64.51 Tax included

€53.31 tax excl.

3/4" pressure Regulator with integrated pressure gauge, range 0-8 bar , size 3, technopolymer body and metal finishes . Allows output pressure stability at the preset pressure . Possibility of fixing by means of side drills. Padlock locking system. Made in Italy.

Series: FRL Evo
Reference: Y020307030000

Aignep logo regulations

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


3/4" pressure Regulator with integrated pressure gauge, range 0-8 bar . Allows output pressure stability at the preset pressure starting from an equal or higher input pressure. Compact size (T3). Fixing by means of side drills. Knob with padlock lock and possibility of coupling various regulators in series with individual pressure regulation.




FRL EVO BLOCKING REGULATOR




It supports a wide variety of mounting types, with the appropriate accessories.

Technical characteristics.

  • Manufacturer: Aignep
  • Reference: Y020307030000
  • Regulator size: size 3.
  • Threaded connection size: 3/4".
  • Regulation range: 0-8 bar .
  • Maximum inlet pressure: 13 bar .
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 7700
  • Fluid: Compressed air or other inert gases
  • Wall fixing screws: M6x15
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.
  • Mounting accessories both individually and in series: not included

For other sizes or references: consult.



Dimensions of the Syntesi regulator size 1 Metal Work



Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
