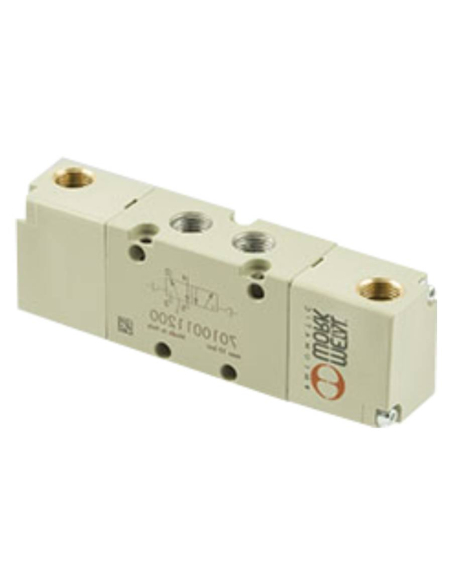

Valve 3/8 5/3 exhaust centers - Metal Work
Valve 3/8 5/3 exhaust centers - Metal Work

Valve 3/8 5/3 exhaust centers - Metal Work

€87.79 Tax included

€72.55 tax excl.

Pneumatic valve of 3/8 5 ways 3 positions centers in exhaust, pneumatic control, metal body. For control of double effect cylinders.

Reference: 7020012200

Esquema válvula 3 posiciones centros en escape

Logotipo Metal Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic valve of 3/8 5/3 exhaust centers, pneumatic drive. that allow to control double-effect cylinders.

The valve has 3 positions, activating one inlet the cylinder advances, without activating any the cylinder runs out of pressure (force), the air is allowed to leave the sides of the cylinder, and activating the other inlet the cylinder is collected.


Specifications:

  • Manufacturer: Metal Work.
  • Reference: PNV C6 PNS OC
  • Code: 7040012200
  • Scheme: 5 Ways.
  • Positions: 3 monostable, open centers
  • Size: 3/8".
  • Fluid type: Pressurized or vacuum air, with or without lubrication.
  • Working pressure: Empty÷10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10º÷60ºC.
  • Nominal diameter: 13.3mm.
  • Flow rate at 6 bar ΔP 0.5 bar: 1560Nl/min.
  • Flow rate at 6 bar ΔP 1 bar: 2150Nl/min.
  • Response time at 6 bar: 5/28.
  • Manufacturing material: Aluminum.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
