Open monostable 3/8 3-way valve NO Mindman - ADAJUSA
Valve  3/8 3-way monostable open NO - Mindman
Open monostable 3/8 3-way valve NO Mindman - ADAJUSA
Valve  3/8 3-way monostable open NO - Mindman

Valve 3/8 3-way monostable open NO - Mindman

€29.68 Tax included

€24.53 tax excl.

Pneumatic valve 3/8 3 ways monostable normally open (NO).

Reference: 281MVAA3003A1NO

https://rodavigo.net/datos/logos-marcas-png/th_mindman.png

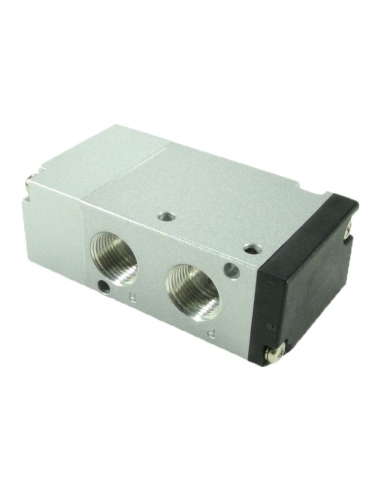

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic valve of 3/8 3 ways monostable, for general and industrial applications. The valve is normally open (NO), that is, without piloting pressure, the inlet is communicated with the outlet, that is, there is air pressure at the outlet, the outlet is communicated with the valve exhaust. When pressure is received from the pilot inlet, air circulation between the inlet and outlet is interrupted.

Specifications:

  • Manufacturer: Mindman.
  • Manufacturer reference: MVAA-300-3A1-NO
  • Valve type: 3/8-3/2 Monostable.
  • Thread type: G 3/8".
  • number of tracks: 3.
  • Positions: 2.
  • Fluid type: Pressurized air, with or without lubrication.
  • Working pressure: 0÷8 Kgr/cm².
  • Piloting pressure: 2÷7 Kgr/cm².
  • Maximum pressure: 10 Kgr/cm².
  • Effective pitch diameter: 35 mm2.
  • Working temperature: -5 to 60ºC.
  • Material: Aluminum and steel.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
