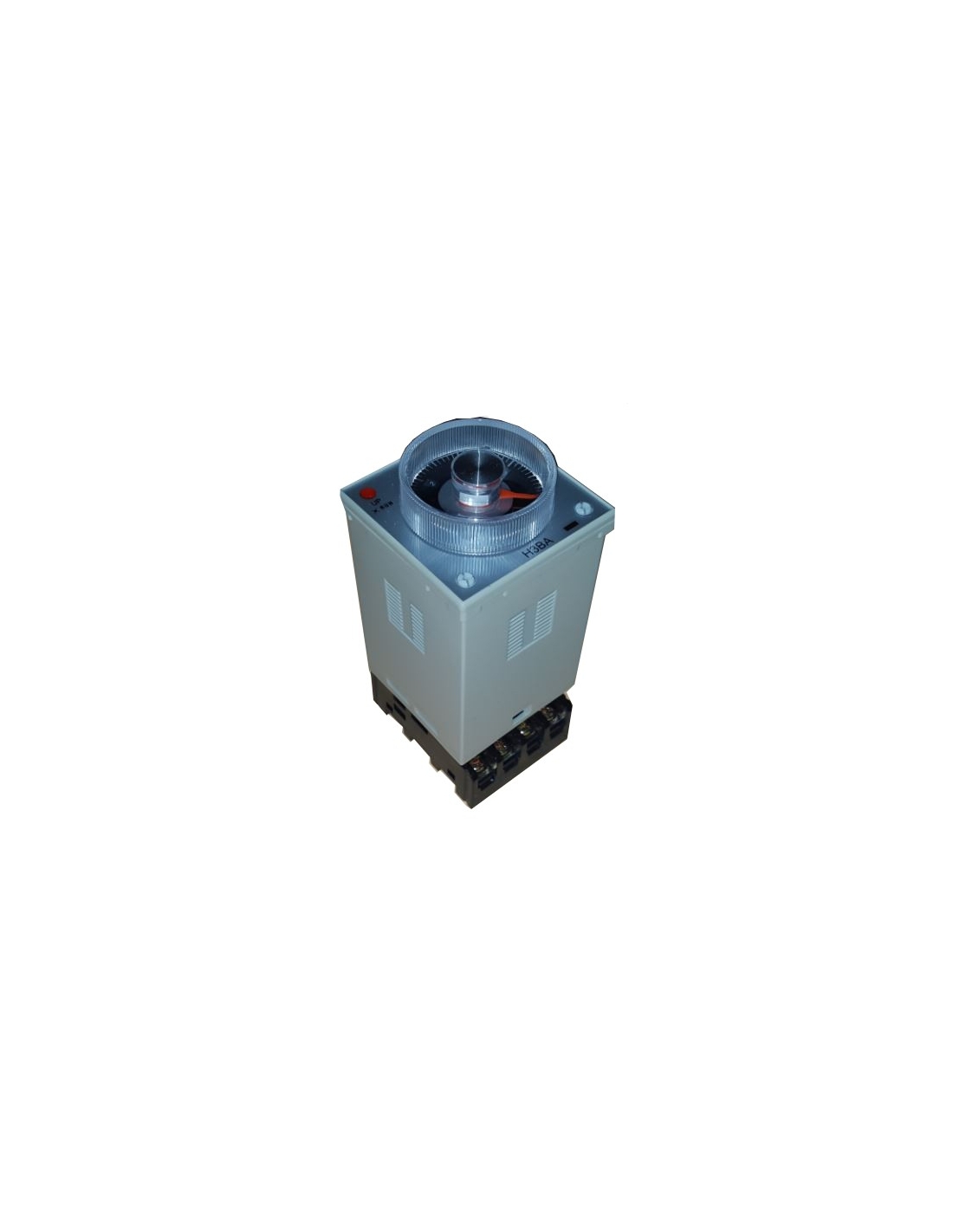

Multi-drift timer 48x48 pluggable 24Vac/dc (on connection)

€16.67 Tax included

€13.78 tax excl.

48x48 pluggable 24V multi-range timer, valid for continuous current and AC, switch to connection for general and industrial applications, plug-in on octal base, 2 switched contacts, 1 instantaneous and other timed.

Size 48x48mm.

Adjustable between 0.05 sec to 100 hours (in various ranges).

NOTE: The plug-in mounting base is not included in the scope of delivery and must be purchased separately.



Ref: H3BA-8H 24Vac/dc

Rele 2 contactos conmutados

No queries yet, leave the first!
Privacy
Shipments
Returns


Multi-drift timer to the connection, pluggable on octal base (8 pins). The timer has 2 switched contacts, one instantaneous and one timed. Large dimming knob.

The timing time range is 0.05 sec to 100h at various scales, selectable by selectors located on the front of the timer.

Equipped with electronic circuits that give it high operating stability. Compact and standardized design, 48x48 mm., led status indication.

The operating mode is "timer to connection", that is, after receiving a signal (voltage) between terminals A1 and A2, timing begins, and when the setting time is reached, the timed output contact is activated.

Diagrama de tiempos temporizador a la conexión

Instant contact is activated when the timer is voltageed.

Technical details:

  • Manufacturer/Supplier: Denor
  • Ref: H3BA-8H 24Vac/dc
  • Operating voltage:24Vac/dc.
  • Operating mode: timer to the connection.
  • Margin of regulation: 0.05s to 100 h.
  • Contact type: 2 switched contacts, 1 instantaneous and one timed.
  • Output contacts capacity: 3A (250Vac, cos-1).
  • Dimensions: 48x48mm.
  • Status indication: Red LED.
  • Degree of protection: IP20.

Time Ranges:

Tabla rango de tiempos H3BA-8

Connection Scheme:

Esquema electrico conexionado temporizador H3BA-8H

24Vca

Time diagram:

Diagrama de tiempos para temporizador H3BA-8H

Dimensions:

Dimensiones temporizador H3BA-8
