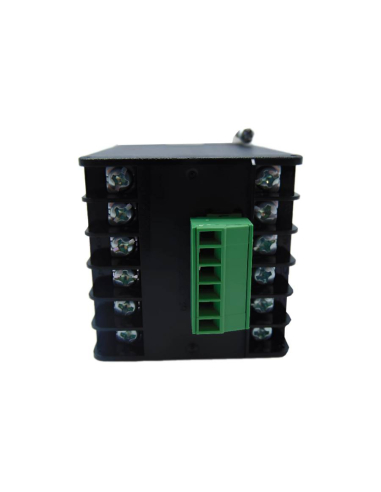

Digital temperature controller 48x48 - DELTA

€131.26 Tax included

€108.48 tax excl.

Digital temperature controller, thermostat, with direct temperature reading, size 48x48mm, supports a wide range of sensors. Relay output. PID, ON/OFF and manual control. Working voltage 100 to 240Vac.

Reference: DT320RA‐0200

No queries yet, leave the first!
Privacy
Shipments
Returns


High precision digital temperature controller, thermostat, with direct reading of current temperature and setpoint. PID, ON/OFF and manual control.

PID temperature control, with precise self-adjustment (AT), PID parameters are automatically calculated which improves system stability and control accuracy.

Its usual use is for precise temperature control in industrial, domestic and systems machines in general.

Specifications:

  • Manufacturer: DELTA
  • Reference: DTA4848R0
  • Working voltage: 100 to 240Vac.
  • Power consumption: 5VA.
  • Dimensions: 48x48mm.
  • Indication: Using 2 lines of 7-segment LED displays, red and green.
  • Input Temperature Sensors:
    • Thermocouples: K, J, T, E, N, R, B, U, L, TXX
    • RTD platen: Pt100, jPt100.
  • Measurement display accuracy: 0.1%.
  • Control methods: PID, ON/OFF, manual.
  • Output Type: Relay 250Vac 5A.
  • Sampling rate: 0.5 seconds.

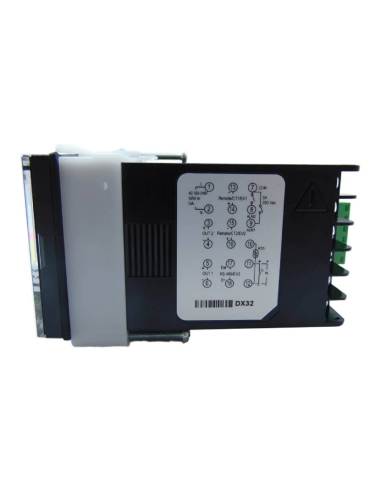

Connection Scheme:

Conexionado controlador temperatura DTA4848R0 Delta

Dimensiones controlador temperatura Delta DTA4848R0
