1/4 metal pressure regulator - Metal Work
1/4 metal pressure regulator - Metal Work

Pressure regulator 1/4 0-4 bar metal Newdeal- Metal Work

€32.68 Tax included

€27.01 tax excl.

Pressure regulator of 1/4 regulation 0-4 Kgrs, extremely reliable and robusted metal body. It allows stability of the outlet pressure to the predetermined pressure. Possibility of fixing by means of side drills. New deal group

The manometer not included (can be ordered separately)

Simbolo neumático regulador de presión

Logotipo Metal Work



Reference: 1202001

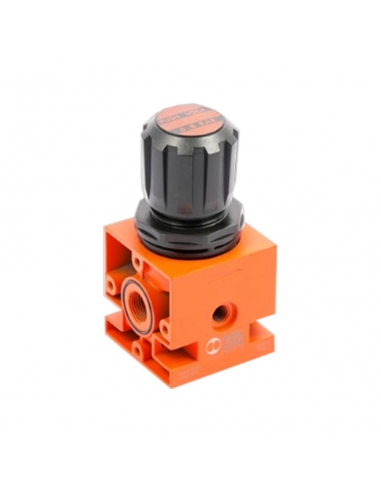

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pressure regulator of 1/4 0-4 Kgrs, extremely reliable and robust metallic body. Allows stability of the output pressure at the pre-set pressure from an inlet pressure equal to or higher. Possibility of fixing by side holes.

Technical details.

  • Manufacturer: Metal Work
  • Reference: 1202001.
  • Threaded connection size: 1/4".
  • Adjustment range: 0-4 bar.
  • Maximum input pressure: 18 bar.
  • Flow rate: 650Nl/min.
  • Fluid: Air filtering, with or without lubrication.
  • Wall fixing screws: M4x40.
  • Meter connection: 1/8".

For other models or sizes consult.

dimensiones regulador presion neumatico





Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"
