Manometer diameter 50 1/4 0-12 bar back plastic box - Metal Work

€5.77 Tax included

€4.77 tax excl.

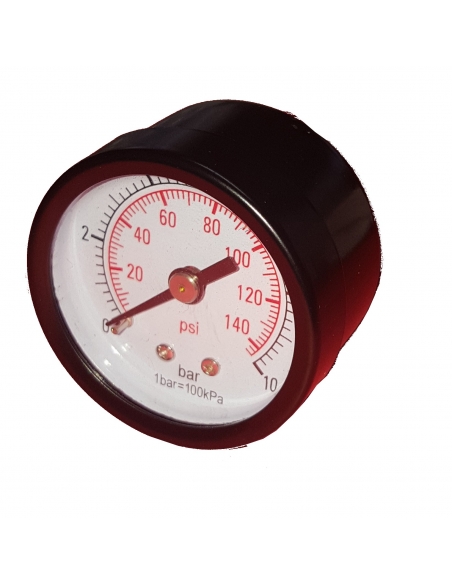

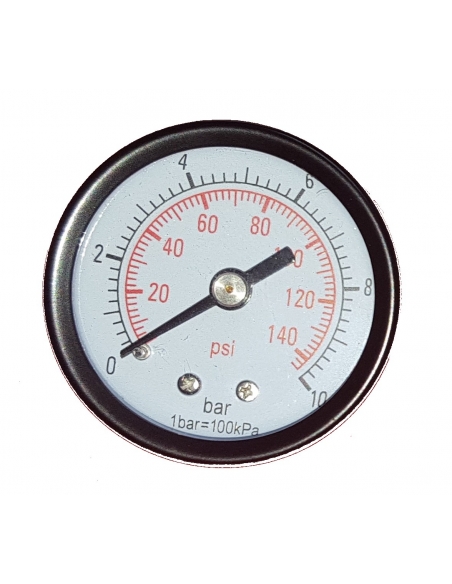

Pressure gauge Ø50 with 1/4" plastic case.
Pressure gauge to control the pressure of the machine to be used.

Reference: MP5314012

Logotipo Metal Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pressure gauge to control the pressure of the machine to be used. With plastic box painted in black, diameter 50mm and rear connection with thread in G 1/4". Pressure gauge with tubular spring type Bourdon with internal mechanisms made of brass and bronze, metal dial and with graduation in bar and psi.

This type of pressure gauge built according to EN837-1 and equipped with the Bourdon type tubular spring system, offers us an accurate measurement.

Technical data:

  • Provider: Metal Work
  • Reference: MP5314012
  • Field of application: For liquid and gaseous media.
  • Diameter: 50mm.
  • Measuring range: 0... 10 bars.
  • Connection: Rear G 1/4".
  • Measuring element: Tubular mule type Bourdon.
  • Element of contact with the medium: Copper alloy.
  • Case material: Steel painted in black.

For other models or sizes consult.

Dimensiones manómetros neumáticos

For other models or sizes consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.
