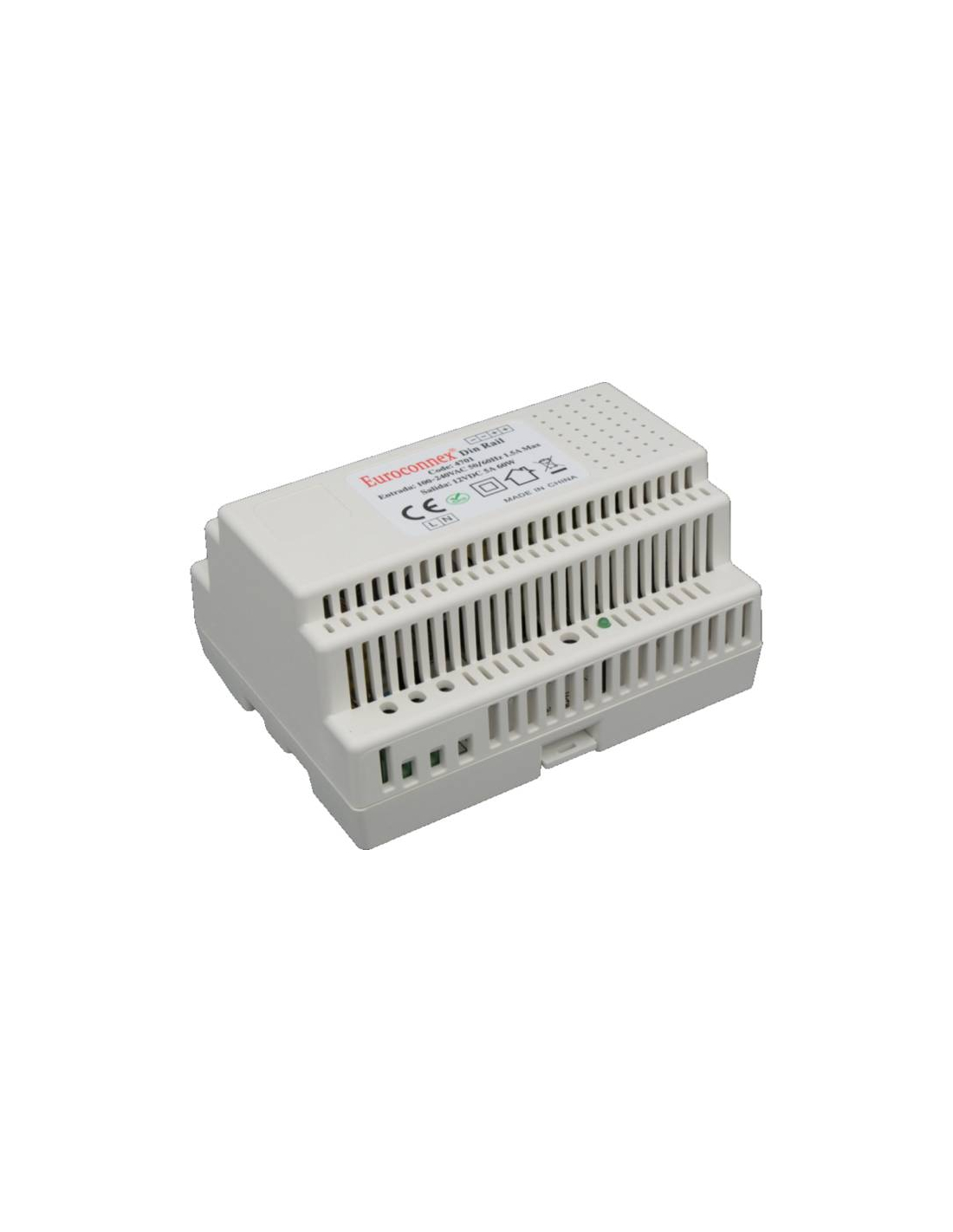

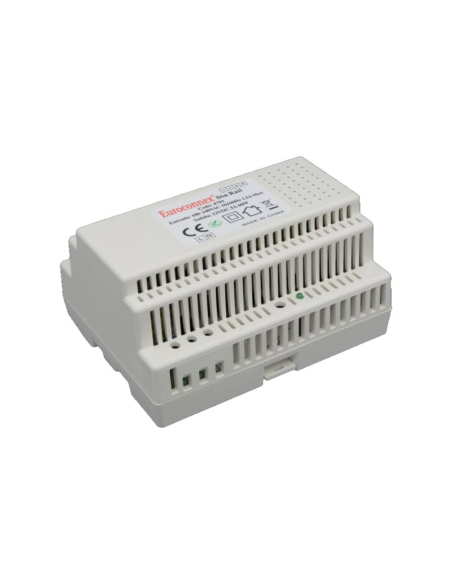

Power supply 24Vdc 2.5A 60W DIN rail

Switching Power supply , input voltage 100 to 240Vac, output voltage 24Vdc and output current 2.5A. DIN rail mounting.

With a high overload capacity and protected against short circuits at the output. Automatic reset against overloads and short circuits. The power supply will cut off current flow upon detecting an overload or short circuit, returning to normal operation when the fault is resolved. If the output voltage exceeds the maximum of the source, it will proceed to cut off the output current flow and self-regulate it.

Technical characteristics:

• Manufacturer/Supplier: Euroconnex
• Reference: 4705
• Operating mode: Switched
• DIN type rail
• Input voltage: 100 - 240Vac
• Input variation range: 90 - 264Vac
• Frequency: 50 - 60Hz
• Frequency variation: 47 - 63Hz
• Input current: 1.4A maximum at any rated input voltage
• Output voltage: 24Vdc (+/- 2%)
• Output current: 2.5A
• Output power: 60W
• Maximum commissioning time: Maximum 3 sec
• Ripple and noise: Below 300mVpp
• Performance: 85%
• Overcurrent and short circuit limitation: Yes, self-resetting
• Working temperature: 0ºC to 40ºC in normal operation or full load
• Relative humidity: 25 - 75% in normal operation or full load
• CE marking
• Compliance with EN60950-1 regulations
• EMI standard EN55022 class B standards

Dimensions:








Material for professional use, install in compliance with the regulations in force at the installation site.
