Power supply linear Input 400Vac Output 24Vdc 12A 500VA

Power supply linear Input 400Vac Output 24Vdc 12A 500VA

Special manufacturing material
€291.20 Tax included

€240.66 tax excl.

Power supply linear 24Vdc 12A 500VA with three-phase 400V ±5Vac input, consisting of three-phase isolating transformer, rectifier and filter (not regulated or stabilized). For power supply of electrical and electronic controls in automation techniques, where a continuous voltage of 24Vdc is required.


Part number: FAT06150440

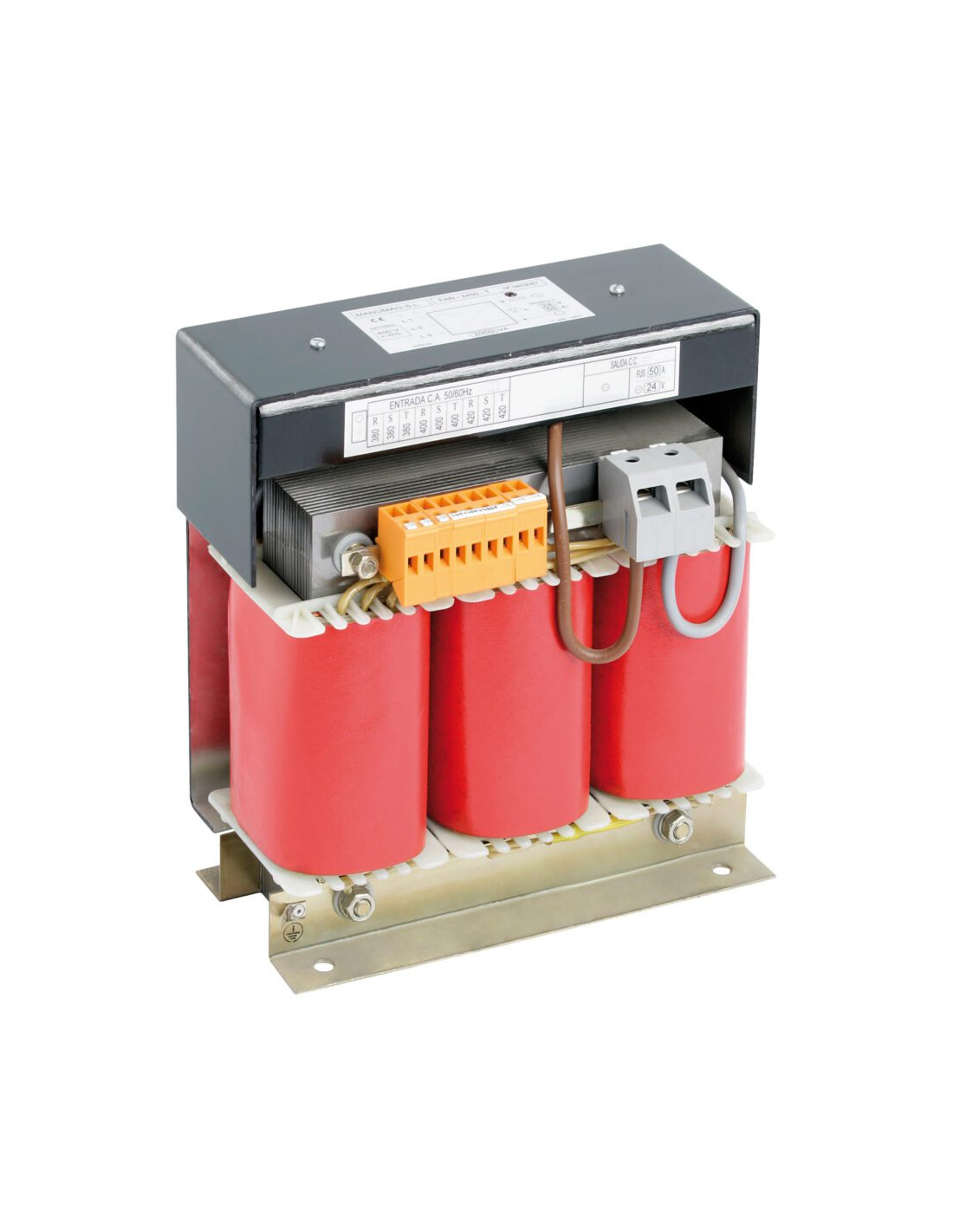

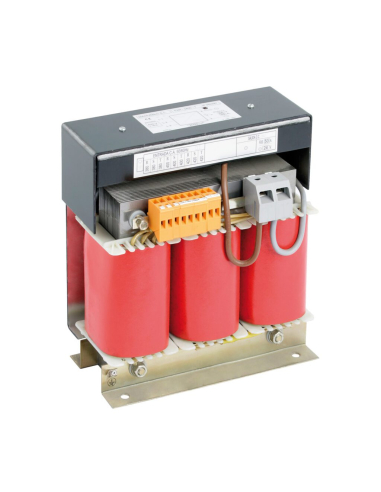

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Power supply linear power supply for industrial use 24Vdc 12A 500VA with three-phase 400V ±5Vac input, consisting of three-phase isolating transformer, rectifier and filter (not regulated or stabilized). For power supply of electrical and electronic controls in automation techniques, where a continuous voltage of 24Vdc is required.


The source consists of a three-phase isolating transformer with its corresponding refrigerated rectification circuit, DC voltage filtering with ripple of less than 5%, and protections with grounding of its metallic parts, maintaining the output DC voltage within the established margins from no-load to full load for the supply of controls and automatisms, with limited variations of the mains voltage. It also has variable sockets for extreme values of the mains voltage. The output circuit has luminous indication by LED and output protection by fuse.


The power supply voltage of the source is 400Vac three-phase, it has 2 additional sockets to be able to adjust the input voltage in ±5Vac.




Technical characteristics:

  • Manufacturer/Supplier: Manumag
  • Part number: FAT06150440
  • Input voltage: 400Vac ±5Vac
  • Input tolerance: Vn ±10%
  • Frequency: 50/60Hz
  • Power: 500VA
  • Output voltage: 24Vdc
  • No load output voltage: 41Vdc
  • Ripple at full load
  • Output range Vn: 20.5Vdc
  • Maximum output current: 12Adc
  • Working range: -25ºC / +60ºC at full load
  • Degree of protection: IP00
  • Test voltage: 4,5KV / 1m (1º-2º)
  • Output indicator: LED
  • Ground protection: Yes
  • Secondary fuse: Models ≤ 16Amp



Circuit diagram:




Dimensions:




Other powers and voltages on request, consult



Attention: This power supply does not incorporate voltage regulator circuit or stabilizer.


Professional use material, install in compliance with the regulations in force at the place of installation.
