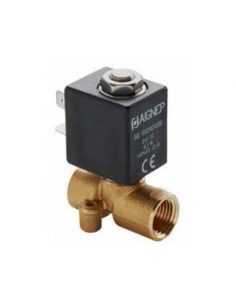

Fluid solenoid valve 1/4 2/2 closed combined drive - ADAJUSA
Fluid solenoid valve 1/4" 2/2 closed combined drive ADAJUSA
Fluid solenoid valve 1/4 2/2 closed 230Vca...
Solenoid valve connector size 30
Fluid solenoid valve 1/4 2/2 closed combined drive - ADAJUSA
Fluid solenoid valve 1/4" 2/2 closed combined drive ADAJUSA
Fluid solenoid valve 1/4 2/2 closed 230Vca combined drive D.10
Solenoid valve connector size 30

Fluid solenoid valve 1/4 2/2 closed 230Vca combined drive D.10

€50.19 Tax included

€41.48 tax excl.

Solenoid valve for home automation, fluids or process control, threaded 1/4"body in brass. Combined drive solenoid valve, 2 closed-way (NC), with 230Vca 21VA coil. Pitch diameter: 10mm

Max. pressure 13.2 bar. Min pressure: 0 bar.

Fluids:

  • Air.
  • Inert gas.
  • Water (max. 75ºC).
  • Mineral oils.
  • Fuel oils.

Esquema neumático electroválvula 2/2 mando directo
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



1/4" combined drive solenoid valve, 2-way, normally closed (NC), with coil at 230Vdc 13.2VA, for use with fluids or air, combined drive. Brass body and coil control in stainless steel.

Pitch diameter: 10mm

The main hole of the valve body is opened by an imbalance between the upper and lower surfaces of the membrane, when the coil is not active there is pressure in the upper chamber of the membrane, while in the lower chamber there is only pressure in the main hole of the valve, keeping it closed. When we give tension to the coil, we set the moving core in motion, opening the piloting hole and discharging the fluid from the upper chamber directly through the center of the membrane. The pressure difference at this time causes it to open the main hole.

These types of valves are prepared to open from 0 bar.

The working pressure ranges are:

  • Minimum pressure differential between inlet and outlet (ΔP bar): 0 bar.
  • Maximum pressure differential between inlet and outlet (ΔP bar): 13.2 bar

The solenoid valve is normally closed, that is, without tension in the coil, the fluid or air will be interrupted through the solenoid valve, when the coil is put into tension the passage of the fluid or air will occur.

The supply includes:

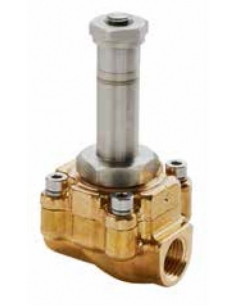

  • Solenoid valve 1/4" 2/2 NC.

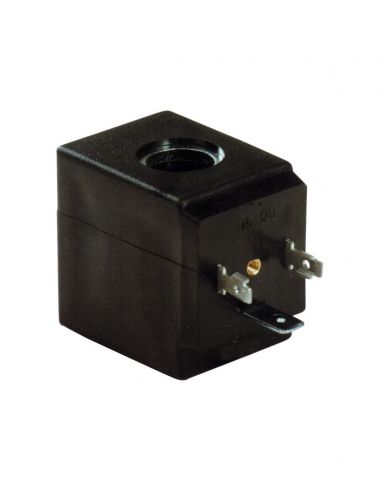

  • Coil 230Vca 21VA size 30.

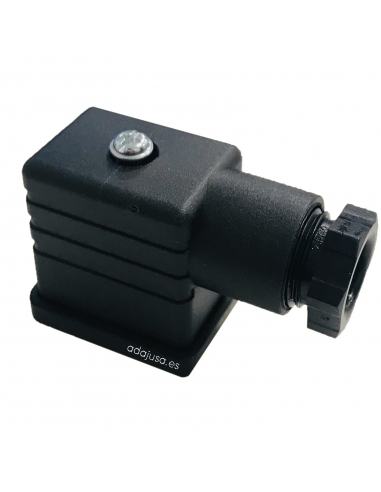

  • Connector size 30.

The fluids with which this solenoid valve can work are:

  • Air.
  • Inert gases.
  • Water (maximum temperature 75ºC).
  • Mineral oils.
  • Diesel.
  • Fuel oil.

Specifications:

  • Manufacturer: Aignep
  • Control type: combined drive.
  • Thread size: 1/4".
  • number of tracks: 2.
  • number of positions: 2.
  • Configuration: 2/2 closed (NC).
  • Coil voltage: 230Vca.
  • Coil power: 21VA.
  • Size: 30.
  • Diameter of the operator shaft (for coil): 13mm.
  • Body: Brass.
  • Guide tube, cores and spring: Inox.
  • Gasket type: NBR.
  • Type of fluids: Pressurized air, water (max. 75ºC), mineral oils, diesel, fuel oil.
  • Maximum pressure: 12.2 bar.
  • ISO 228 size: 1/4".
  • Pitch diameter: 10mm.
  • Maximum fluid viscosity (cSt): 25.
  • Valve coefficient (Kv): 1.58 m³/h.
  • Minimum pressure differential (ΔP bar): 0 bar.
  • Maximum pressure differential (ΔP bar): 13.2 bar.
  • Working temperature of the solenoid valve: -10ºC to +80ºC.
  • Fluid temperature: -10ºC to +90ºC.

Dimensiones electrovalvula mando combinado
Material for professional use, install in compliance with the regulations in force at the place of installation.
