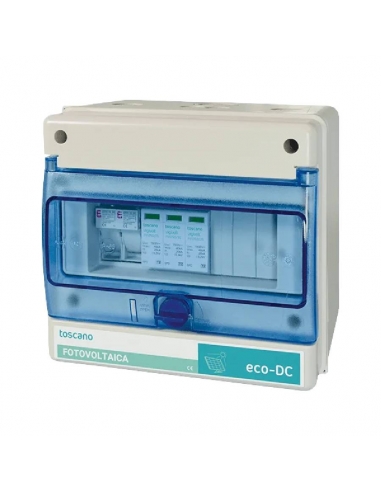

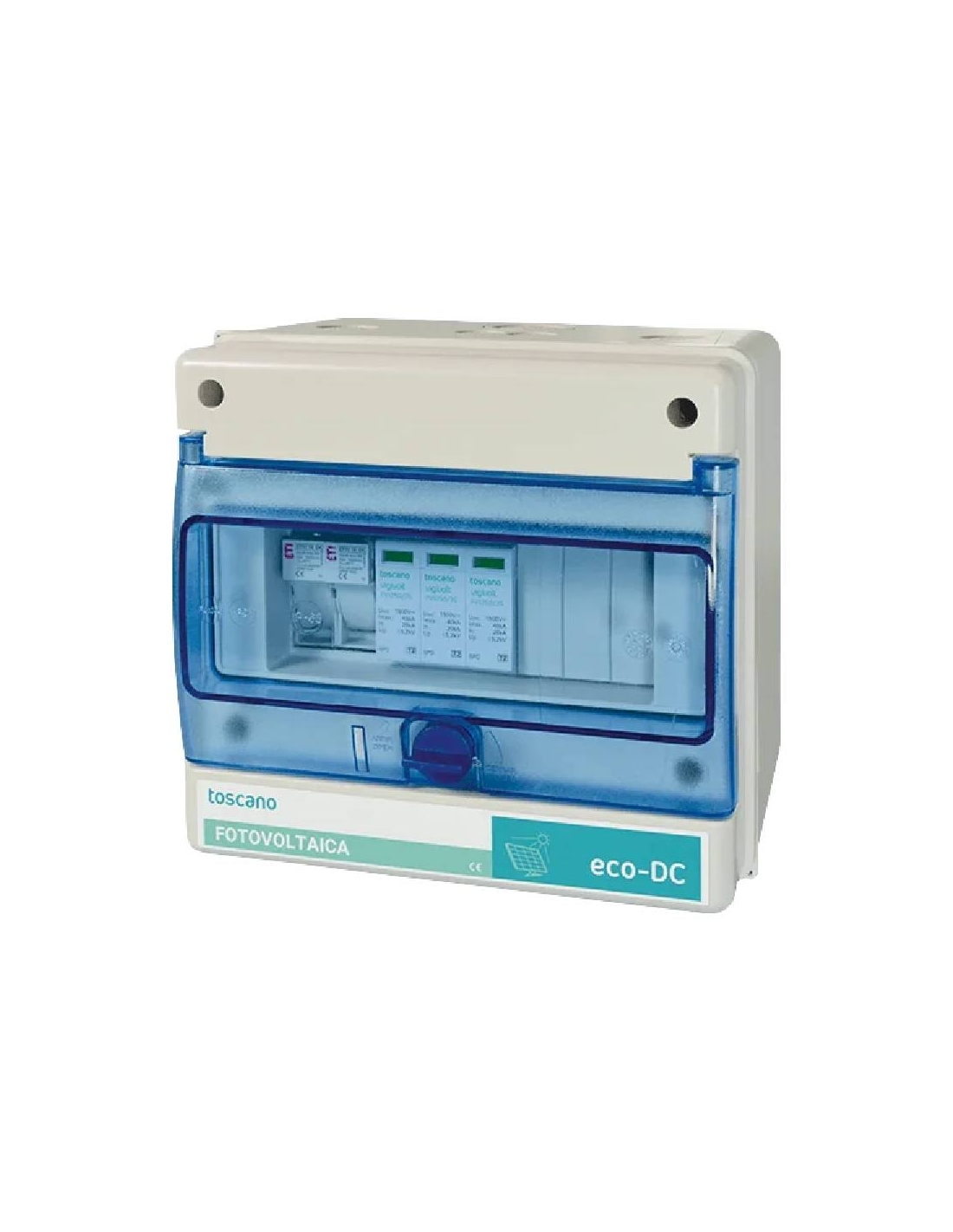

Protection panel ECO-DC-INV 6 strings / 6 MPPT MC4 connectors - TOSCANO

€900.19 Tax included

€743.96 tax excl.

Protection panel for photovoltaic installations, 6 strings / 6 MPPT.

The ECO-DC-INV model incorporates for each string: DC transient overvoltage protection and fuse holder base + 15A fuse. MC4 connectors on inputs and outputs. Maximum 1000VDC. IP65 protection degree.

Part number: ECO-DC6I6F15XFV10M-S




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!


Transient overvoltage protection panel for photovoltaic power generation systems with 6 strings and 6 MPPT regulators used to transform solar radiation into electrical energy.

The ECO-DC-INV panels, already wired and ready for installation, protect the line connecting the photovoltaic panels to the DC/AC inverter of the installation. They maintain the same number of inputs as the number of string outputs. Each of the strings is protected with 1000Vdc fuse holders and 15A fuse and Vdc surge protectors.

The inputs are made with MC4 connectors for a faster and safer connection. This system is designed for inverters with multi-MPP management that incorporate different string inputs. The ECO-DC-INV protectors have been developed to protect against discharges and overvoltages produced by lightning strikes on the DC side of these systems. The protection consists of three stages of varistors equipped with thermal disconnectors that indicate through a window the failure of the element. It has a remote output (indication contact).




Note: Representative diagram for installation with 2 strings and 2 MPPTs


Regulatory standards:

  • EN 20460-7-712
  • EN 60269-6
  • EN 60947-3
  • EN 50539-11




General characteristics:

  • Manufacturer Toscano
  • Order No.: ECO-DC6I6F15XFV10M-S
  • Input-Output: 6 strings / 6 MPPT
  • Rated voltage (Unpv): 1000Vdc
  • Maximum current: 25Adc (per string)
  • Maximum voltage DC+/DC- (Ucpv): 1500Vdc
  • Nominal discharge current 8/20 (In): 20kA
  • Max. discharge current (Imax): 40kA
  • Protection level (Up): ≤ 3,4
  • Response time (ta): ≤ 25nS
  • Connections: Direct to terminals
  • Degree of protection: IP65
  • Operating temperature: -5º...+40oC
  • Dimensions: 362 x 362 x 160mm


Connection:




Note: Representative wiring diagram for installation with 3 strings and 3 MPPT






For further information, you can download the data sheet by clicking on the "Attachments" tab

Material for professional use, install in compliance with the regulations in force at the place of installation.
