Direct starter with three-phase contactor 25A 400Vac

Direct box starter for motors and electric machines, with three-phase contactor of 25A category AC3. For three-phase 400Vac electric motors, with space provided for thermal relay. Small machines, electric motors, water pumps, electrical treatment plants and the like are commonly used for control, requiring the stop and start-up on the machine itself or remotely from it.

Provides space to accommodate a thermal relay for overload protection of the machine or electric motor.

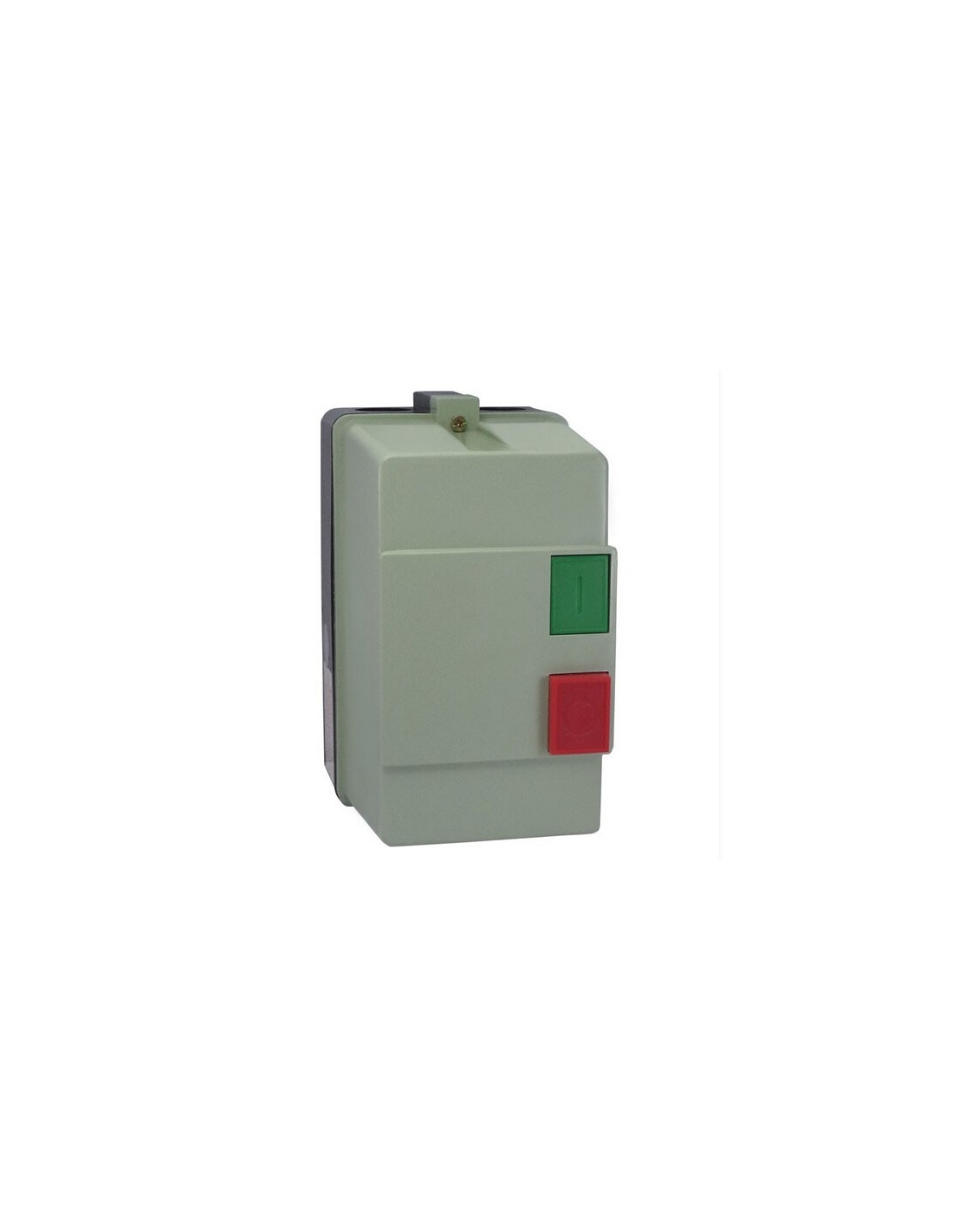

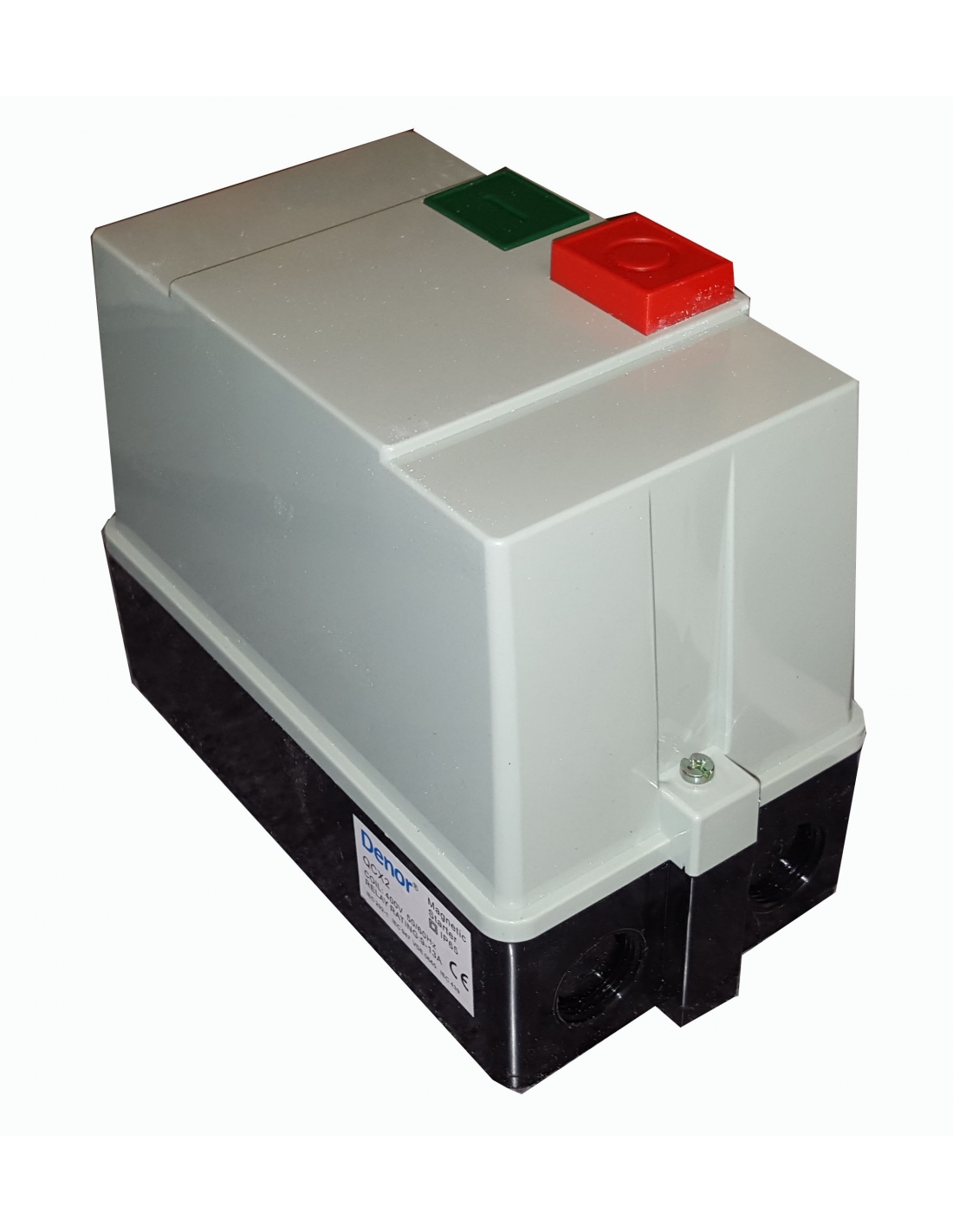

They are of small volume and weight, minimum consumption and high degree of sealing, on it, a push button (green) and a stop button (red) that acts on a thermal relay to stop the machine or motor are incorporated.

The use of this type of starter prevents unsuspecting starts of the machine or electric motor in case of failure of the supply voltage.

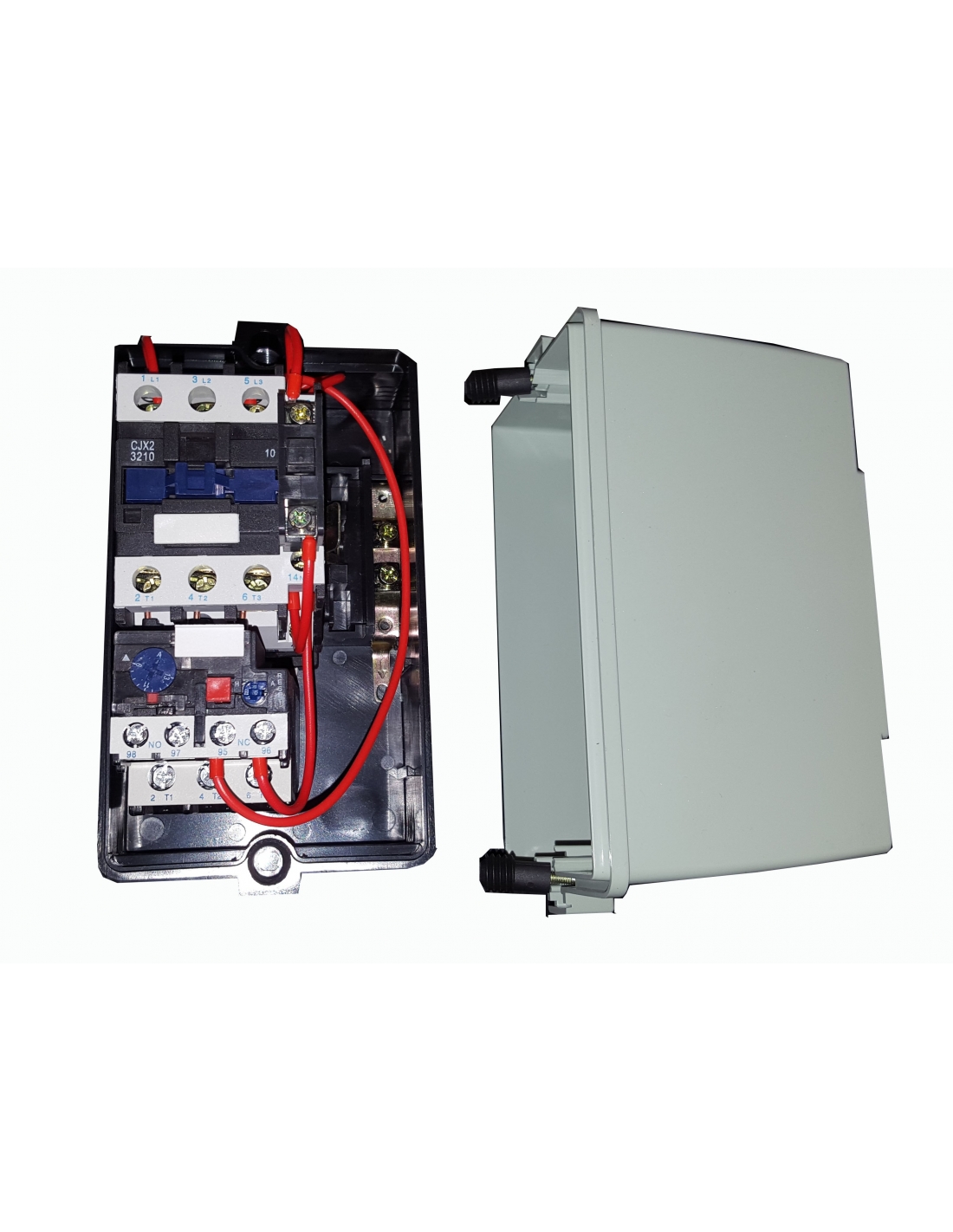

The starter includes:

• 1 Polycarbonate box.
• 1 Pushbutton "I" march, green color.
• 1 Pushbutton "O" stop/reset, red color.
• 1 Three-phase contactor 25A AC3, with 400Vac coil.

specifications:

• Manufacturer/Supplier: Denor
• Ref: QCX2 25A 400Vac
• Working voltage: 400Vac three-phase.
• Maximum ac-3 level current: 25A.
• Maximum three-phase motor power: 11 Kw (15CV).
• Contactor coil voltage: 400Vac.
• Stop button on thermal relay.
• Manufacturing material: polycarbonate.
• Regulations: IEC: 292-1 VDE 0660-104
• Reference: QCX2-25 similar to LE1-D25.

Note: the thermal relay is not included, they have to be ordered separately.
