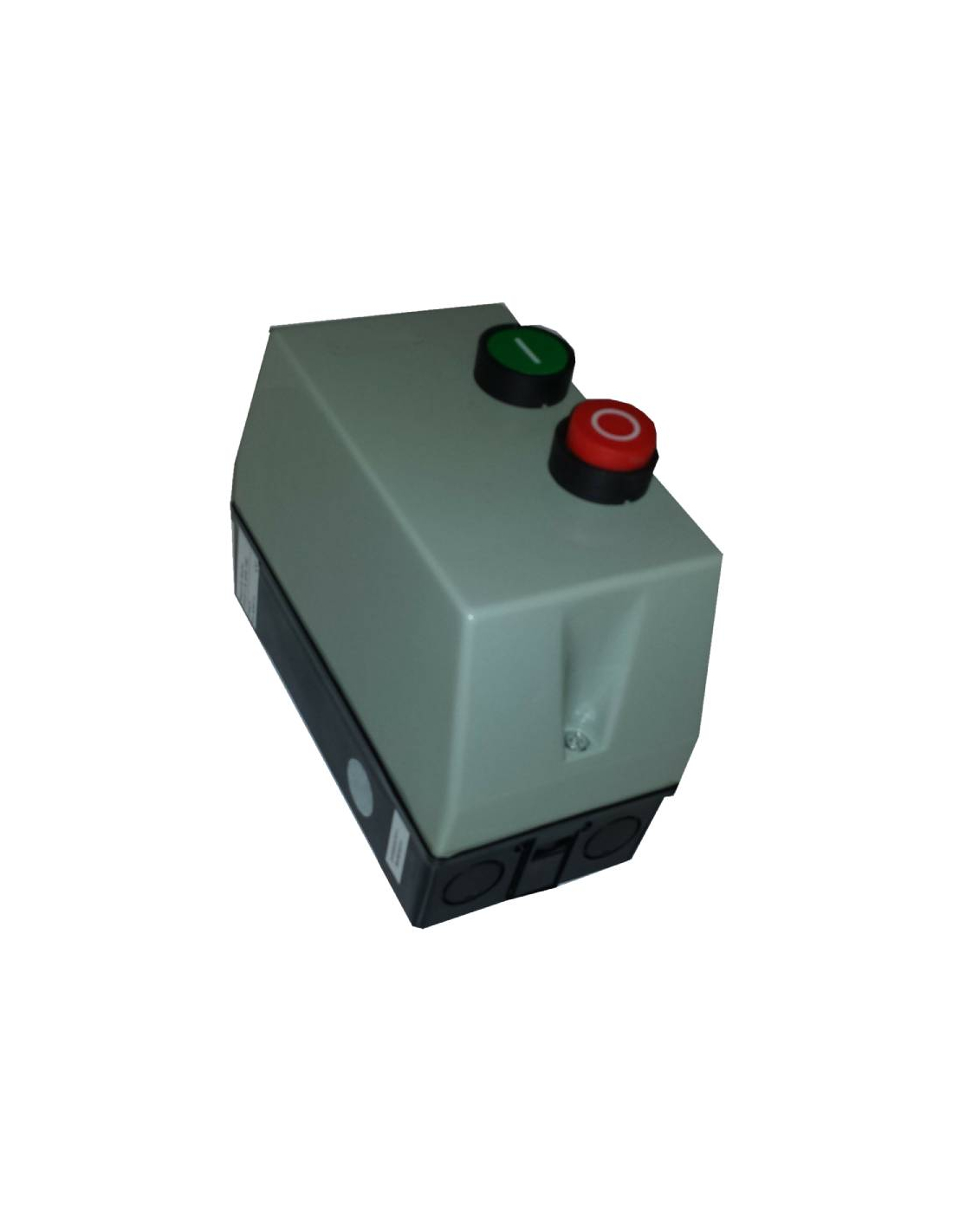

Direct starter with three-phase contactor 18A 230Vac
Direct starter with three-phase contactor 18A 230Vac
Direct starter with three-phase contactor 18A 230Vac
Direct starter with three-phase contactor 18A 230Vac
Direct starter with three-phase contactor 18A 230Vac
Direct starter with three-phase contactor 18A 230Vac

Direct starter with three-phase contactor 18A 230Vac

€29.22 Tax included

€24.15 tax excl.

47Direct boxstarter for electric motor with 18A three-phase contactor, category AC3, 230Vac. Maximum motor power 5,5CV (4Kva). This starter does not include a thermal relay which must be ordered separately.

It can also be used for single phase 230Vac motors.

Thermal relay not included, must be ordered separately .


Part number: QCX2 18A 230Vac


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Direct starter enclosure for electric motors and machines, with 18A three-phase contactor category AC3. For three-phase and single-phase 230Vac electric motors, with space for thermal relay. They are usually used for the control of small machines, electric motors, water pumps, electric purifiers and similar, which require stopping and starting on the machine itself or remotely from it.

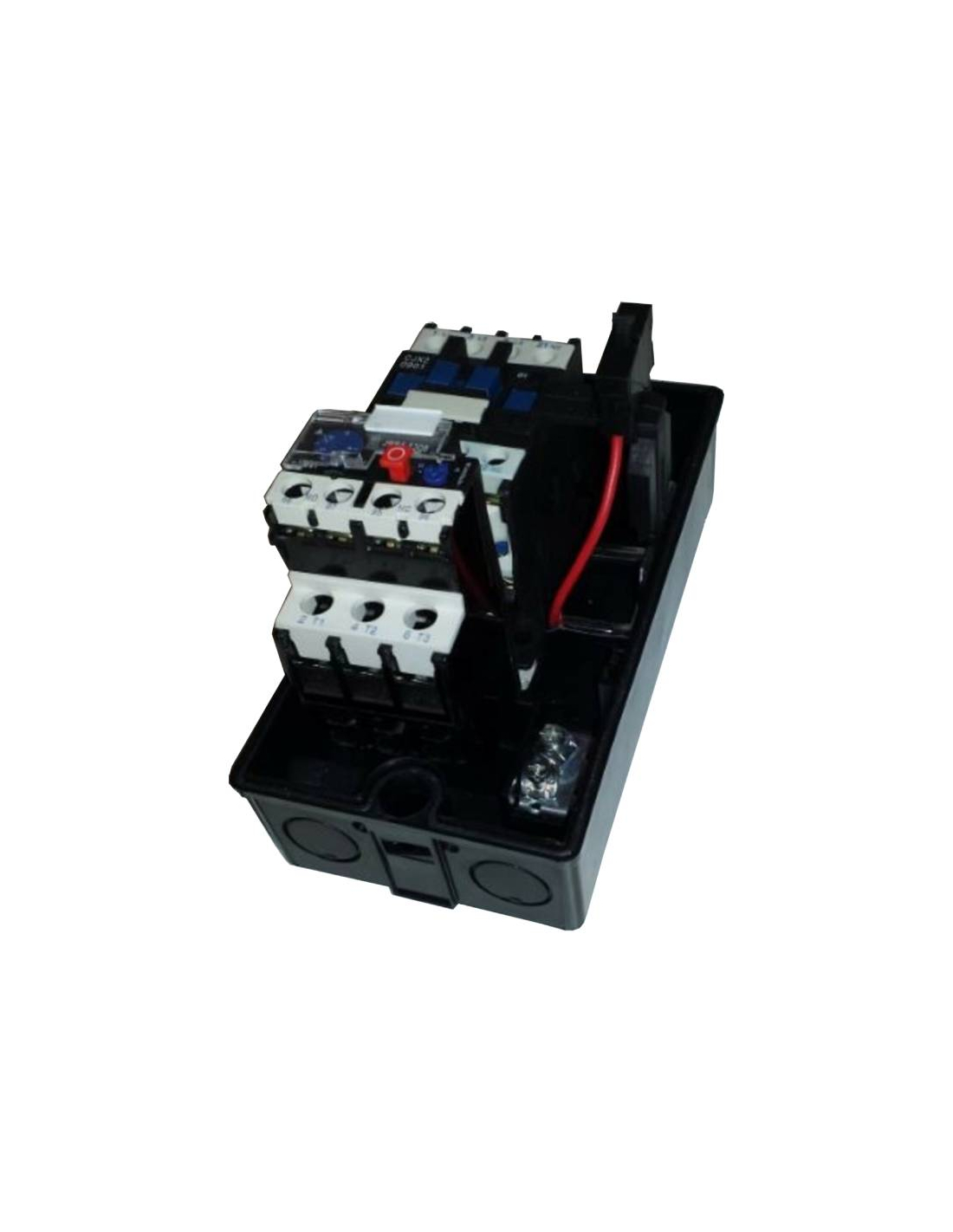

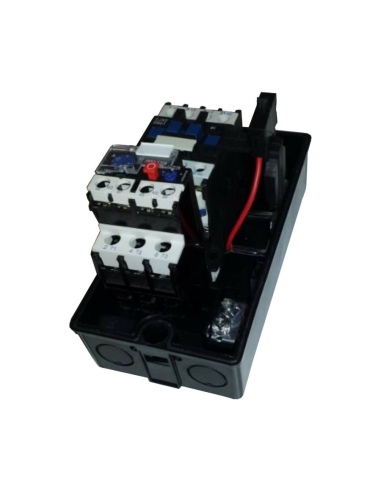

It provides space to house a thermal relay for overload protection of the machine or electric motor.

They are of small volume and weight, minimum consumption and high degree of watertightness, on the same, a push button is incorporated to start (green) and a stop button (red) that acts on a thermal relay to stop the machine or motor.

The use of this type of starters avoids instespective starts of the machine or electric motor in case of power failure.

The supply includes:

  • 1 Polycarbonate box.
  • 1 Pushbutton "I" start, green color.
  • 1 Pushbutton "O" stop/reset, red color.
  • 1 Three-phase contactor 18A AC3, with 230Vac coil.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Reference: QCX2 18A 230Vac
  • Working voltage: 230Vac three-phase or single-phase.
  • Maximum current category AC-3: 18A.
  • Maximum three-phase motor power: 4 Kva (5.5CV).
  • Maximum single-phase motor power: 2.2 Kva (3CV).
  • Contactor coil voltage: 230Vac.
  • Stop button on thermal relay.
  • Manufacturing material: polycarbonate.
  • Standards: IEC: 292-1 VDE 0660-104
  • Reference: QCX2-18 similar to LE1-D18.

Note: the thermal relay is not included, it must be ordered separately.

dimensiones caja contactores pequeños

Material for professional use, install in compliance with the regulations in force at the place of installation.
