€4.80 Tax included

€3.97 tax excl.

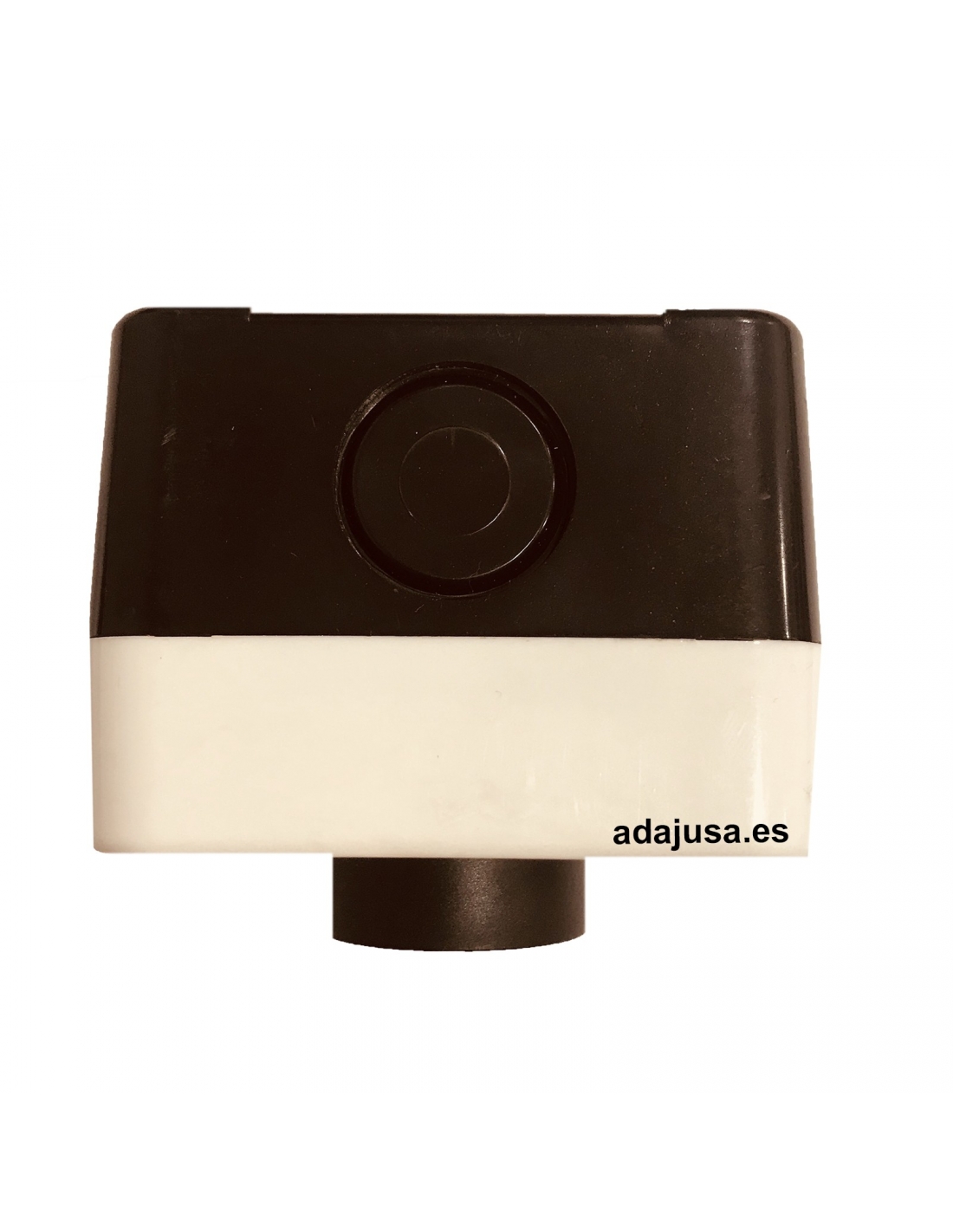

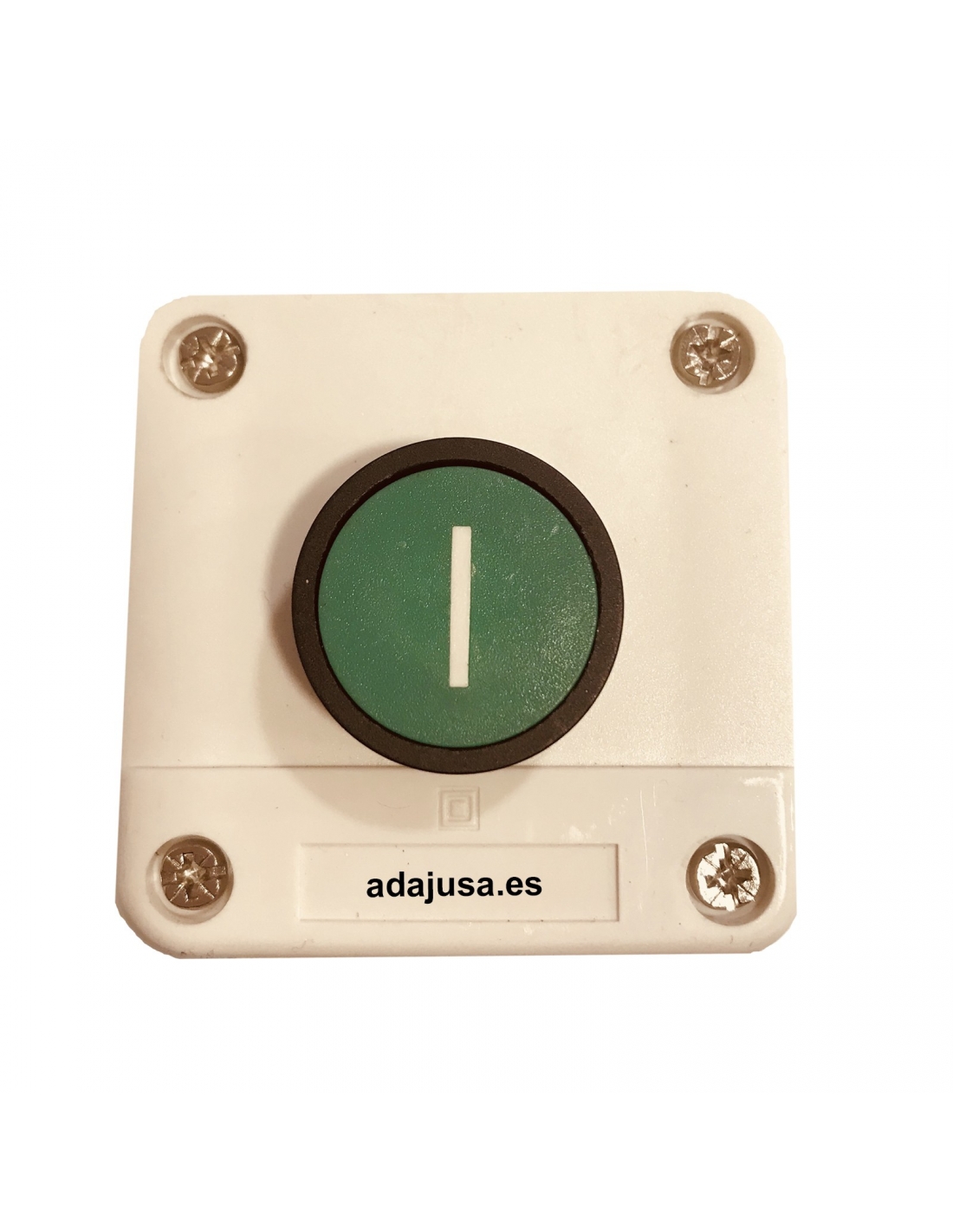

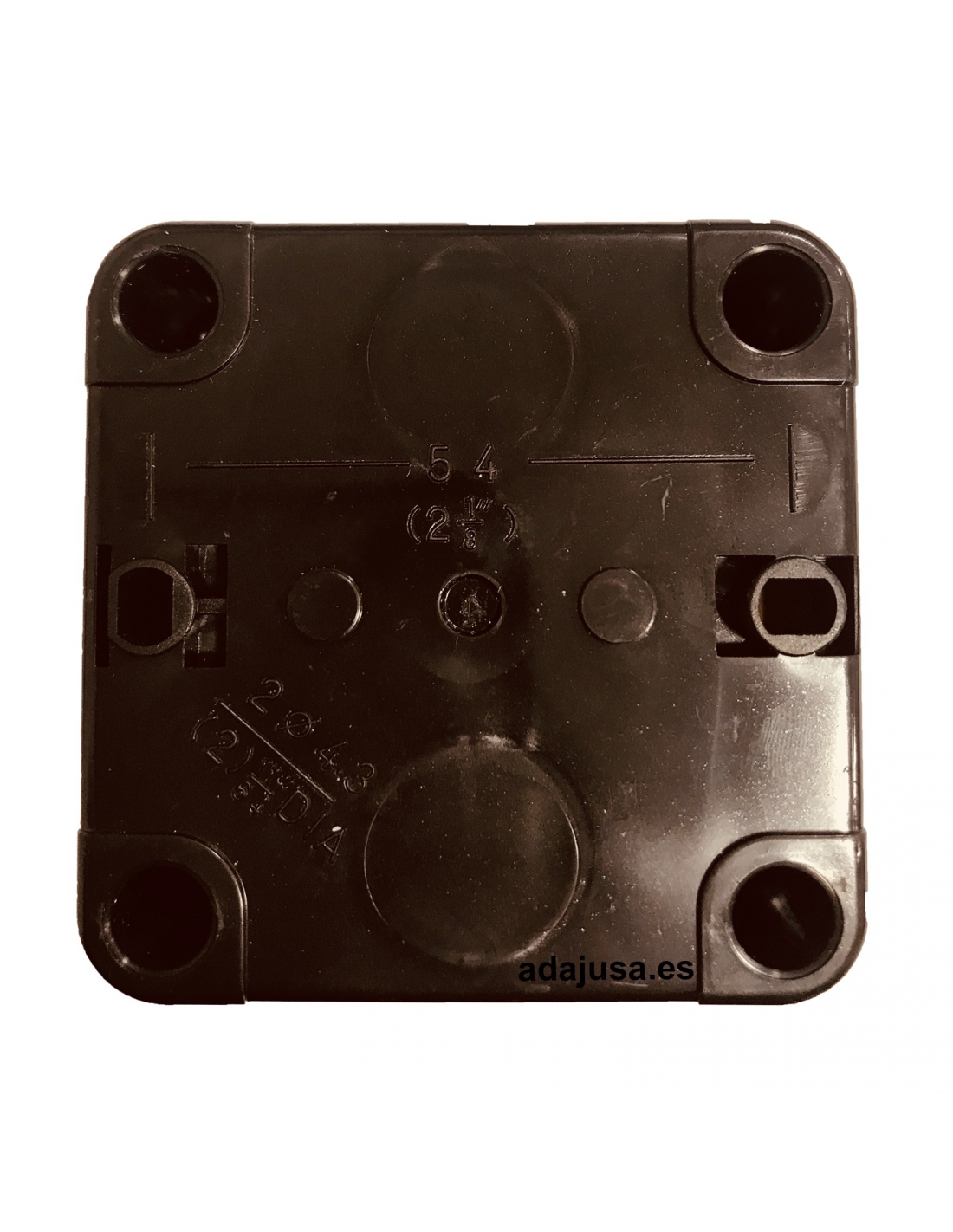

Box with full "I" pushbutton. Box made and pushbutton made of black-white plastic.

The supply includes the full pushbutton, box and an open contact, all assembled.

Ref: XAL-B102

Simbolo pulsador de marcha contacto abierto

No queries yet, leave the first!


Box with green marching button, inscription "I", an open contact (NA). Black and white case.

The supply includes the full pushbutton, box and an open contact, all assembled.

The box supports mounting additional contact, open or closed. The maximum number of contacts per item is 2.

The dimensions of the case are: 68x68x51mm.

Features:

  • Manufacturer/Supplier: Denor
  • Ref: XAL-B102
  • Pushbutton type: Pushbutton (I).
  • Pushbutton color: Green.
  • Black-white plastic case.
  • Box height: 51mm.
  • Contact: 1 NA.
  • Hole diameter: 22mm.
  • Ith nomial working intensity: 10 A.
  • Working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage: 415 V.
  • Contact resistance: 50 m.
  • Degree of protection: IP40.

Dimensiones cajas pulsadores montadas XAL
