2 outlet distributor with quick connectors 20mm tube entry - Aignep

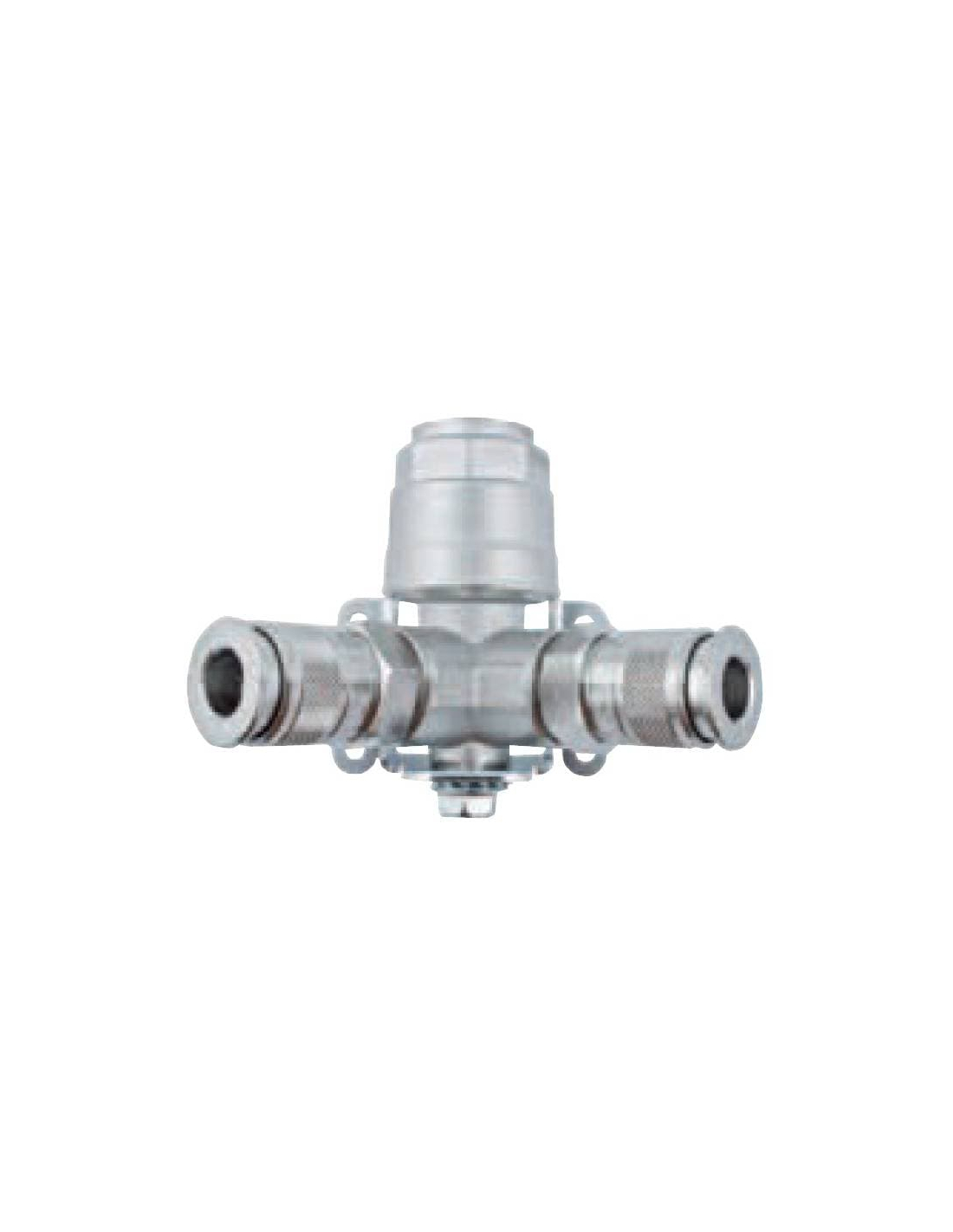

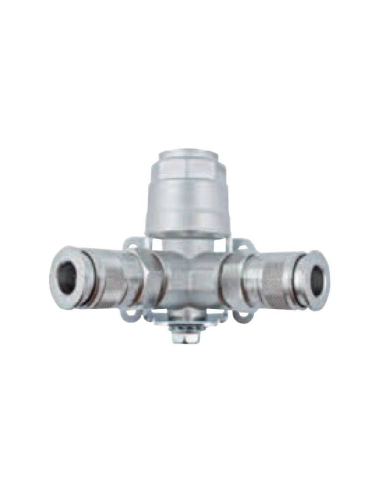

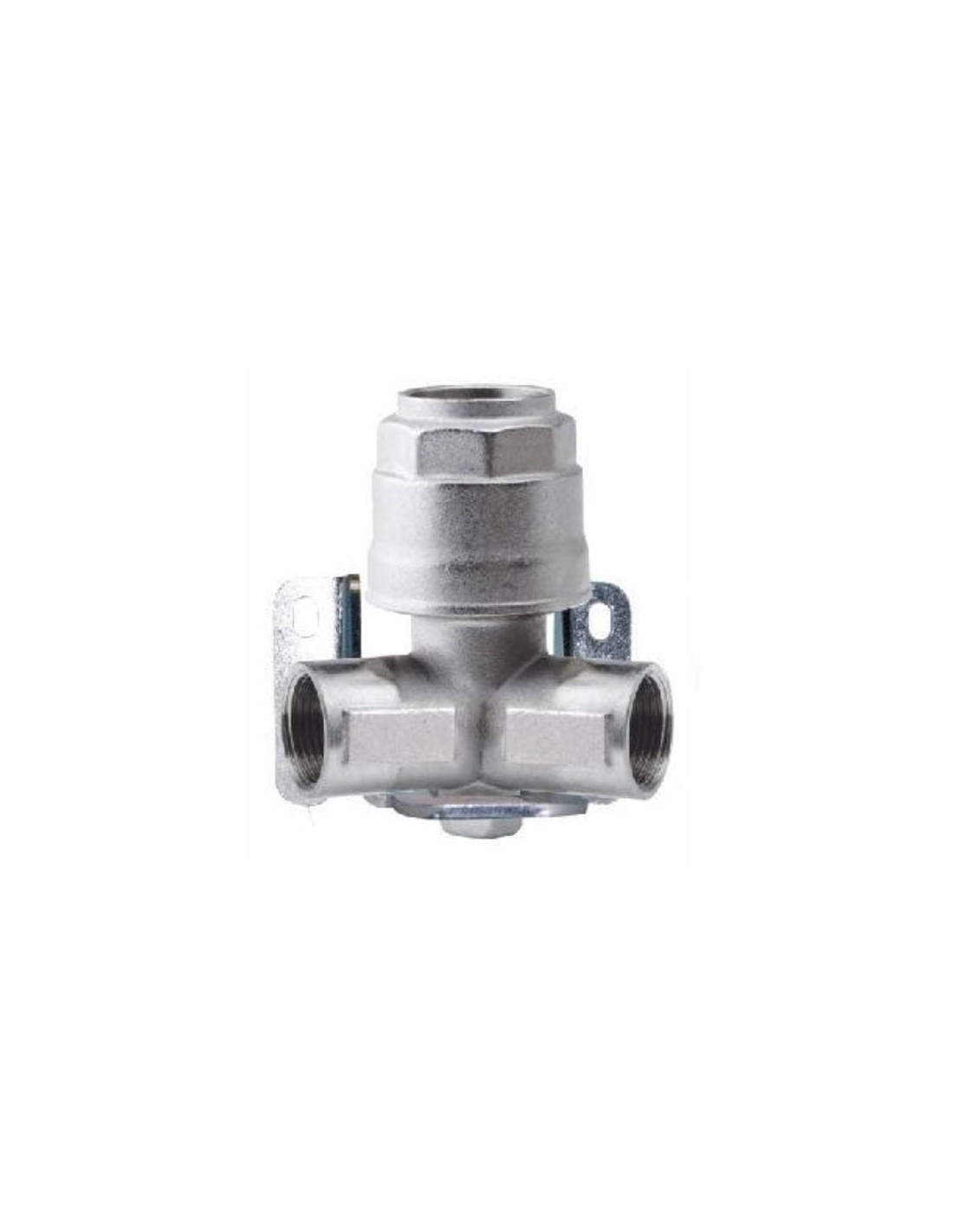

Wall socket or wall support with adjustable or adjustable distributor with two 1/2 cylindrical female thread outlets and inlet for 20mm outer diameter tube. The outlets incorporate two quick plugs with a universal profile, interchangeable with all the different types of adapters approved in the European market, guaranteeing perfect sealing for all of them. This type of plug allows a simple and quick connection and disconnection of pneumatic elements and tools.


This wall socket allows you to install and orient, in a simple and safe way, in the downpipes of a distribution network, the necessary accessories for the simultaneous connection of pneumatic tools required for the operation and equipment of the installation, such as air treatment units, pneumatic tube or hose for the use of compressed air, etc...

Characteristics:

• Manufacturer: Aignep
• Reference: 90602E 20 2
• Series: Infinity
• Inlet tube diameter: 20mm
• Number of distributor outputs: 2
• Outlet thread: Female 1/2 (Gas cylindrical according to ISO 228)
• Quick couplings: Male 1/2 universal profile
• Material: Nickel-plated brass
• Application: Compressed air, vacuum, inert gas (nitrogen, argon)
• Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
• Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
• All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)

Material for professional use, install in compliance with the regulations in force at the installation site.
