Distributor with 2 adjustable outlets, 25mm tube input - Aignep

Name: Distributor with 2 adjustable outlets, 25mm tube input - Aignep
Brand: Aignep
SKU: 906022512
Price: 21.9373 EUR
Availability: PreOrder

€21.94 Tax included

€18.13 tax excl.

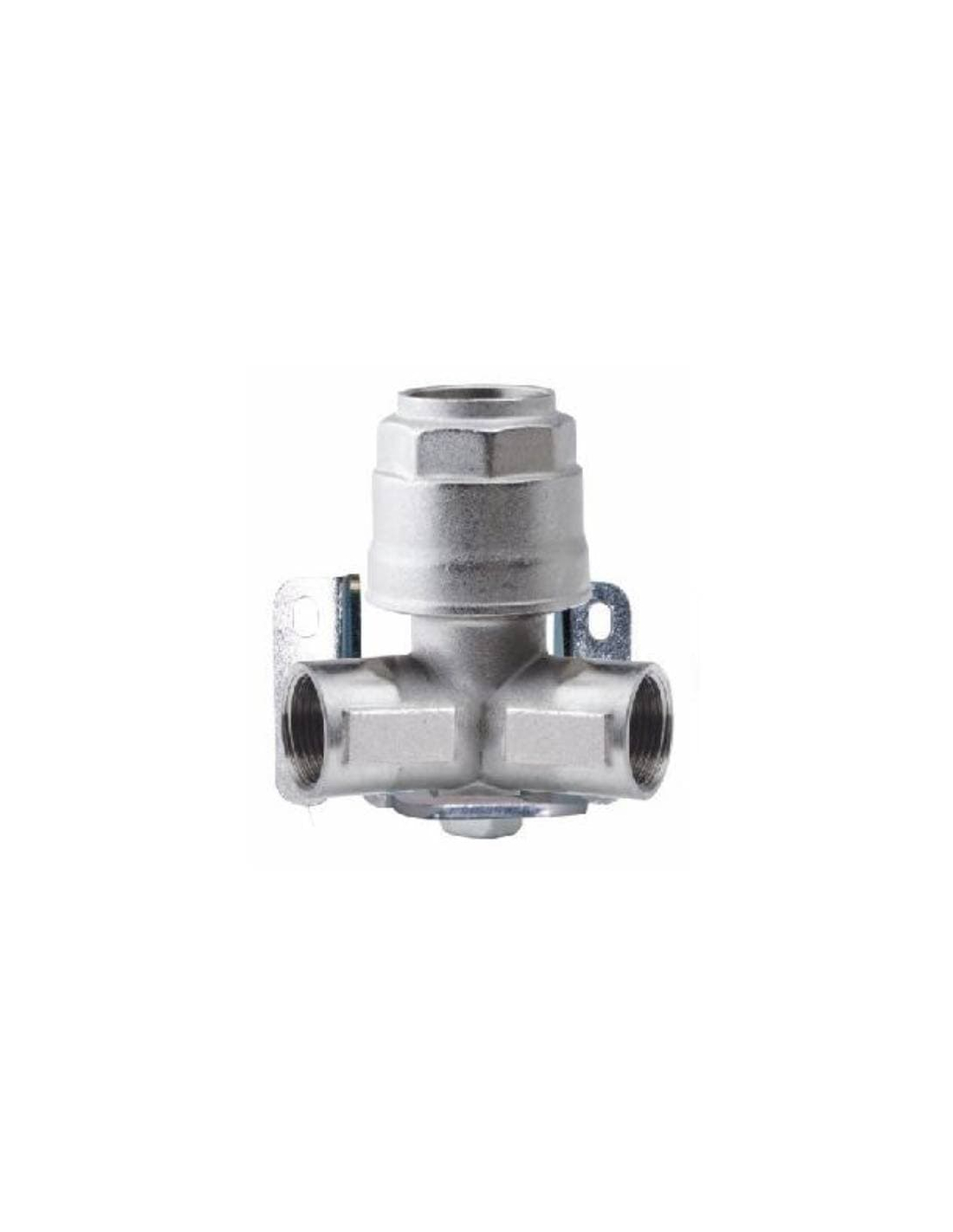

Distributor with two adjustable outlets for wall mounting, with inlet for 25mm outer diameter tube and 1/2 cylindrical female thread outlets. This wall socket allows you to install and orient, in a simple and safe way in the downpipes of a distribution network, the accessories necessary for the connection of machinery or pneumatic tools required to facilitate the efficient distribution of compressed air in the facilities.

It allows you to orient or adjust the output sockets depending on the needs of the installation.

Reference: 90602 25 1/2

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Wall socket or wall support with orientable or adjustable distributor with two 1/2 cylindrical female thread outlets and inlet for 25mm outer diameter tube. This wall socket allows you to install and orient, in a simple and safe way, in the downpipes of a distribution network, the necessary accessories for the simultaneous connection of pneumatic tools required for the operation and equipment of the installation, such as air treatment units, pneumatic tube or hose for the use of compressed air, etc...

Characteristics:

Manufacturer: Aignep
Reference: 90602 25 1/2
Series: Infinity
Number of distributor outputs: 2
Inlet tube diameter: 25mm
Outlet thread: Female 1/2 (Gas cylindrical according to ISO 228)
Material: Nickel-plated brass
Application: Compressed air, vacuum, inert gas (nitrogen, argon)
Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)

Material for professional use, install in compliance with the regulations in force at the installation site.
