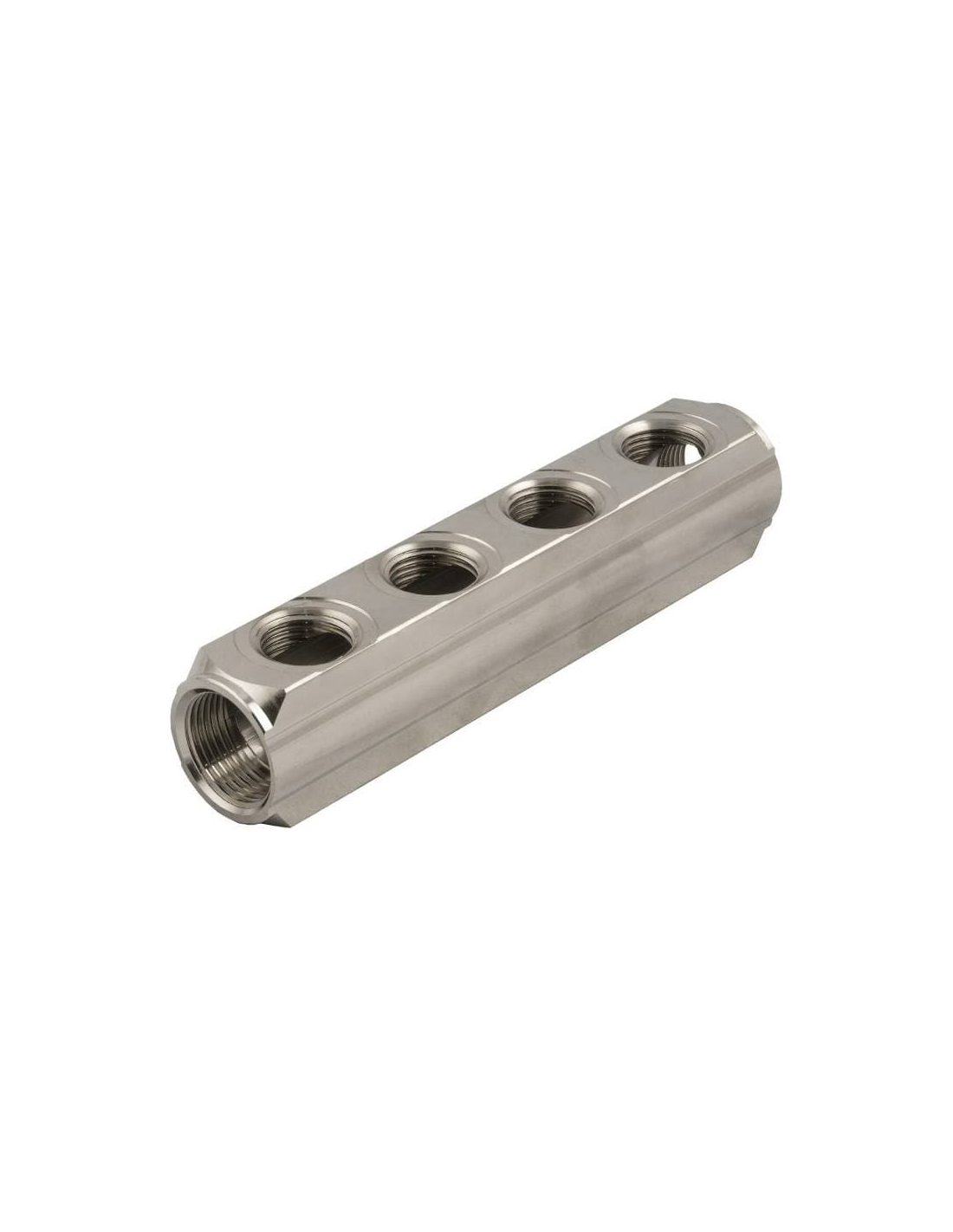

simple power strip 4 outputs - 2 1" female inputs - Aignep
€26.18
Tax included
€21.64 tax excl.
simple strip with four outlets for the distribution of compressed air to various circuits, two 1" cylindrical female thread inputs and four 1/2 cylindrical female thread outlets. This element allows you to easily and safely install the accessories necessary for the connection. of machinery or pneumatic tools required to facilitate the efficient distribution of compressed air in the facilities.
Reference: 90790 1" 1/2
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
simple distributor or distributor with four 1/2 cylindrical female thread outlets and two 1" cylindrical female thread inlets. This element allows you to install, simply and safely in a distribution network, the accessories necessary for the simultaneous connection of pneumatic tools required for the operation and equipment of the installation, such as air treatment units, pneumatic tube or hose for the use of compressed air, etc...
Characteristics:
- Manufacturer: Aignep
- Reference: 90790 1" 1/2
- Series: Infinity
- Number of dealer entries: 2
- Inlet thread: Female 1" (Gas cylindrical according to ISO 228)
- Number of distributor outputs: 4
- Outlet thread: Female 1/2 (Gas cylindrical according to ISO 228)
- Material: Nickel-plated brass
- Application: Compressed air, vacuum, inert gas (nitrogen, argon)
- Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
- Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
- All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)
Material for professional use, install in compliance with the regulations in force at the installation site.
