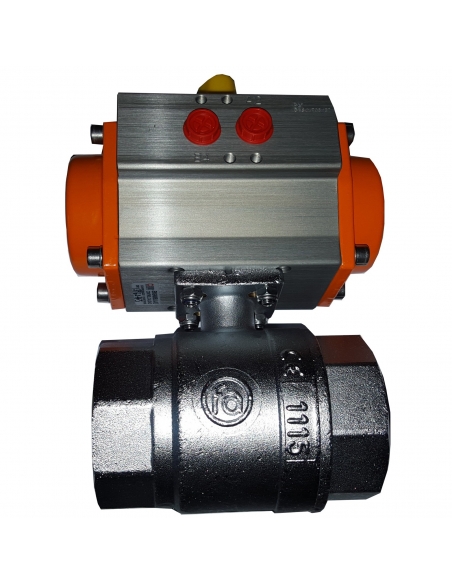

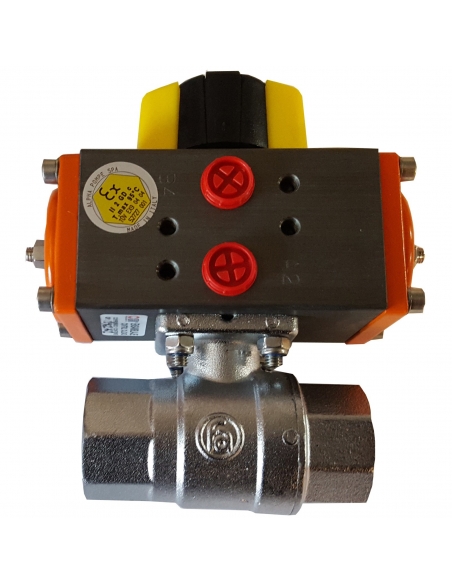

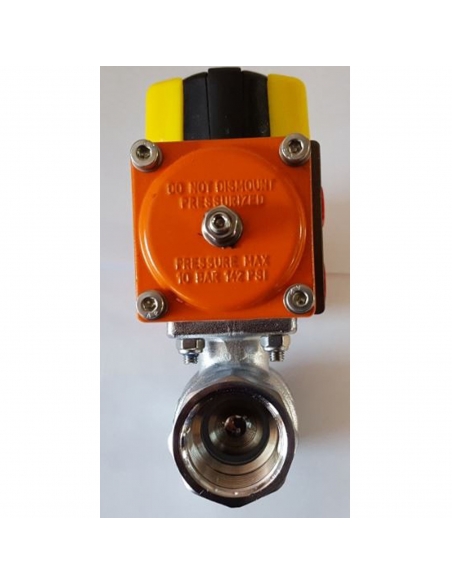

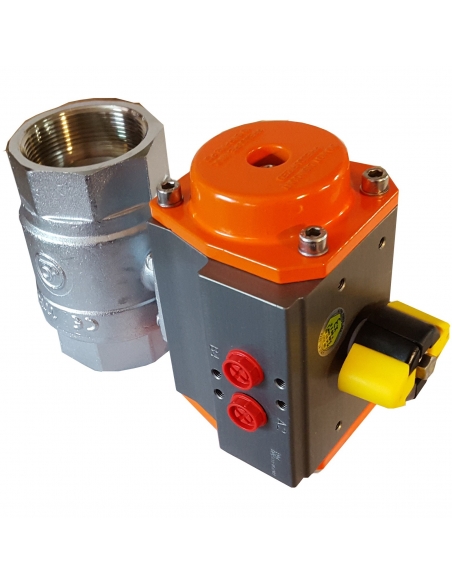

Stainless steel valve 2 2/2-way with pneumatic rotary actuator - Metal Work

€436.56 Tax included

€360.79 tax excl.

Stainless steel valve with 2" dial, 2 ways 2 positions, 2/2, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in stainless steel.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB22IA050063D

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

2" dial valve, made of stainless steel, 2-way 2-position, 2/2, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

Valves with ATEX certification.

Specifications:

Assembly manufacturer: Metal Work.
Manufacturer reference: VB22IA050063D
Actuator type: Ø63 double pneumatic effect (AP63).
Valve type: 2 ways 2 positions (2/2).
Thread type: G 2" female.
Valve body: AISI 316 stainless steel
Dial: Stainless steel
Joints: PTFE.
Nominal pressure PN: 40 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Dimensiones valvulas con actuador 2 vias acero inoxidable

Valvulas rotatorias con actuador neumático 2 vias dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.
