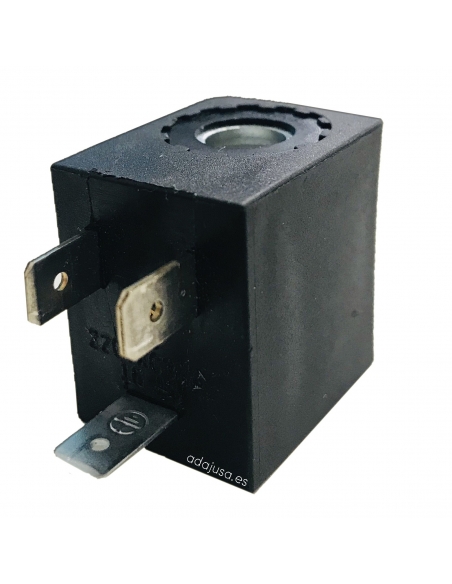

Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work

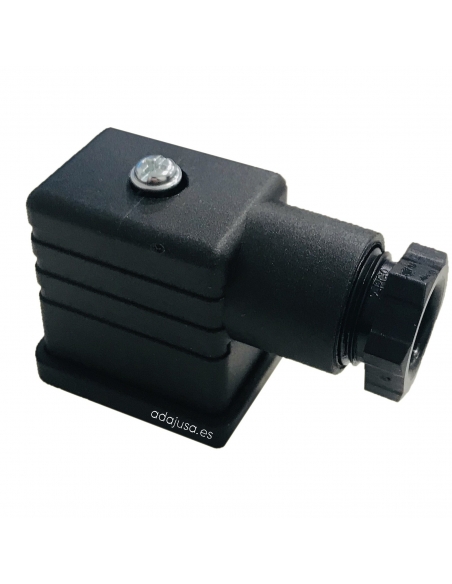

Solenoid valve connector size 22

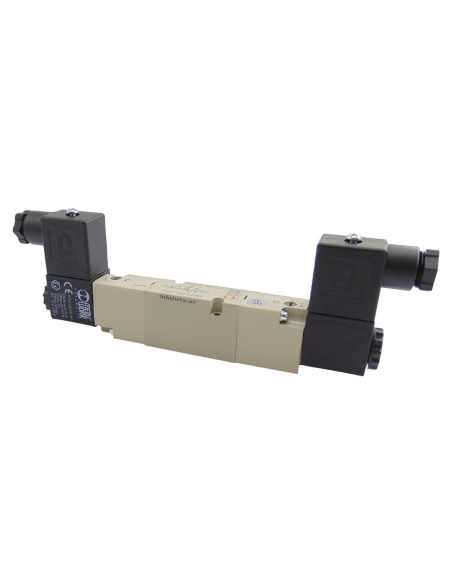

Solenoid valve 5/2 bistable 230 Vac series 70 on base - Metal Work

€102.41 Tax included

€84.64 tax excl.

Solenoid valve on base plate 5/2 bistable series 70. With 230 Vac connector and coil



Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Pneumatic solenoid valve 5/2 bistable series 70 on plate. With 230Vac 3.5VA connector and coil

The supply includes:
  • Solenoid valve 5/2 bistable
  • 2 Coils 230Vac 3.5VA
  • 2 Connectors 22 mm
Features:
  • Manufacturer: Metal Work
  • Reference: 7011021200 - SOV B5 SOB OO
  • Pressure (bar): 2.5 +/- 10
  • Minimum pressure (bar): 2.5
  • Operating temperature (ºC): -10 +/- 60
  • Nominal diameter (mm): 5
  • Conductance C (N| /min - bar): 107.69
  • Critical ratio b (bar): 0.29
  • Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
  • Flow at 6 bar ∆P 1 bar (N| /min): 450
  • Monostable TRA/TRR at 6 bar (ms): 15 / 35
  • Tension tolerate (%): -10 +/- 15
  • Insulation class: F 155
  • Maximum torque core coil (Nm): 1
  • Voltage: 220- 240 Vac
  • Power: 3.5 VA



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
