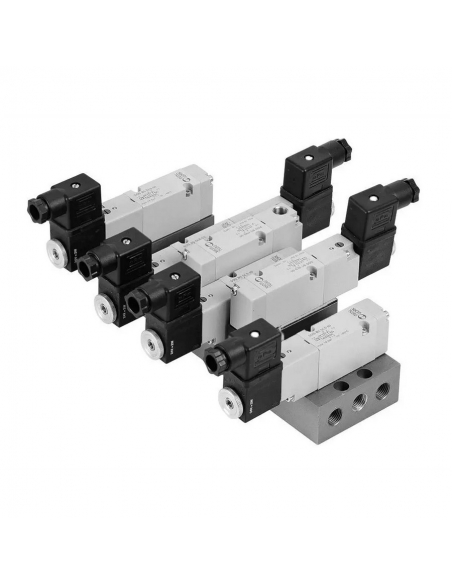

Pneumatic solenoid valve 5/3 assisted centers model exhaust series 70 on base - Metal Work - ADAJUSA
Pneumatic solenoid valve 5/3 assisted exhaust centers series 70 on Metal Work basis - ADAJUSA
Pneumatic solenoid valve 5/3 assisted exhaust centers series 70 on Metal Work basis - ADAJUSA
Pneumatic solenoid valve 5/3 assisted centers model exhaust series 70 on base - Metal Work - ADAJUSA
Pneumatic solenoid valve 5/3 assisted exhaust centers series 70 on Metal Work basis - ADAJUSA
Pneumatic solenoid valve 5/3 assisted exhaust centers series 70 on Metal Work basis - ADAJUSA

Pneumatic solenoid valve 5/3 assisted exhaust centers series 70 on base - Metal Work

€96.98 Tax included

€80.15 tax excl.

Solenoid valve on base plate 5/3 assisted moestable exhaust centers, series 70. Connector and coil not included.

Reference: 7011022500

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

Pneumatic solenoid valve 5/3 assisted moestable exhaust centers, series 70 on plate. Connectors and coils not included.

Characteristics:
  • Manufacturer: Metal Work
  • Reference: 7011022500 - SOV B6 SES OC
  • Pressure (bar): Empty +/- 10
  • Minimum pressure (bar): 2.5
  • Operating temperature (ºC): -10 +/- 60
  • Nominal diameter (mm): 5
  • Conductance C (N| /min - bar): 107.69
  • Critical ratio b (bar): 0.29
  • Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
  • Flow at 6 bar ∆P 1 bar (N| /min): 450
  • Monostable TRA/TRR at 6 bar (ms): 15 / 35
  • Tension tolerate (%): -10 +/- 15
  • Insulation class: F 155
  • Maximum torque core coil (Nm): 1

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
