Pack

solenoid valve 3/8 5 ways bistable without coil - Metal Work - ADAJUSA

Solenoid valve coil 24Vdc 2,5 W T22 Ø8 - Metal Work - ADAJUSA

solenoid valve 3/8 5 ways assisted bistable with coils - Metal Work - ADAJUSA

Solenoid valve 3/8 5 biset assisted pathways 110Vac - Metal Work

Name: Solenoid valve 3/8 5 biset assisted pathways 110Vac - Metal Work
Brand: Metal Work
SKU: PK-385AB110
Price: 125.6343 EUR
Availability: PreOrder

€125.63 Tax included

€103.83 tax excl.

3/8" 5-way bile valve for industrial and general applications. With 110Vac connectors and coils

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

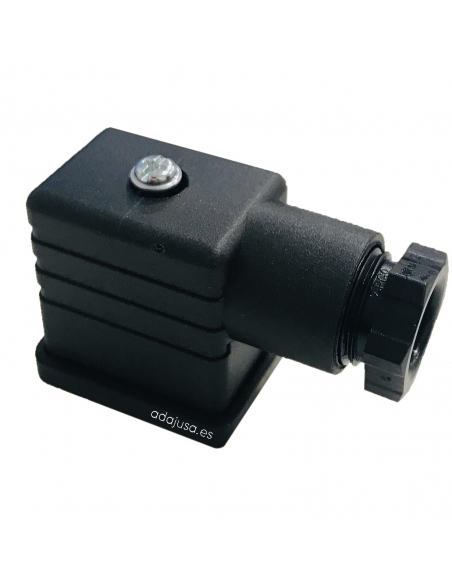

Solenoid valve connector size 22 - Metal Work

€1.36

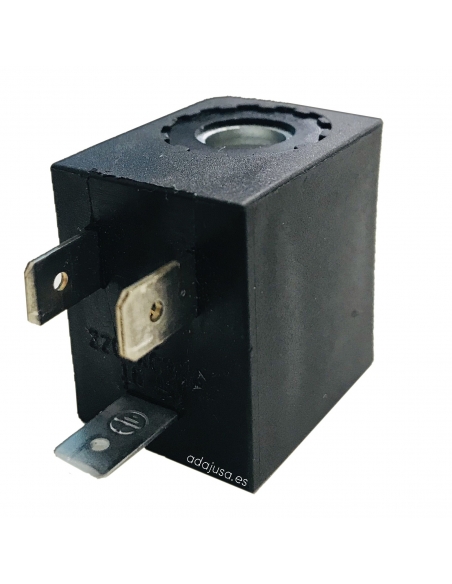

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€8.28

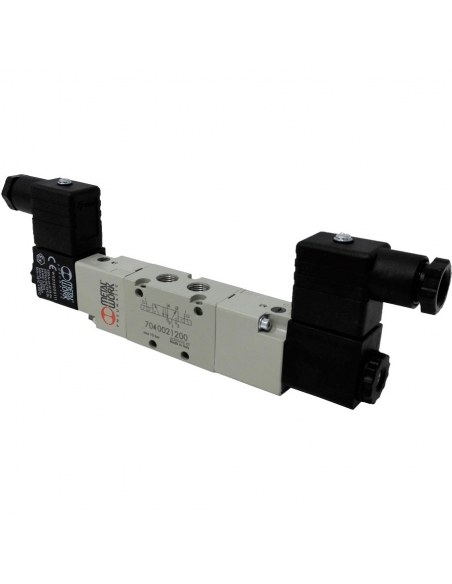

Solenoid valve 3/8 5 ways assisted bistable - Metal Work - ADAJUSA

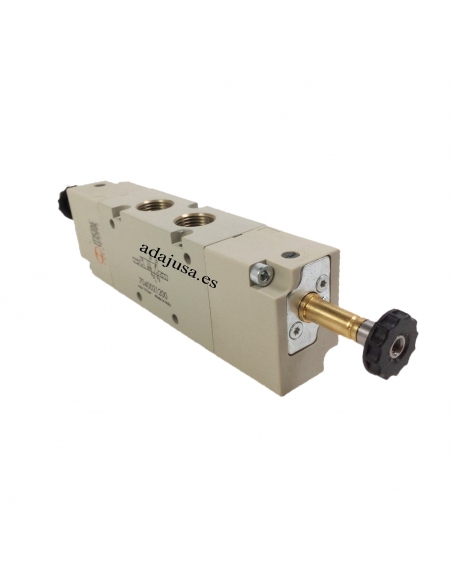

Solenoid valve 3/8 5 ways assisted bistable without coil - Metal Work

€106.37

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic solenoid valve of 3/8 5 ways 2 positions assisted bistable. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet. For general and industrial applications.

The supply includes:

Solenoid valve 3/8 5/2 bistable asisitda
2 Coils 110Vac 3.5VA
2 T22 connectors

Characteristics:

Provider: Metal Work
Solenoid valve reference: 7040021600 - SOV C5 SEB OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Coil voltage: 110 Vac
Power: 3.5 VA
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.
