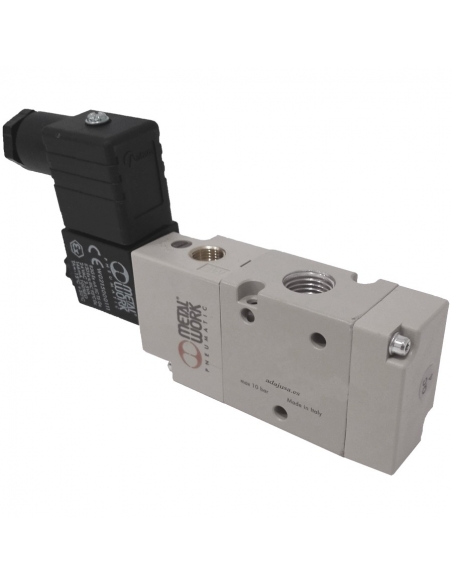

Solenoid valve 3/8 3-way monostable NC with coil - Metal Work

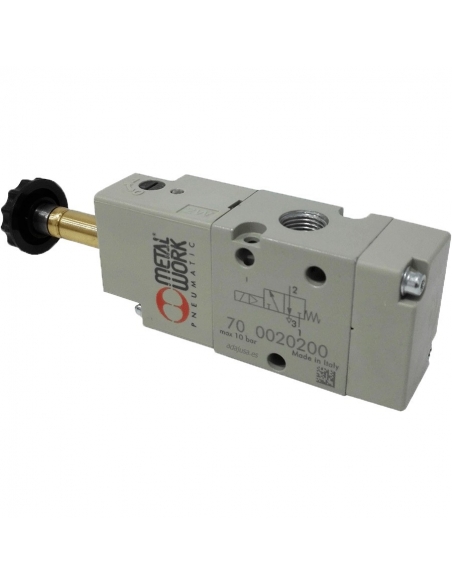

Solenoid valve 3/8 3-way monostable assisted NC - Metal Work - ADAJUSA

Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work

Solenoid valve 3/8 3-way single-stable assisted NC 230 Vac - Metal Work

Name: Solenoid valve 3/8 3-way single-stable assisted NC 230 Vac - Metal Work
Brand: Metal Work
SKU: PK-383ANC230
Price: 91.5728 EUR
Availability: PreOrder

€91.57 Tax included

€75.68 tax excl.

3/8" 5-way monestable, assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. With connector and coils 230Vac

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

€8.28

Solenoid valve connector size 22 - Metal Work

€1.36

Solenoid valve 3/8 3 ways monostable assisted NC - Metal Work

€81.94

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic solenoid valve of 3/8 3 ways 2 positions assisted monostable. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

The supply includes:

Electorvalve 3/8 3/2 assisted monostable NC
Coil 230Vac - 3,50 VA
T22 connector

Features:

Provider: Metal Work
Solenoid valve reference: 7040020500- SOV C3 SES NC
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Coil voltage: 220 Vac - 240 Vac
Power: 3.50 VA
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.
