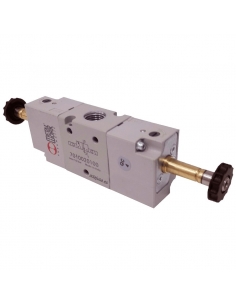

Solenoid valve 3/8 3 ways bistable - Metal Work

Name: Solenoid valve 3/8 3 ways bistable - Metal Work
Brand: Metal Work
SKU: 7040020100
Price: 93.4725 EUR
Availability: PreOrder

€93.47 Tax included

€77.25 tax excl.

3/8" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm.

Reference: 7040020100

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 3/8 3 ways 2 bistable positions. For general and industrial applications. The coil is not included in the supply.

Characteristics:

Provider: Metal Work
Reference: 7040020100- SOV C3 SOB OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

Metal Work

W0215000131

€8.28 (€6.84 tax excl.)

Coil for solenoid valve size 22mm, voltage 220-230VAC., with a consumption of 3.5VA, for cores of 8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core. Reference: W0215000131Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

Metal Work

W0215000101

€8.28 (€6.84 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000101 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

electrovalve 3/8 5-way monostable - Metal Work - ADAJUSA

electrovalve 3/8 5-way monostable - Metal Work - ADAJUSA 2

Solenoid valves 3/8

Solenoid valve 3/8 5 ways monostable without coil - Metal Work

Metal Work

7040021100

€95.59 (€79.00 tax excl.)

3/8" 5-way monestable, closed (NC) pneumatic solenoid valve for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm. Reference: 7040021100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

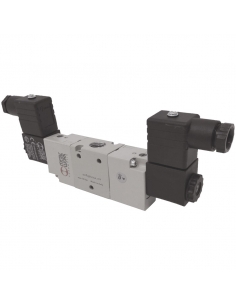

Solenoid valve 3/8 3 ways bistable with coil - Metal Work - ADAJUSA

Solenoid valve 3/8 3 ways bistable with coil - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3 ways bistable 110 Vac- Metal Work

Metal Work

PK-383B110

€112.74 (€93.17 tax excl.)

3/8" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. With 110 Vac connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 3 ways assisted bistable with coil - Metal Work - ADAJUSA

Solenoid valve 3/8 3 ways assisted bistable with coil - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3-way bistable assisted 24 Vdc- Metal Work

Metal Work

PK-383AB24C

€112.74 (€93.17 tax excl.)

Pneumatic solenoid valve of 3/8" 3 bistable assisted tracks, for industrial applications and general use. With 24Vdc connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valve 3/8 5 ways monostable coil 230Vca Mindman S.300 - ADAJUSA

Delivery in 3 days

Solenoid valves 3/8

Solenoid valve 3/8 5-way monostable coil 230Vca - Mindman S.300

Mindman

MVSC3004E11

€42.91 (€35.46 tax excl.)

electrovalve 3/8 5-way monostable 230Vac 3,5VA Metal Work - ADAJUSA

electrovalve 3/8 5-way monostable 230Vac 3,5VA Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5-way monostable 230Vac 3.5VA Metal Work

Metal Work

PK-385M230

€105.22 (€86.96 tax excl.)

3/8" 5-way pneumatic electrovalve, closed (NC), for industrial and general use applications. Coil for electrovalve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. 22mm connector Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

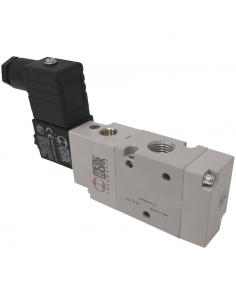

Solenoid valve 3/8 3-way monostable NC with coil - Metal Work
