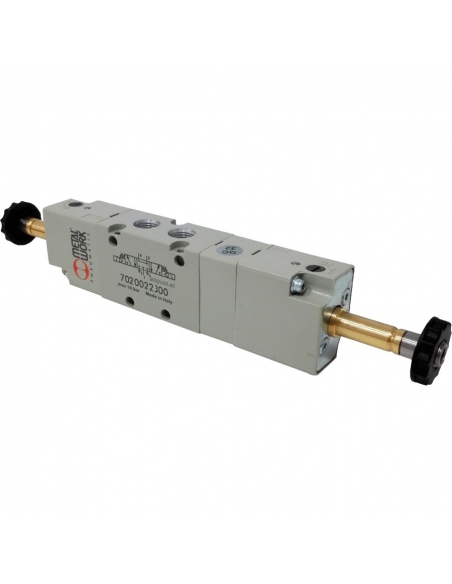

Solenoid valve 1/4 5 vias 3 positions pressure centers - Metal Work

€112.60 Tax included

93.06 tax excl.

7020022300

1/4" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use. Coils not included

Reference: 7020022300

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

1/4" 5-way, 3-position solenoid valves, pressure centers, metal body, for industrial or general pneumatic applications, the most common application is dual-effect cylinder control. Manufactured in Europe by METAL WORK.

specifications:

Manufacturer of the solenoid valve: Metal Work.
Solenoid valve reference: 7020022300- SOV 36 SOS PC
Working pressure of the solenoid valve: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10oC to 60oC.
Nominal diameter: 5mm.
Flow rate at 6 bars p 1 bar: 550 Nl/min.
Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
