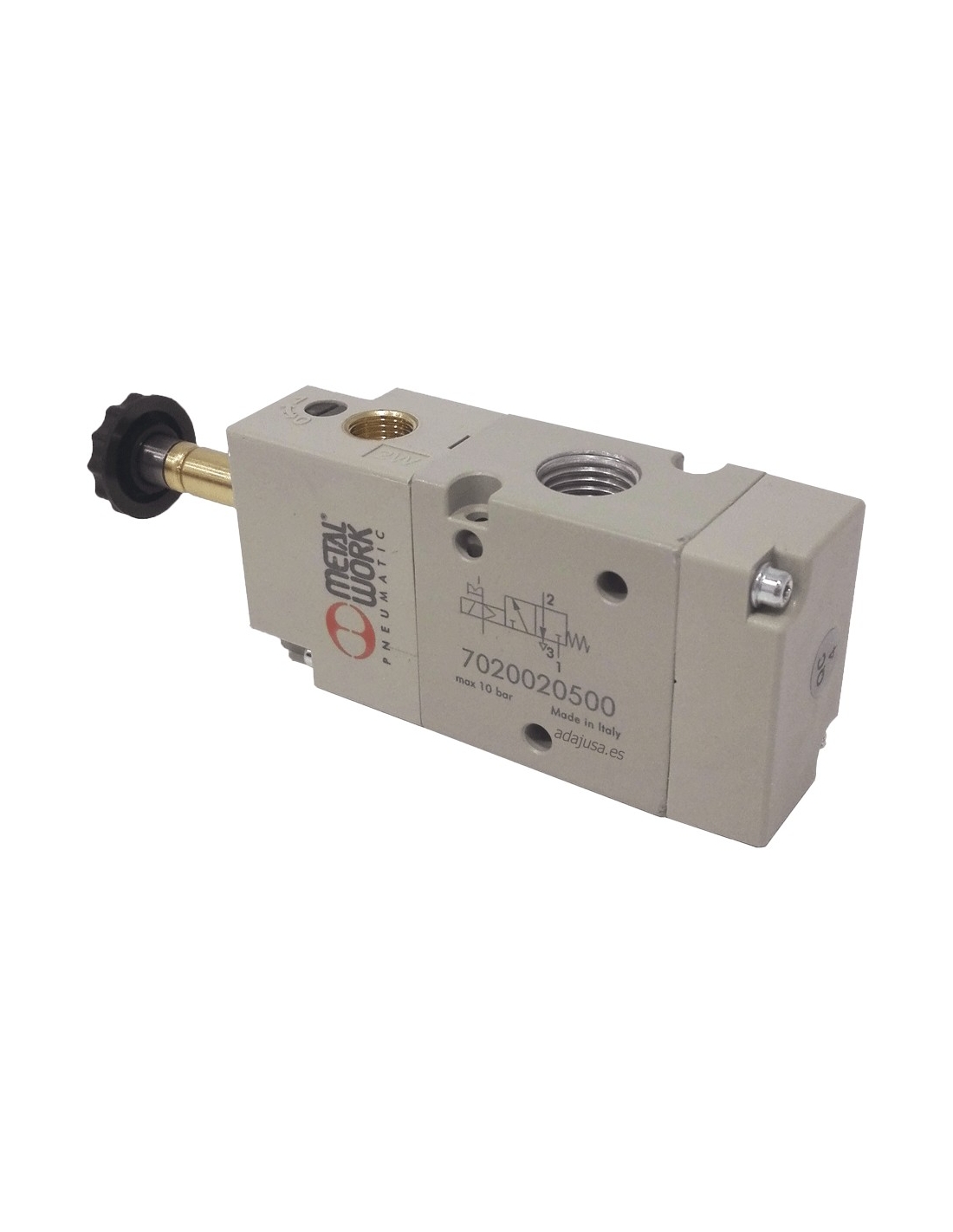

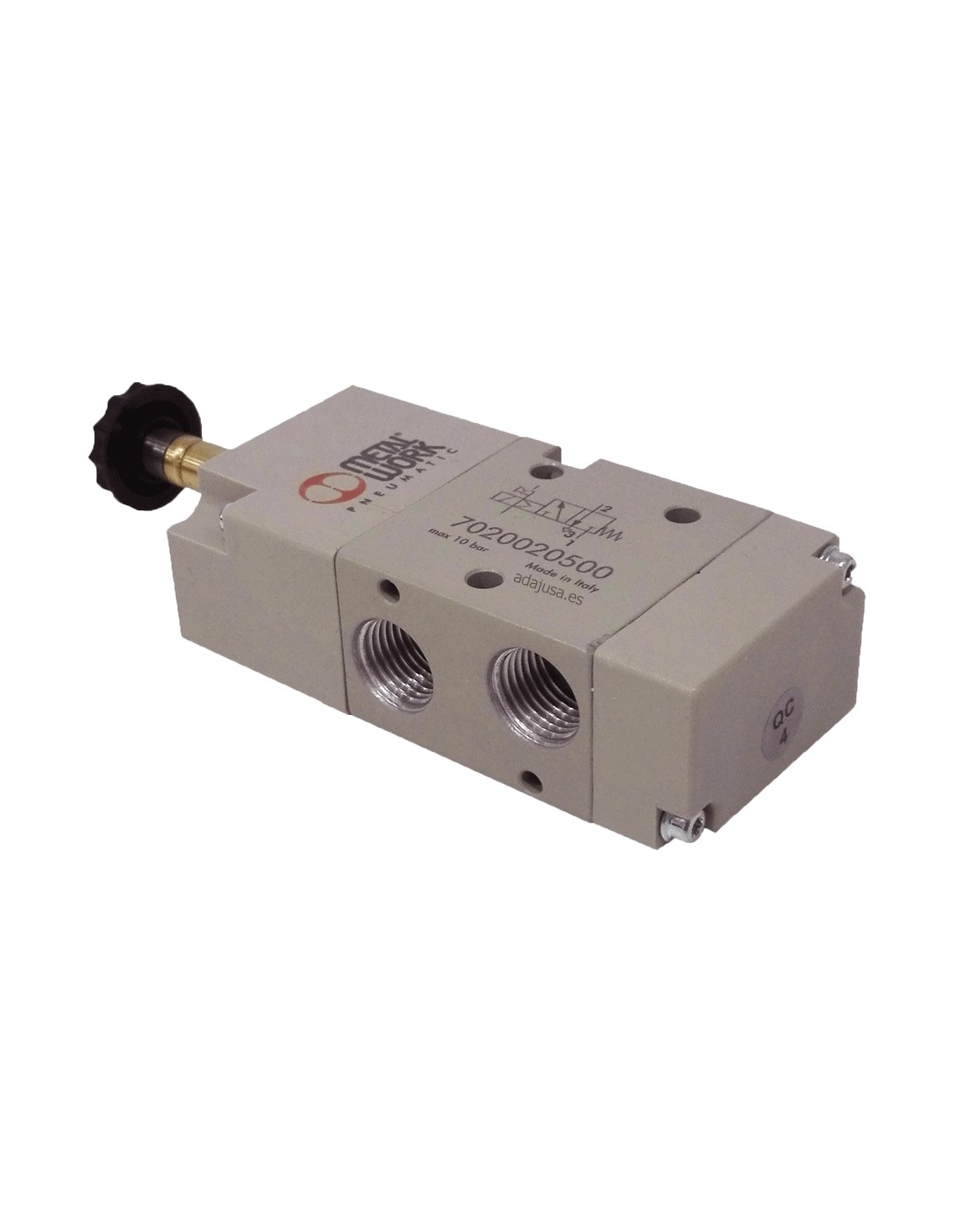

Solenoid valve 1/4 3 ways monostable assisted NC - Metal Work

€65.75 Tax included

54.34 tax excl.

7020020500

Solenoid valve 1/4" 3-way monostable assisted, closed (NC) pneumatic or industrial and general use applications. Supports coils (not included) of size 22mm with core of Ø8mm.

Reference: 7020020500

Esquema electrovalvula 3 vias asistida

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

1/4 3-way monostable assisted pneumatic solenoid valve, usually closed (NC), for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with core of Ø8mm. The supply does not include coil or connector.

Made of aluminum, compact size and high air passage flow, short response time.

This electric valve, when assisted, needs pressure in the pilot intake, which is independent of the valve intakes, this allows to control fluids with very low pressures and even be used for vacuum applications.

Specifications:

Solenoid valve manufacturer: Metal Work.
Manufacturer reference: 7020020500 - SOV 33 SES NC
Type: 1/4-5/2 Assisted Monostable
Thread: G 1/4"
Operating pressure: Empty ÷ 10 bar
Minimum working pressure for the pilot: 2.5 bar
Working temperature: -10°÷ +60°C
Nominal diameter: 5mm.
Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
Capacity at 6 bar ΔP 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0,152kg.
Manual drive: Yes.

Dimensiones electrovalvula 1/4 3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Solenoid valve 1/4 3 monostable roads - Metal Work - ADAJUSA

Solenoid valve 1/4 3 monostable roads - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Electrovanne 1/4 3 voies monostable - Metal Work

€63.02 (€52.08 tax excl.)

1/4" 3-way monostable pneumatic solenoid valve, closed (NC), for industrial applications and for general use. It accepts 22mm size coils (not included) with a Ø8mm core.Reference: 7020020200 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Electrovalve 1/4 3-way bistable - Metal Work - ADAJUSA

Electrovalve 1/4 3-way bistable - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Solenoid valve 1/4 3 ways bistable without coil - Metal Work

€84.29 (€69.66 tax excl.)

1/4" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. Supports 22mm size coils with Ø8mm core. Reference: 7020020100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

solenoid valve 1/4 3 vias monostable assisted 230VAC 3.5VA - Metal Work - ADAJUSA

solenoid valve 1/4 3 vias monostable assisted 230VAC 3.5VA - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/4

Solenoid valve 1/4 3-way monostable assisted 230Vac 3.5W - Metal Work

€75.95 (€62.77 tax excl.)

1/4" 3-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of 8mm. 22mm connector Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Solenoid valve 1/4 3-way monostable normally open - Metal Work - ADAJUSA

Solenoid valves 1/4

Solenoid valve 1/4 3 ways monostable NO - Metal Work

€63.02 (€52.08 tax excl.)

1/4" 3-way monostable, closed (NO) pneumatic solenoid valve for industrial and general use applications. Supports coils (not included) of size 22mm with core of Ø8mm. Reference: 7020020400 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Double solenoid valve 1/4 3/2 ways assisted NC with coils - Metal Work - ADAJUSA

Double solenoid valve 1/4 3/2 ways assisted NC with coils - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/4

Double solenoid valve 1/4 3/2 assisted tracks NC 110Vac - Metal Work

€139.05 (€114.92 tax excl.)

Solenoid valve 1/4 3/2 way double output assisted NC (normally closed). With 110 Vac connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Omega 1/4" Bar Adapter for Metal Work Base - ADAJUSA

Solenoid valves on motherboard

Omega 1/4 Bar Adapter 70 Series - Metal Work

€3.29 (€2.72 tax excl.)

Adapter for omega bar (DIN EN 50022) 1/4" series 70, BASIC and multiple socketsReference: 0226005600 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Solenoid valve 1/4 3 monostable roads - Metal Work - ADAJUSA

Solenoid valve 1/4 3 monostable roads - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Electrovanne 1/4 3 voies monostable - Metal Work

€63.02 (€52.08 tax excl.)

1/4" 3-way monostable pneumatic solenoid valve, closed (NC), for industrial applications and for general use. It accepts 22mm size coils (not included) with a Ø8mm core.Reference: 7020020200 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Solenoid valve 1/4 5/3 assisted bistable exhaust centers - Metal Work - ADAJUSA

Solenoid valves 1/4

Solenoid valve 1/4 5/3 assisted pressure centers - Metal Work

€117.89 (€97.43 tax excl.)

Solenoid valves of 1/4" of 5 ways and 3 positions,assisted, centers in pressure, metal body, for pneumatic applications of industrial or general use. Coils not includedReference: 7020022600 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

solenoid valve 1/4 5 monostable roads - Metal Work - ADAJUSA

solenoid valve 1/4 5 monostable roads - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Electrovalve 1/4 5-way monostable without coil - Metal Work

€66.50 (€54.96 tax excl.)

1/4" 5-way single-track, closed (NC) pneumatic valve for industrial and general use applications. Supports coils of size 22mm with Ø8mm core. Reference: 7020021100 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Electrovalve 1/4 3-way bistable - Metal Work - ADAJUSA

Electrovalve 1/4 3-way bistable - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Solenoid valve 1/4 3 ways bistable without coil - Metal Work

€84.29 (€69.66 tax excl.)

1/4" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. Supports 22mm size coils with Ø8mm core. Reference: 7020020100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double solenoid valve 1/4 3/2 ways NC-NO with coils - Metal Work - ADAJUSA

Double solenoid valve 1/4 3/2 ways NC-NO with coils - Metal Work - ADAJUSA 2

Pack

Solenoid Valves

Double solenoid valve 1/4 3/2 ways NC-NO 24Vac - Metal Work

€133.38 (€110.23 tax excl.)

Solenoid valve 1/4 3/2 way double output. One NC input (normally closed) and the other NO input (normally open). With 24Vac connectors and coilRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double solenoid valve 1/4 3/2 ways NO - Metal Work - ADAJUSA

Solenoid valves 1/4

Double solenoid valve 1/4 3/2 ways NO - Metal Work

€112.98 (€93.37 tax excl.)

Solenoid valve 1/4 3/2 way double outlet NO (normally open). Coils not includedReference: 7020023200Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

ATEX coil for solenoid valve 220Vac size 30 Aignep | ADAJUSA | price

Accessories for solenoid valves

Coil solenoid valve 230Vac 4,8VA size 30mm diameter 9 ATEX - Aignep

€91.04 (€75.24 tax excl.)

ATEX coil for solenoid valve size 30mm, voltage 230Vac, for Ø9mm cores. Coil consumption 4,8VA. Valid for solenoid valves with 9mm actuator core.Reference: SOLX2220A2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.For more information, download the attached datasheet.

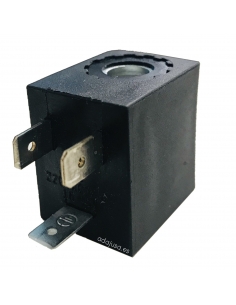

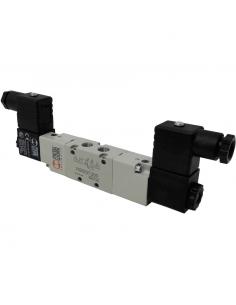

electrovalve 1/4 5-way bistable 24Vcc 2,5W - Metal Work - ADAJUSA

electrovalve 1/4 5-way bistable 24Vcc 2,5W - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/4

Solenoid valve 1/4 5 ways bistable 24Vdc 2W - Metal Work

€108.75 (€89.88 tax excl.)

1/4" 5-way bile valve, closed (NC), for industrial and general applications. Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2W, for cores of Ø8mm. 22mm connector Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Electrovalve 1/4 5-way bistable - Metal Work - ADAJUSA

Electrovalve 1/4 5-way bistable - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Solenoid valve 1/4 5 bistable roads without coils - Metal Work

€88.35 (€73.02 tax excl.)

1/4" 5-way bile valve, closed (NC), for industrial and general applications. Supports coils of size 22mm with core of Ø8mm.Reference: 7020021200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

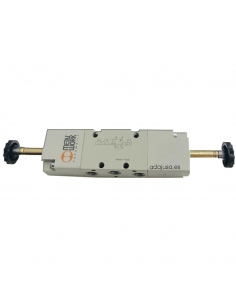

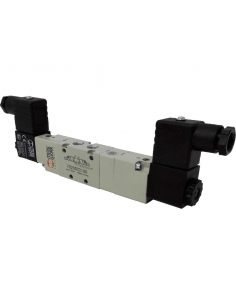

electrovalve 1/4 5/3 via bistable 24Vcc 2,5W - Metal Work - ADAJUSA
