Selector 2 key positions 1 open contact (NA)

Selector 2 key positions 1 open contact (NA)

Selector 2 key positions 1 open contact (NA)

Selector 2 key positions 1 open contact (NA)

Selector 2 key positions (Off) 1 open contact (NA) complete

€3.18 Tax included

€2.63 tax excl.

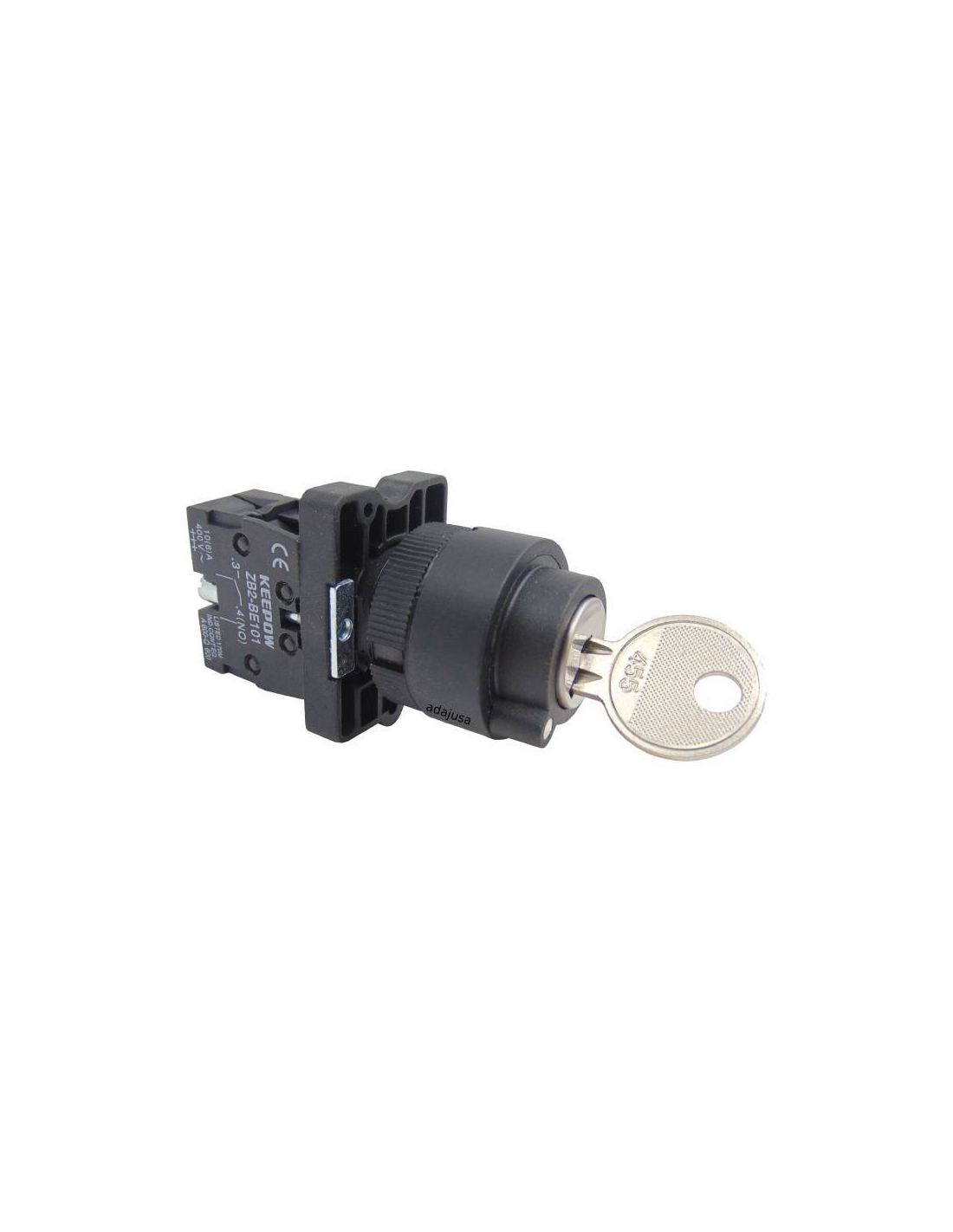

Key-operated selector switch, 2 positions maintained and made of plastic material, 1 open contact (NO).

The delivery includes the complete selector with one open contact and key.

The key can be inserted or removed only in "Off" position.

Part number: NG22-EG21

Esquema selector 2 posicones mantenidas Pictograma llave extraccion solo en off

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

Plastic key-operated selector switch, 2 held positions and open contact (NO), possibility of adding additional contacts. 22mm bore diameter.

The key can only be inserted and extracted in the "Off" position, without activation.

The supply includes the selector complete with an open contact and key.

characteristics:

Manufacturer/Supplier: Denor/Mixvill
Part number: XB2-EG21 / NG22-EG21
Color: black
Number of positions: 2 maintained
Contact: 1 NO
Material: plastic
Rated working current Ith: 10 A
Working current at 220 Vac: 4,5 A
Maximum working voltage: 415 V
Contact resistance: 50 mOhm
Front protection degree: IP40
Connection protection degree: IP20

Dimensiones selector con llave plastico

Equipment for professional use, install in compliance with the regulations in force at the place of installation.
