Double distributor 2 3/8 inputs - 4 1/4 outputs...
Double distributor 2 3/8 inputs - 4 1/4 outputs in aluminum - Aignep

Double distributor 2 3/8 inputs - 4 1/4 outputs in aluminum - Aignep

€10.36 Tax included

€8.56 tax excl.

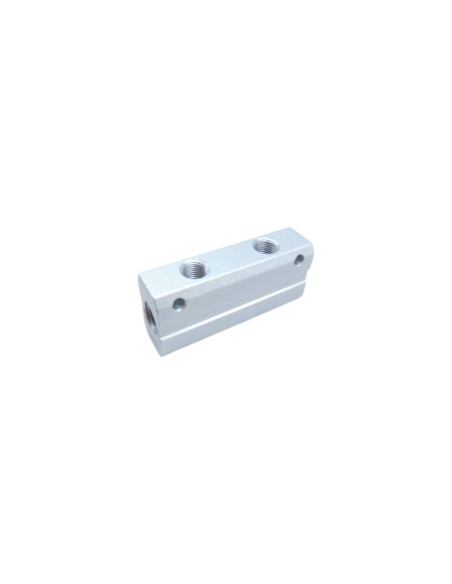

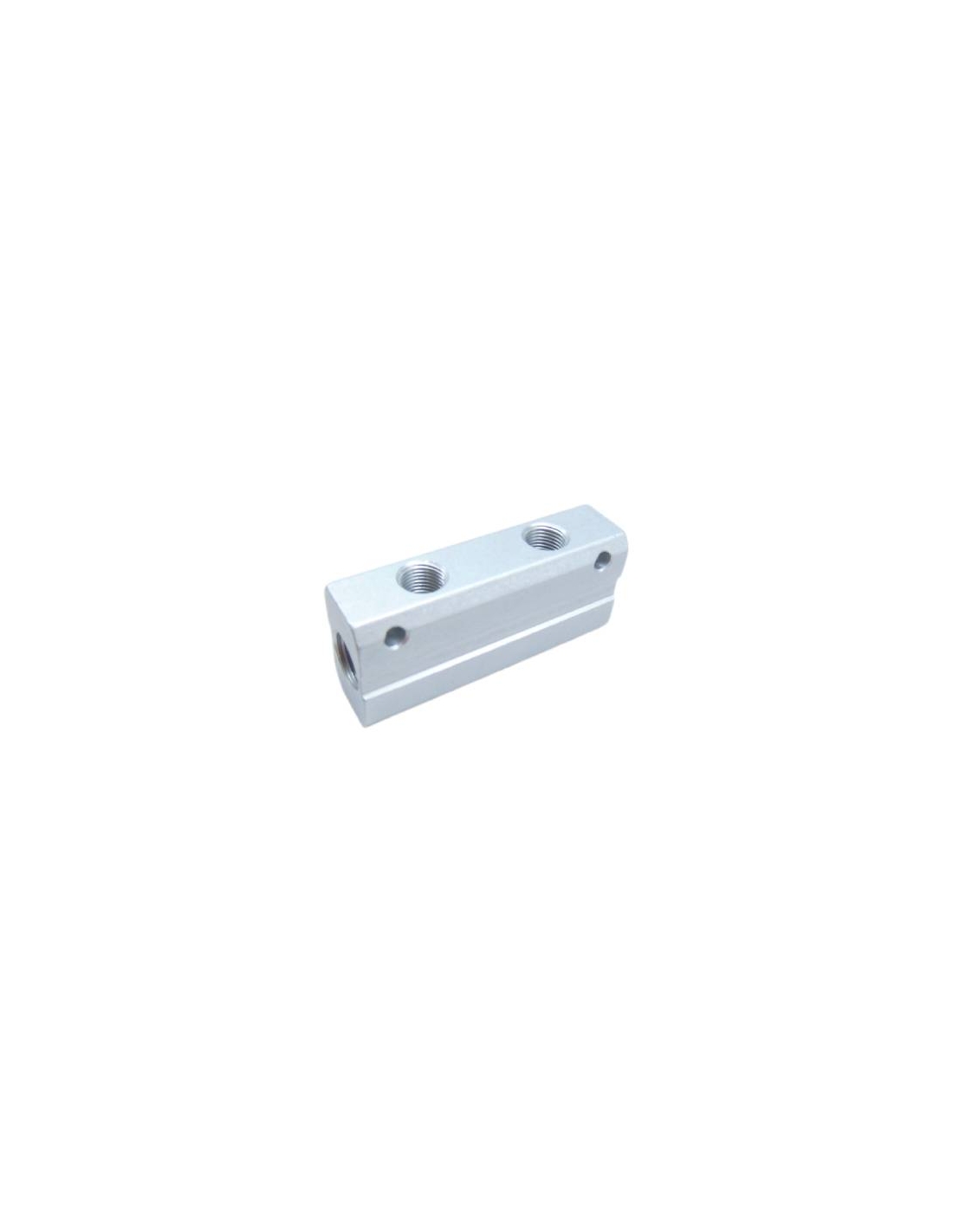

Double manifold distributor for pneumatic installations, 2 3/8" threaded inlets and 4 1/4" outlets (2 + 2). Aluminum body. European manufacturing.

Series: Accessories
Reference: 6048 3/8 1/4 2




aignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Double manifold distributor for pneumatic installations, 2 3/8" threaded inlets and 4 1/4" (2 + 2) outlets, used for connection to the pneumatic network.

double power strip
Body made of aluminum and that supports a maximum pressure of 75 bar , with a safety coefficient of 4. This distributor is suitable for water, oils, compressed air, fluids in general in pneumatic, hydraulic, oleodynamic, hydropneumatic installations, etc. ..

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 6048 3/8 1/4 2
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric


6048dimensions6048TD

Material for professional use, install in compliance with the regulations in force at the installation site.
