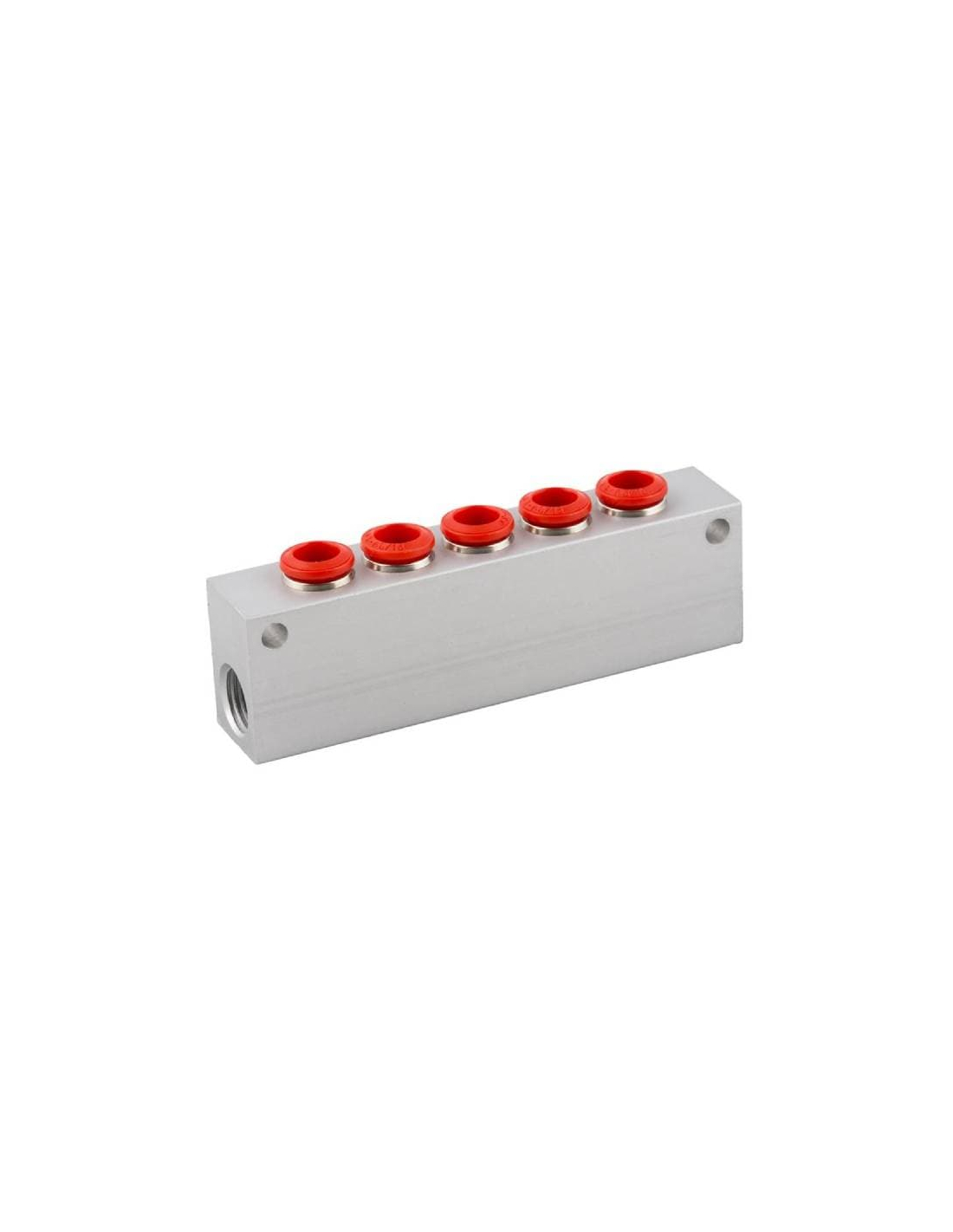

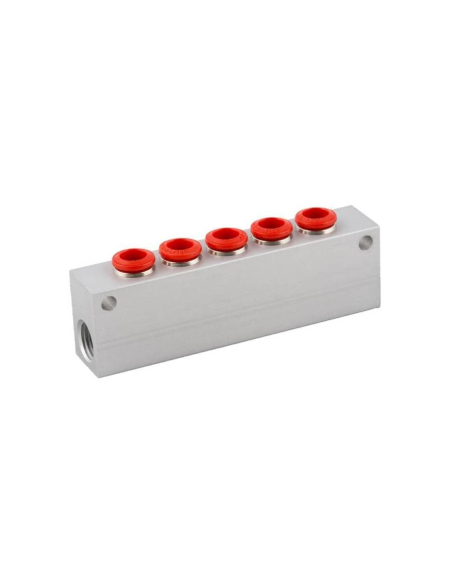

Simple distributor 2 inputs 1/4 - 5 outputs 6mm in aluminum Series 50000 - Aignep

€15.43 Tax included

12.75 tax excl.

50900614

Simple collector distributor with fittings for pneumatic installations, 2 1/4 threaded inlets and 5 6 mm outlets. Aluminum body. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Series: 50000
Reference: 50900 6 1/4




aignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Aluminum strip collector distributor for pneumatic installations, 2 1/4 threaded inlets and 5 6 mm outlets on one side, used for connection to the pneumatic network.

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 50900 6 1/4
  • Thread: 1/4
  • External Ø of the tube: 6mm.
  • Fluid: Vacuum - Compressed air.
  • Operating pressure: -0.99 bar to 20 bar .
  • Material: Aluminum.
  • Tube extractor ring: acetal resin
  • retention gasket: NBR.
  • Clamping spring: stainless steel.
  • Working temperature: -20ºC to +80ºC.
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric

50900dimensions

50900TD


Material for professional use, install in compliance with the regulations in force at the installation site.
