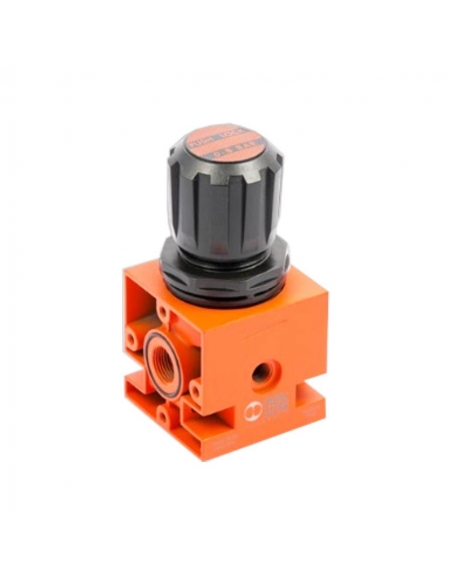

Metallic pressure regulator 1 04 bar New Deal - Metal Work

€126.72 Tax included

€104.73 tax excl.

1" regulation 04 pressure regulator, with an extremely reliable and robust metal body. Allows stability of the output pressure at the preset pressure. Possibility of fixing by means of lateral holes. New Deal Group

Reference: 1602001

pneumatic pressure regulator symbol

metal work logo




Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.



No queries yet, leave the first!
Privacy
Shipments
Returns


1" pressure regulator , with an extremely reliable and robust metal body. It allows stability of the outlet pressure at the preset pressure starting from an equal or higher inlet pressure. Possibility of fixing through side holes.

Pressure gauge not included (can be ordered separately)

Technical characteristics.

  • Manufacturer: Metal Work
  • Reference: 1602001
  • Threaded connection size: 1".
  • Regulation range: 0-4 bar .
  • Maximum inlet pressure: 18 bar .
  • Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 2500
  • Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) (Nl/min): 4500
  • Working temperature: -10 to +50ºC.
  • Mounting position: any position.
  • Fluid: Air filtering, with or without lubrication (continuous lubrication)
  • Wall fixing screws: M6x75.
  • Pressure gauge connection: 1/4".

For other models or sizes consult.

regulator dimensions new deal

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
