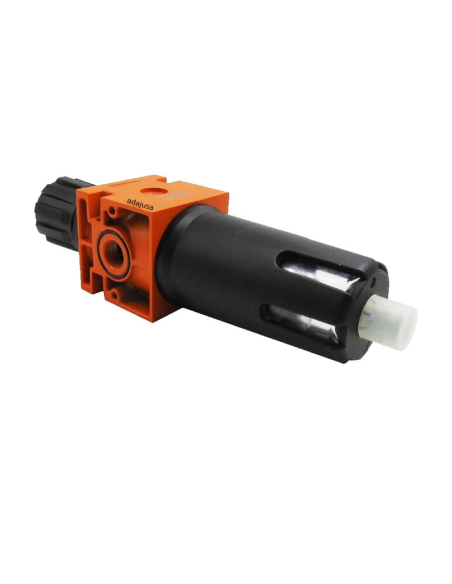

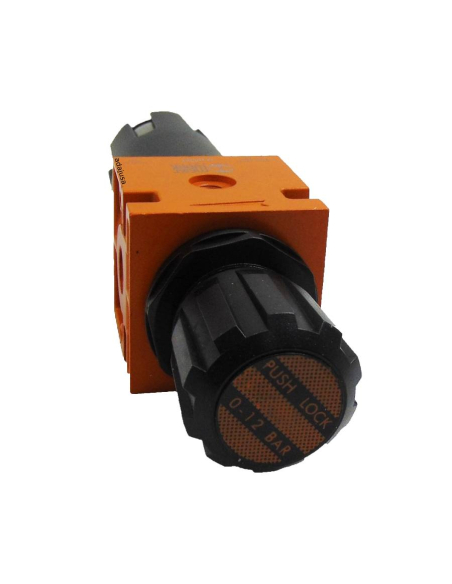

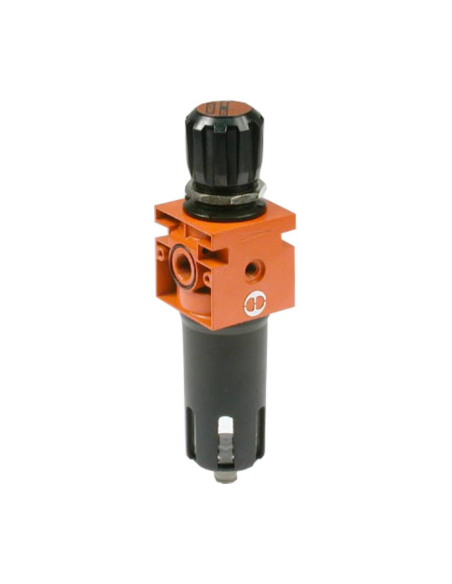

Filter-regulator 3/8 metal 0-8 bar automatic drain New Deal - Metal Work

Filtering unit with 3/8 pneumatic pressure regulator, consisting of 1 element (Filter-regulator) with automatic purge. This device combines in a single unit the functions of filtration, condensation separation and pressure regulator. The pneumatic pressure regulation margin is between 0 and 8 kg/cm2, the degree of filtering is 50 μm.
Among the main characteristics of this filtering group, it has a great flow performance compared to its size, metallic construction, excellent resistance to corrosion.

The type of purge is automatic, it works by depression.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristic:

• Manufacturer: Metal Work
• Manufacturer reference: 1325512
• Thread size: 3/8"
• Maximum inlet pressure: 18 bar .
• Condensation discharge type: SAC
• Metal glass with external viewer.
• Built-in overpressure bleed valve.
• Filtration degree: 50μm.
• Cup capacity: 45 cm ³
• Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 1000
• Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) (Nl/min): 2500
• Pressure gauge coupling: 1/8"
• Wall fixing screws: M4x55.
• Mounting position: Vertical.

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.
