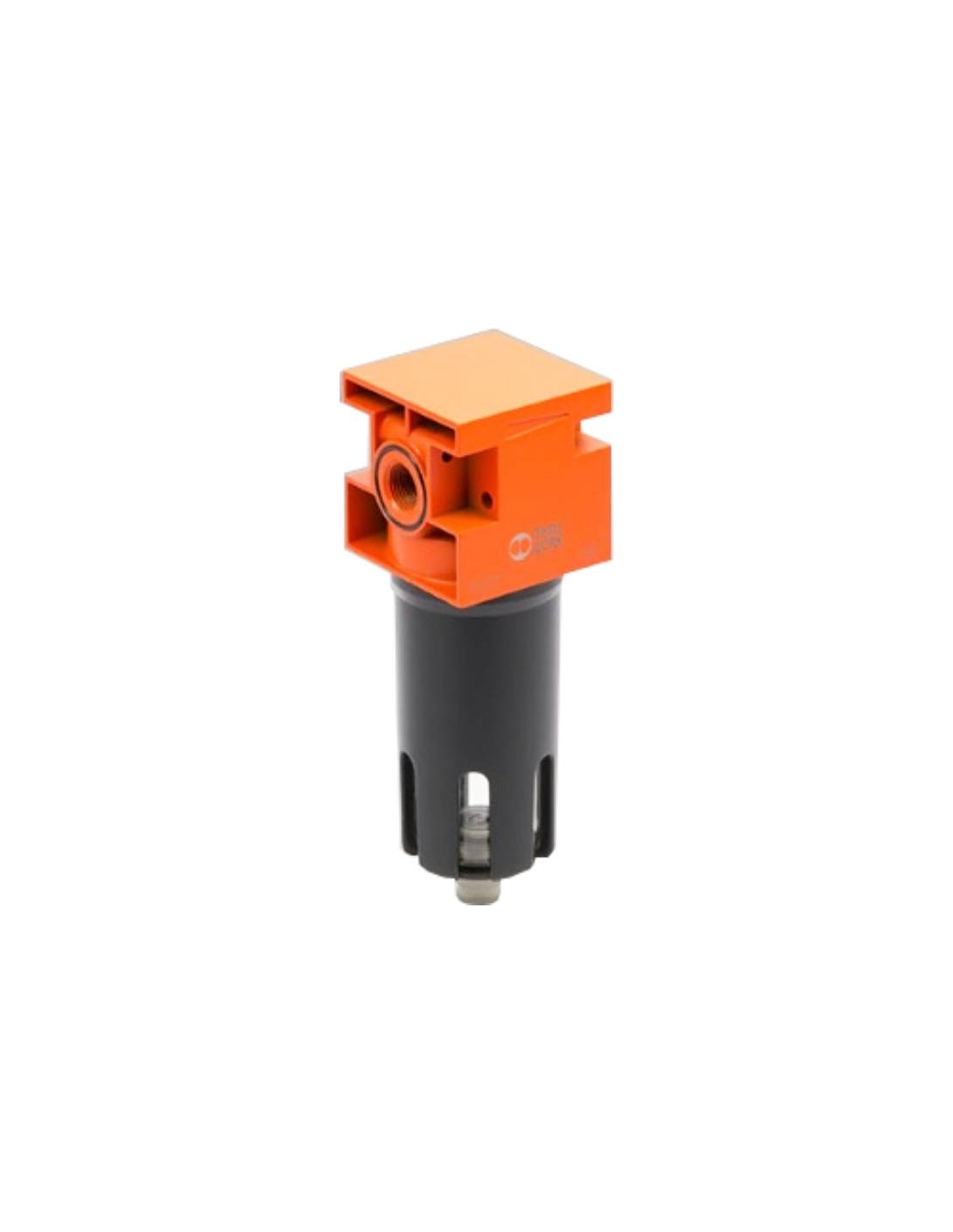

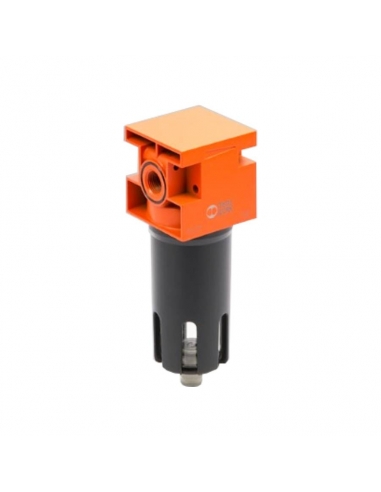

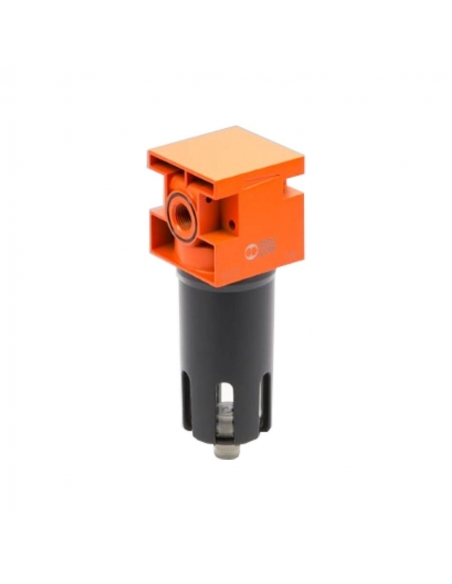

Filter 3/8 metallic 20 microns semi-automatic purge New Deal - Metal Work

€41.41 Tax included

€34.22 tax excl.

Filter 3/8 metallic with a filtration degree of 20μm and semi-automatic discharge, for the retention of solid or liquid impurities from the air compressor. These filter cups are made of metal with excellent resistance to corrosion. European manufacturing.

Series: New Deal
Reference: 1321006

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Metal filter cup, 3/8, with a filtration degree of 20μm to retain solid or liquid impurities from the air compressor. The type of purge is semi-automatic, it discharges when the pressure in the filter approaches zero.

Characteristic:

Manufacturer: Metal Work
Reference: 1321006 - FIL 3/8 20 RMSA
Threaded coupling : 3/8
Metal glass with external viewer.
RMSA: Manual condensate drain and automatic discharge when pressure is removed.
Maximum inlet pressure: 18 bar .
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) : 3100 Nl/min.
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi): 4100 Nl/min.
Filtration degree: 20 microns.
Maximum temperature at 1 MPa; bar ; 145psi: 50ºC
Bowl capacity: 45 cm3

For other sizes and models consult.

dimensiones filtro 3/8 y 1/2

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
