1/4 4- way 3-position ce lever valve - Aignep
1/4 4- way 3-position ce lever valve - Aignep

1/4 4- way 3-position ce lever valve - Aignep

€38.91 Tax included

€32.16 tax excl.

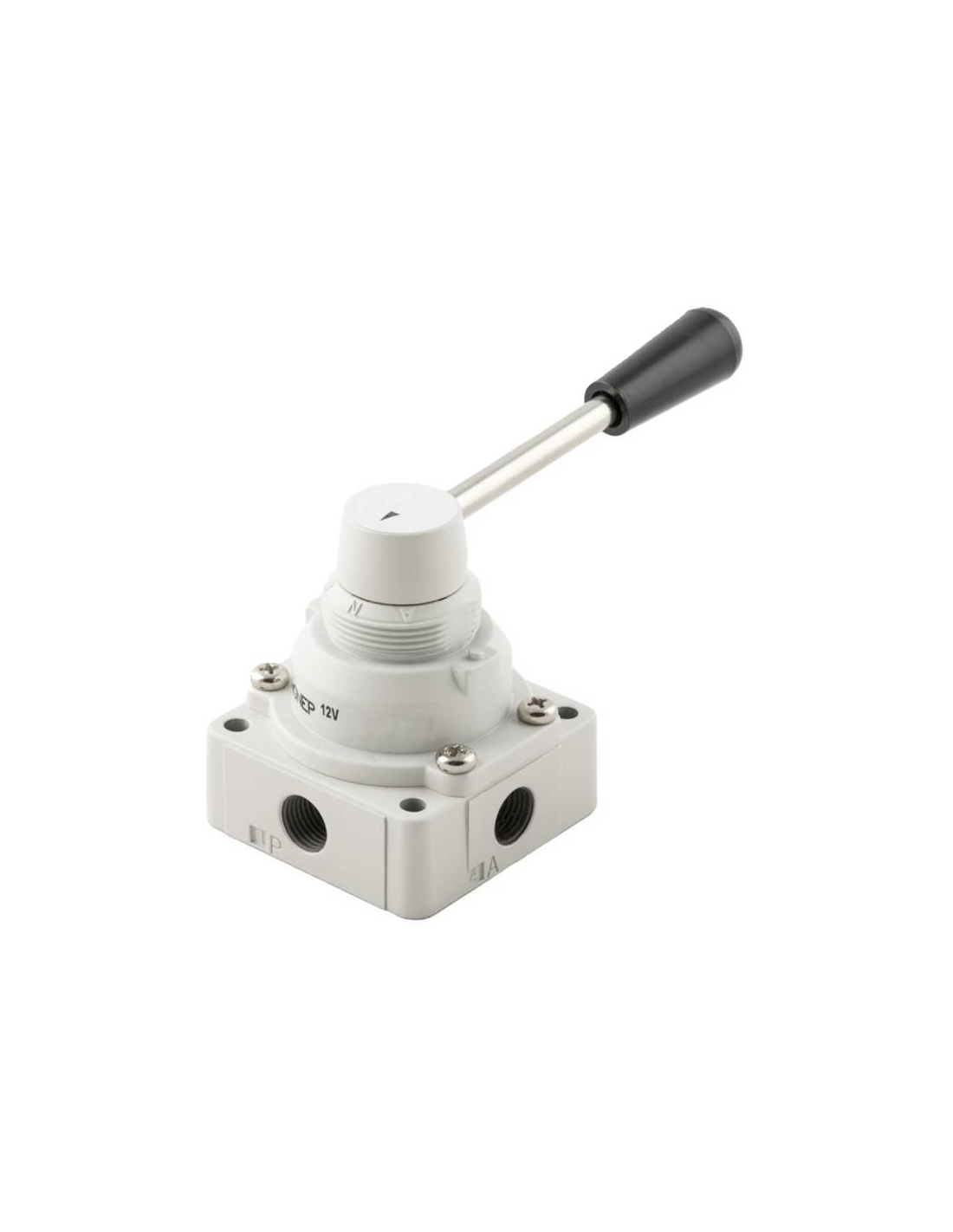

1/4 valve manually operated by rotating lever. 4 way 3 positions, centers in exhaust, anodized and varnished aluminum body. Escape centers (OC). For controlling double-acting cylinders.

Reference: 12V1L26OC03

OCESCHEMAAIGNEPNORMATIVE




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 valve manually operated by 4- way rotary lever, 3 fixed positions, which allow controlling double-acting cylinders.

The valve has 3 stable positions, in one of them the cylinder advances, in the intermediate one, the cylinder is left without pressure (force), and in the other position the cylinder retracts.

It can also be used as a shut-off valve and for general use.

Fixing using through screws or transpanel mounting with fixing using a front nut. Mounting accessories not included in the supply.



Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 12V1L26OC03
  • Configuration: 4 way 3 fixed positions centers in exhaust.
  • Thread type: G 1/4".
  • Type of fluid: Pressurized air, with or without lubrication.
  • Working pressure: 0 to 10 bar .
  • Working temperature: -5º to +60º (No condensation).
  • Screw fixing: 4 Ø5.5mm through holes.
  • Nut fixing: M33x1.5mm nut (Not included).
  • Valve body material: Anodized and varnished aluminum.
  • Component material: NBR gaskets

12V1DIMENSIONS

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
