Angle lever valve 90º 1/4 3/2 bistable - Metal Work

Name: Angle lever valve 90º 1/4 3/2 bistable - Metal Work
Brand: Metal Work
SKU: 7020000200
Price: 71.874 EUR
Availability: InStock

€71.87 Tax included

€59.40 tax excl.

Valve of 1/4 manual drive by bistable lever. 3 ways 2 positions return spring, metal body, lever of action to 90º. For control of cylinders of simple effect.

Reference: 7020000200

Logotipo Metal Work

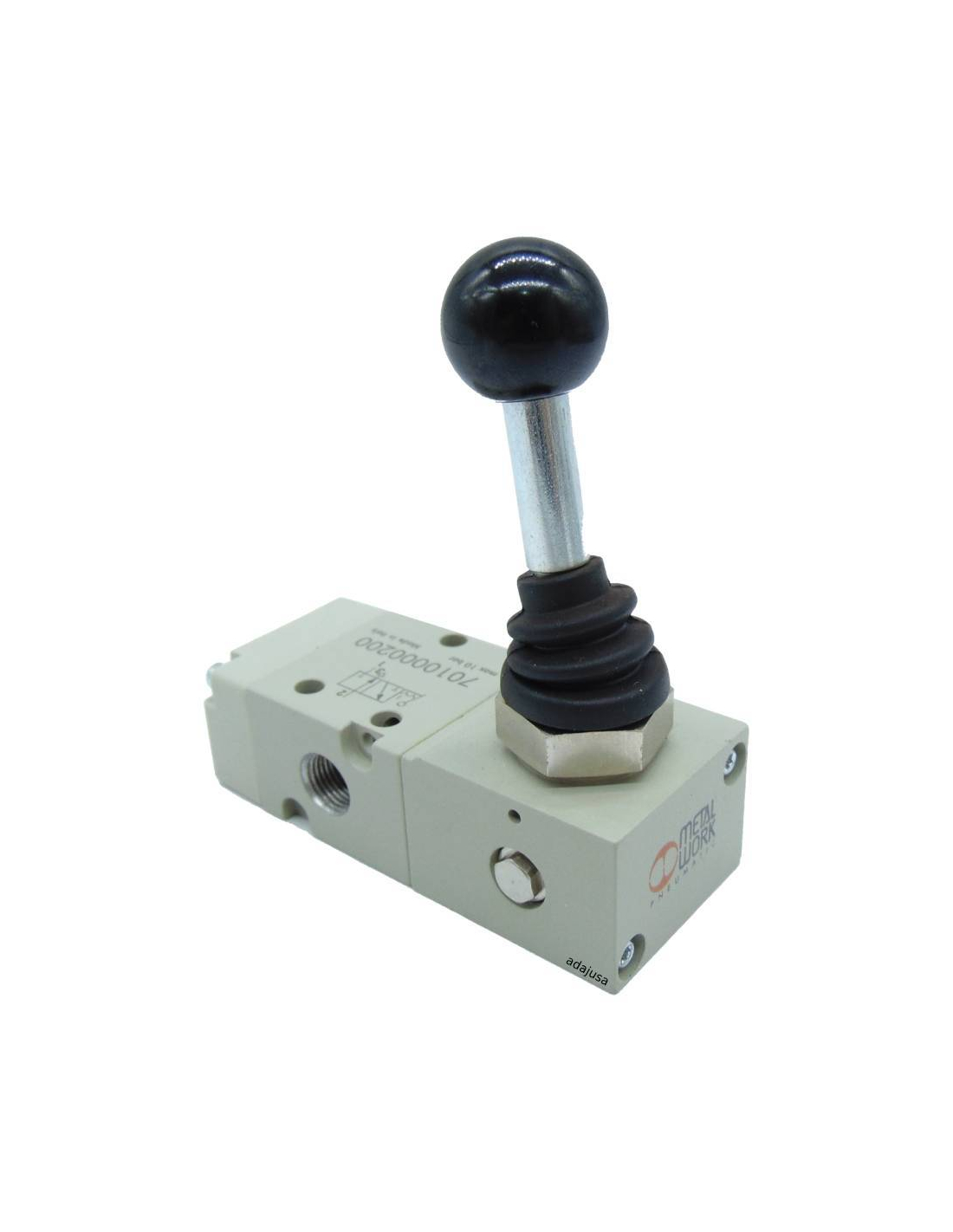

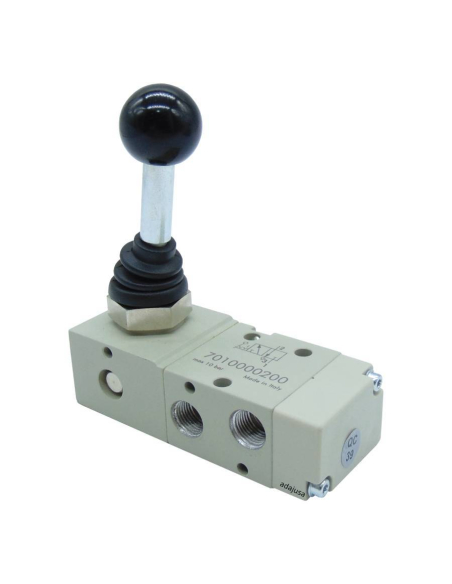

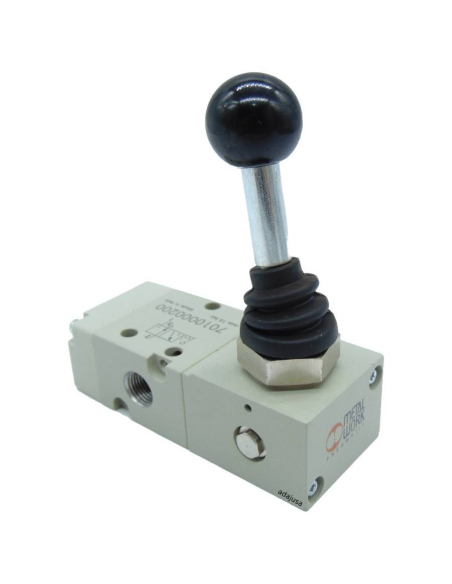

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Valve of 1/4 manual drive by bistable lever of 2 positions return spring, 3 ways 2 positions that allow to control cylinders of simple effect. In one position the cylinder is collected, in another position the cylinder advances. it can also be used as a passage valve or pneumatic circuit cut-off.

Angle lever drive at 90º.

Manufacturer: Metal Work.
Reference: MAV 33 OO Code: 7020000200
Operating pressure Bar: Empty ÷ 10
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 7.5
Conductance C Nl/min · bar: 264.26
Critical ratio b bar/bar: 0.27
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
Flow rate at 6 bar ΔP 1 bar Nl/min: 1100

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
