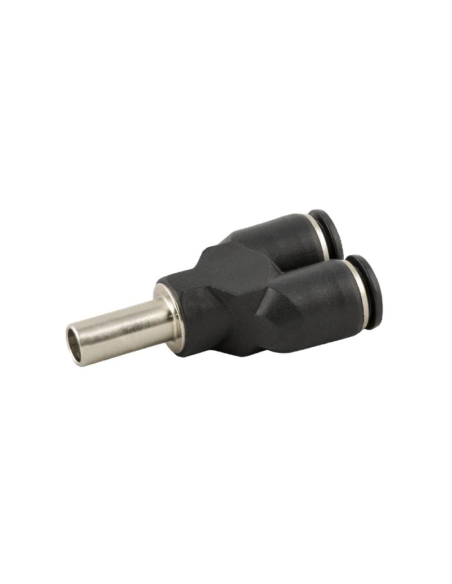

Intermediate Y fitting tube 6 with adapter 8 Series 55000 - Aignep | ADAJUSA
Intermediate Y fitting tube 6 with adapter 8 Series 55000 - Aignep | ADAJUSA

Intermediate pipe 6 Y-connector with adapter 8 Series 55000 - Aignep

€4.31 Tax included

3.56 tax excl.

5531586

Intermediate automatic "Y" fitting for Ø 6mm tube with Ø 8mm adapter, technopolymer body and tube extraction ring in acetal resin. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Reference: 55315 8 6




aignep
normativa


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Intermediate automatic "Y" fitting for Ø 6mm tube with Ø 8mm adapter, technopolymer body and tube extraction ring in acetal resin. Very efficient connection simple which allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming it, thus allowing a greater simplicity in the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

  • Manufacturer: Aignep.
  • Part number: 55315 8 6
  • Tube diameter: 6mm
  • Adapter diameter: 8mm.
  • Fluid: vacuum, compressed air and water.
  • Material: Technopolymer.
  • Tube extractor ring: acetal resin
  • Seal of retention: NBR.
  • Clamping spring: stainless steel.
  • Pressure: -0,99 bar to 20 bar
  • Temperature: -20 C to 80 C
  • Thread standard
    • Gas conical according to ISO 7.1, BS 21,DIN 2999
    • Gas cylindrical according to ISO 228 Class A
    • Metric according to ISO R/262




55315 4 4dimensiones
55315 4 4TD

Material for professional use, install in compliance with the regulations in force at the place of installation.
