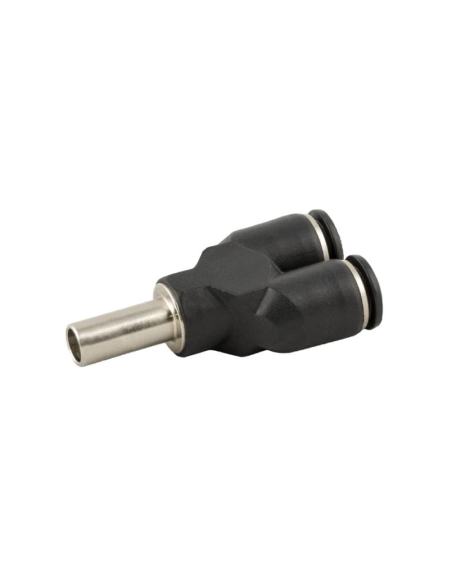

Intermediate Y fitting tube 4 with adapter 4 Series 55000 - Aignep

Intermediate Y fitting tube 4 with adapter 4 Series 55000 - Aignep

€3.38 Tax included

€2.79 tax excl.

Intermediate automatic "Y" fitting for Ø 4mm tube with Ø 4mm adapter, technopolymer body and acetal resin tube extraction ring. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Series: 55000
Reference: 55315 4 4




aignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Intermediate automatic "Y" fitting for Ø 4mm tube with Ø 4mm adapter, technopolymer body and acetal resin tube extraction ring. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 55315 4 4
  • Tube diameter: 4mm
  • Adapter diameter: 4mm.
  • Fluid: vacuum, compressed air and water.
  • Material: Technopolymer.
  • Tube extractor ring: acetal resin
  • retention gasket: NBR.
  • Clamping spring: stainless steel.
  • Pressure: -0.99 bar at 20 bar
  • Temperature: -20 C to 80 C
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric




55315 4 4dimensions
55315 4 4TD

Material for professional use, install in compliance with the regulations in force at the installation site.
