Intermediate T fitting tube 6 instant technopolymer - Metal Work

€2.93 Tax included

2.42 tax excl.

2L22003

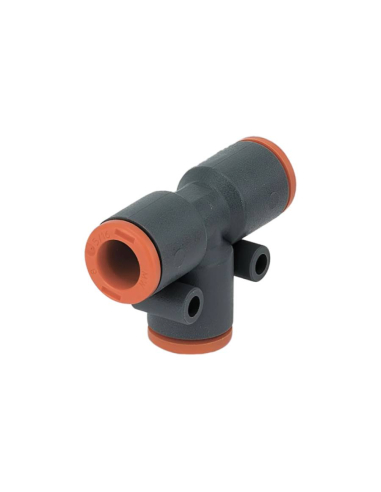

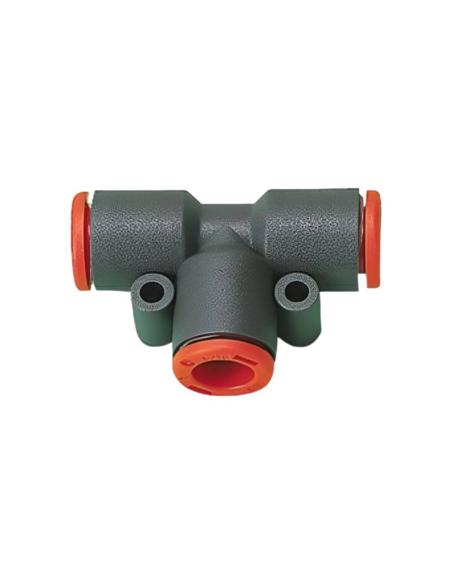

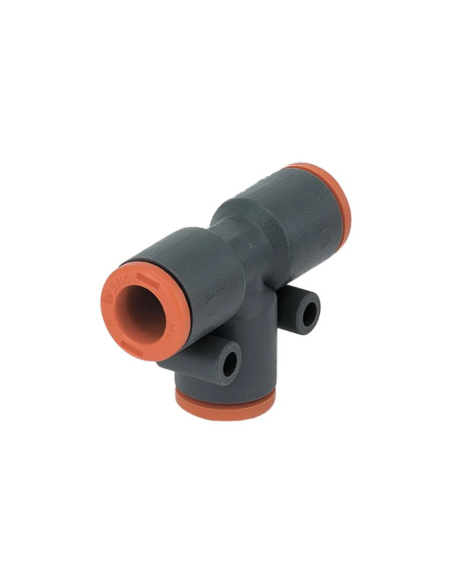

Automatic "T" fitting for ØExterior tube of 6mm., quick connection, made of high quality technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention.

Reference: 2L22003

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Automatic "T" fitting for 6mm" high-connection, high-quality technopolymer tube. Very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring, turn the tube on without engraving or deforming it allowing for greater simplicity in the operation of disenging or disconnecting the tube fitting. In the fittings the fitting ring has screwdriver slots for easy disconnection in finger-inaccessible applications.

  • Manufacturer: Metal Work.
  • Manufacturer's reference: 2L22003.
  • Tubeexterior: 6mm.
  • Fluid: Vacuum - Compressed air.
  • Operating pressure: -0.99 bar to 12 bar.
  • Material: Technopolymer.
  • Retention gasket: NBR.
  • Clamping spring: stainless steel.
  • Working temperature: -20oC to +60oC.

For other references consult.

Dimensiones racor T neumático METAL WORK

Material for professional use, install in compliance with the regulations in force at the place of installation.
