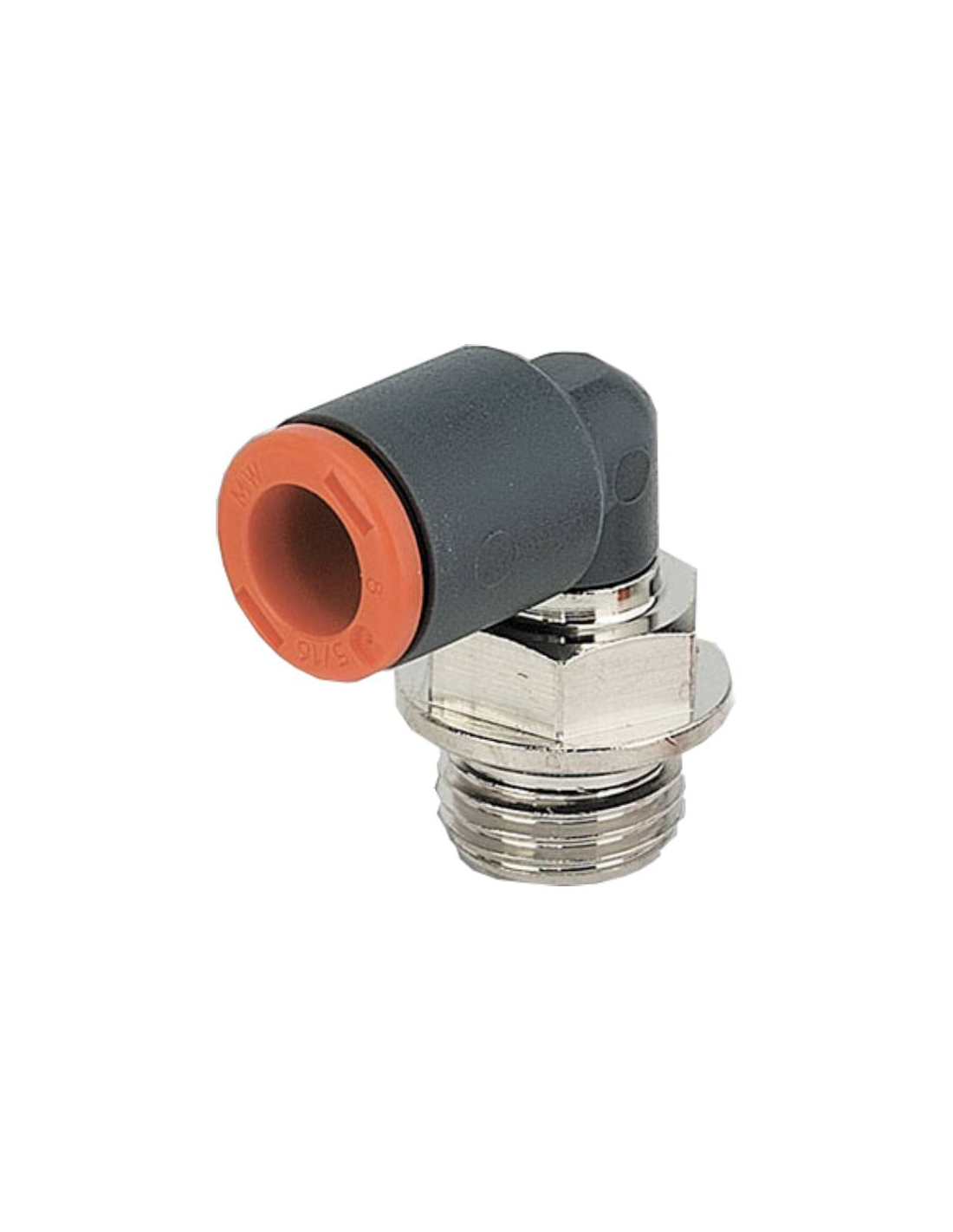

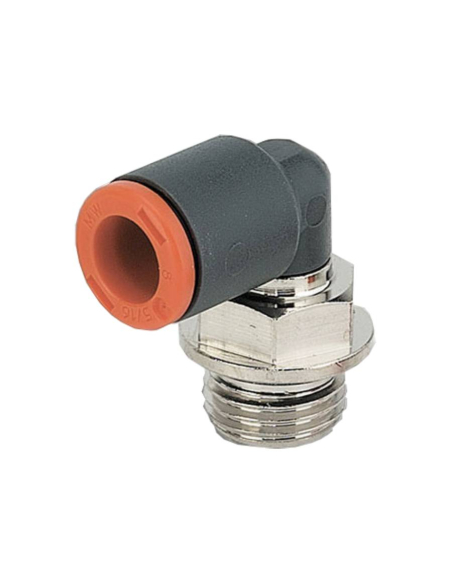

Cylindrical swivel elbow fitting 1/4 tube s10

Cylindrical swivel elbow fitting 1/4 tube s10

Cylindrical swivel elbow fitting 1/4 tube 10 technopolymer - Metal Work

€3.57 Tax included

€2.95 tax excl.

Racor rotating elbow 1/4 for tube ØExt 10mm. Male cylindrical thread, with O-ring included. Fast, very simple and efficient connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Racor valid for pneumatic and vacuum installations.

Reference: 2L34013

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

1/4 male swivel elbow fitting for 10mm. 10mm. outdoor tube, quick-connect, made of high quality laton and technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring, turn the tube on without engraving or deforming it allowing for greater simplicity in the operation of connection or disconnection of the tube fitting. In the fittings the fitting ring has screwdriver slots for easy disconnection in finger-inaccessible applications.

Manufacturer: Metal Work.
Manufacturer's reference: 2L34013.
Thread: 1/4 Cylindrical.
Tube extension: 10mm.
Fluid: Vacuum - Compressed air.
Operating pressure: -0.99 bar to 16 bar.
Material: Chromed brass and technopolymer.
Retention gasket: NBR.
Clamping spring: stainless steel.
Working temperature: -20oC to +80oC.

For other references consult.

Dimensiones racores neumáticos orientables Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

Racores tecnopolimero MW

Download (1.3MB)
