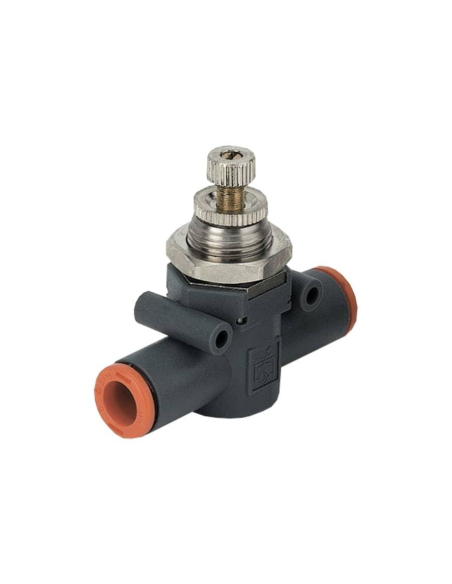

6mm tube-tube bidirectional flow Regulator - Metal Work

€11.48 Tax included

9.49 tax excl.

9041616

Bidirectional in-line flow Regulator , for 6mm diameter tube, designed for fluid regulation in two directions.

Reference: 9041616

9041301schemeMetal Work Logo


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.



No queries yet, leave the first!
Privacy
Shipments
Returns


Bidirectional flow Regulator developed to control fluid speed. It is provided with an O-ring on the screw, to improve the tightness of the regulator and automatic fittings at the inlet and outlet.

This micro-flow regulator with built-in automatic fittings is responsible for regulating the air supply and, thus, the speed in the pneumatic actuators.

The regulator can be mounted on a panel or on a wall; it is provided with the necessary elements for its correct installation.

  • Manufacturer: Metal Work
  • Reference: 9041616
  • Tube diameter: 6mm
  • Body material: Technopolymer
  • Gasket: NBR
  • Exercise temperature: -20 ºC +60 ºC
  • Max pressure exercise: 10 bar
  • Max flow in regulation at 6.3 bar : 450 Nl/min
  • Exhaust flow at 6.3 bar : 550 Nl/min
  • Regulation: manual
  • Fluid: filtered compressed air with or without lubrication

Dimensions:
904dimensions


For other types and models of regulators, consult.

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
