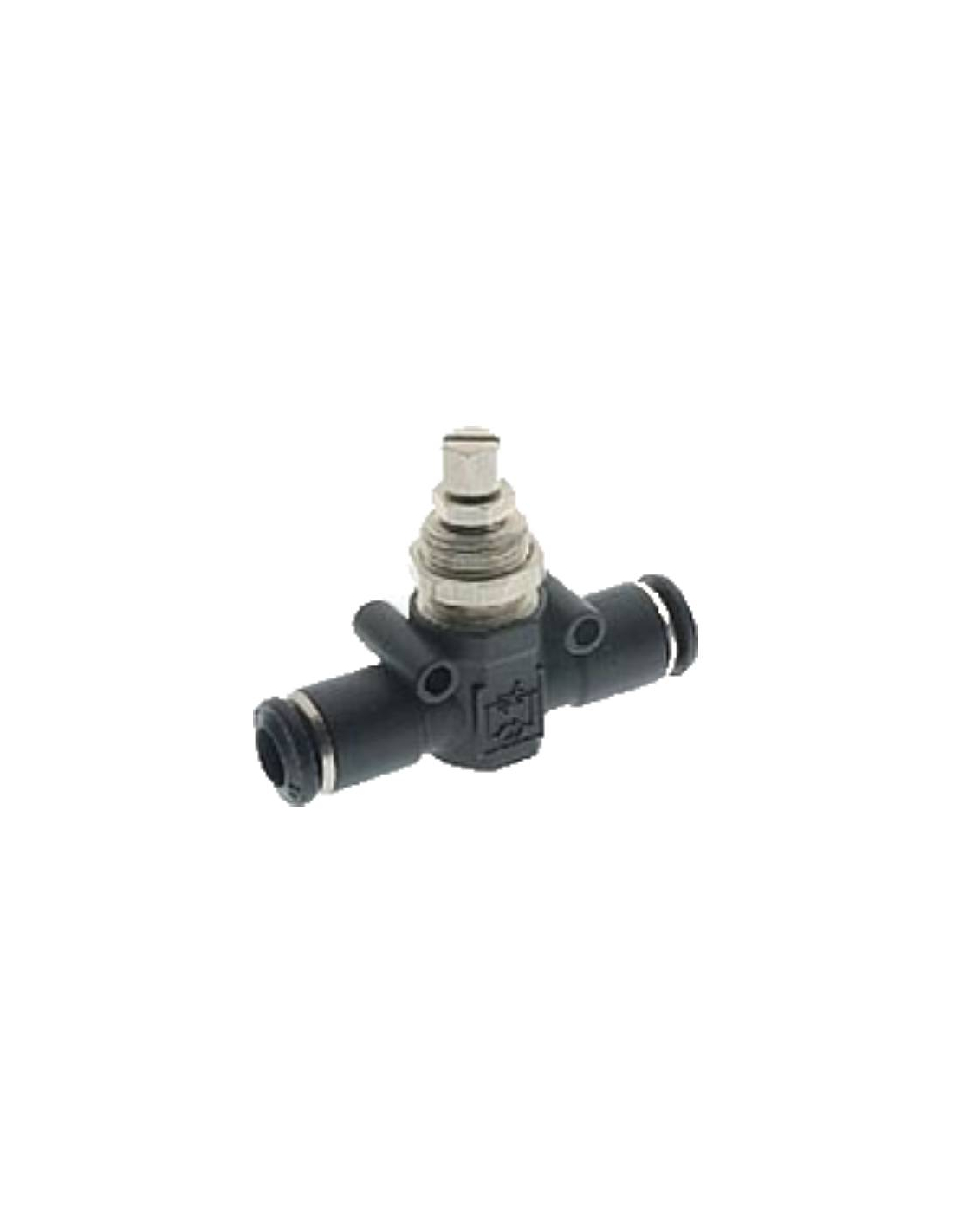

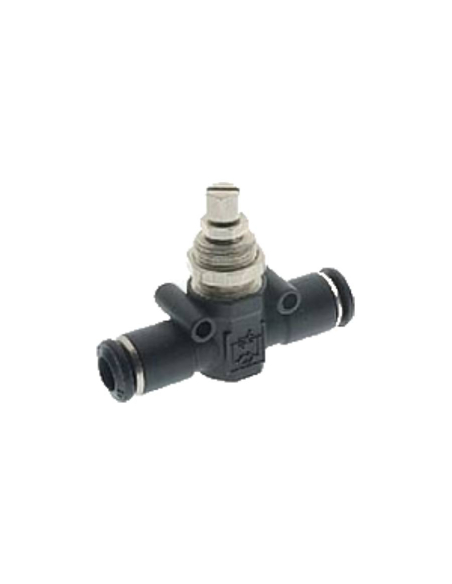

4mm tube-tube unidirectional flow Regulator Aignep

€8.12 Tax included

€6.71 tax excl.

55940 4

Unidirectional in-line flow Regulator , for 4mm diameter tube, designed to regulate the fluid in a single direction.

Series: Function
Reference: 55940 4

55940DIAGRAMaignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


4mm unidirectional flow Regulator developed to control fluid speed. It is provided with an O-ring on the screw to improve the tightness of the regulator.

The regulator can be mounted on a panel or on a wall; it is provided with the necessary elements for its correct installation.

Regulator Features:
  • Manufacturer: Aignep
  • Reference: 55940 4
  • Operating pressure bar : 1 ÷ 10
  • Operating temperature °C: -20 ÷ +80
  • Fluid: compressed air
  • Body material: in technopolymer
  • O-ring O-ring Material: NBR
  • Adjustment screw material: Nickel-plated brass
  • Type: Unidirectional in-line Regulator .

55940DIMENSIONS

55940DIMENSIONS TABLE

For other types and models of regulators, consult.

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
