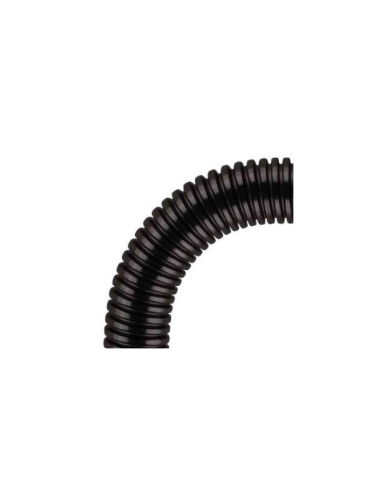

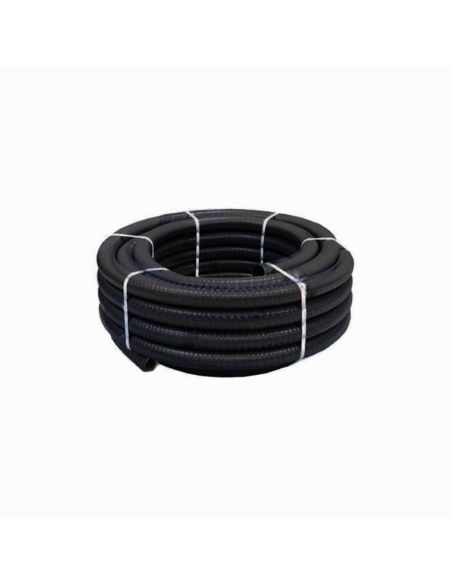

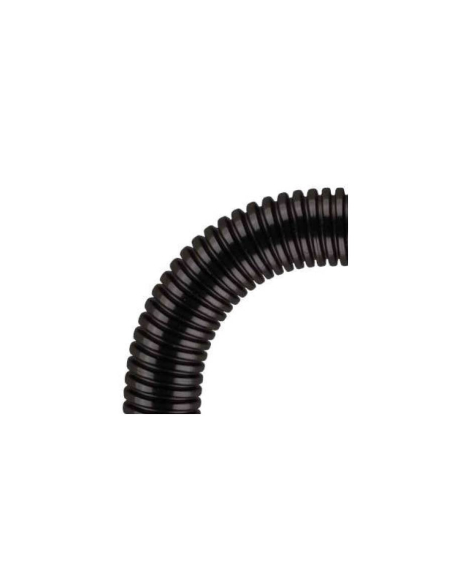

Flexible polyamide spiral tube PG48 ROHRflex PA 6-L 25m diameter 54.5mm black
Flexible polyamide spiral tube PG48 ROHRflex PA 6-L 25m diameter 54.5mm black

Flexible polyamide spiral tube PG48 ROHRflex PA 6-L 25m diameter 54.5mm black

€157.61 Tax included

€130.26 tax excl.

Halogen-free, flexible spiral conduit made of polyamide (PA 6), PG48 thread, external diameter 54.5 mm, black, supplied in a 25-metre roll. Corrugated conduit, both internally and externally, highly flexible and easy to handle, intended for various applications requiring strength, durability and tightness to air and liquids. Protection class IP68.



Reference: 0261.232.048


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Spiral corrugated tube, PG48 size, 54.5mm (DN 50mm) outer diameter, made of modified polyamide (PA 6) free of halogen, silicone and cadmium, black. Hose for the protection and safety of electrical wiring in any industrial installation thanks to its great flexibility, rigidity and resistance. Supplied in a 25-metre roll.


Its spiral design and flexibility make ROHRflex very easy to bend while retaining its shape, making it easy to handle and install in any complex work environment. It has high protection against dust and water, making it suitable for outdoor use, as well as great resistance to mechanical damage, making it ideal for industrial environments where durability and strength are required. Its compressive strength allows it to withstand loads without significant deformation. High impact resistance allows it to withstand knocks and shocks, making it a safe and durable option for wear in demanding work environments. High resistance to oils (+80ºC) and gasoline, acids and solvents. Slow-burning and UV-resistant.

RoHRflex Pa 6-L is ideal for use in applications such as machine construction, industrial plants, automotive, shipbuilding, automation, electrical installations, photovoltaic installations, etc.


It is recommended to install the RoHRflex Pa 6-L tube with any product with the FLEXAQUICK system.


Technical characteristics:

  • Manufacturer/Supplier: Gaestopas
  • Reference: 0261.232.048
  • Size: PG48
  • Outer diameter: 54.5mm
  • Inner diameter: 48mm
  • Quantity: 25 meters
  • Color: Black
  • Material: Polyamide PA6 (halogen, cadmium and silicone free)
  • Compressive strength: 125N
  • Impact resistance: 0.5 Joules
  • Static curvature radius: 100mm (±10%)
  • Dynamic bending radius: 190mm (±10%)
  • Temperature range: -25ºC to +120ºC
  • Dust/water protection grade: IP68 / IP69K
  • Flammability: UL94-HB
  • Weight: 0.225Kg/m
  • Certifications and regulations: CE, EN/IEC 61386-23, UL 1696 | CSA 22.2, UR file E86359










Professional use material, install in compliance with the regulations in force at the installation site.
