Flexible polyamide spiral tube PG13 ROHRflex PA...

Flexible polyamide spiral tube PG13 ROHRflex PA 6-L 50m diameter 18.5mm black

Name: Flexible polyamide spiral tube PG13 ROHRflex PA 6-L 50m diameter 18.5mm black
Brand: Generico-GAE
SKU: 0261.202.014
Price: 75.3588 EUR
Availability: PreOrder

€75.36 Tax included

€62.28 tax excl.

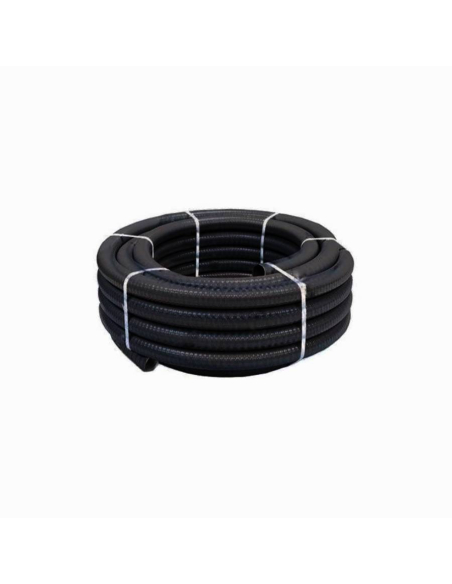

Halogen-free, flexible spiral conduit made of polyamide (PA 6), PG13 thread, 18.5 mm outer diameter, black, supplied in a 50-metre roll. Corrugated conduit, both internally and externally, highly flexible and easy to handle, intended for various applications requiring strength, durability and tightness to air and liquids. Protection class IP68.

Reference: 0261.202.014

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

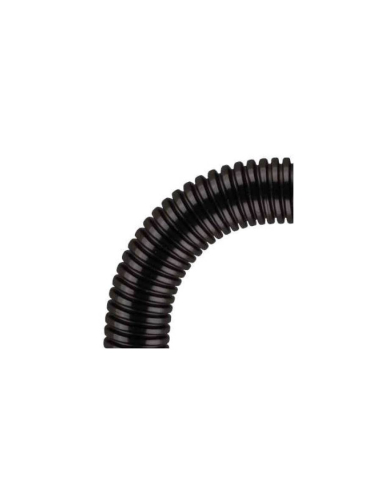

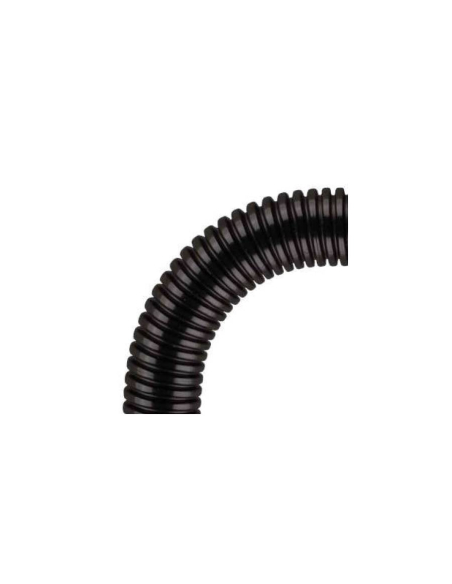

Spiral corrugated tube, PG13 size, 18.5mm outer diameter (DN 14mm), made of modified polyamide (PA 6) free of halogens, silicone and cadmium, black. Hose for the protection and safety of electrical wiring in any industrial installation thanks to its great flexibility, rigidity and resistance. Supplied in a 50-metre roll.

Its spiral design and flexibility make ROHRflex very easy to bend while retaining its shape, making it easy to handle and install in any complex work environment. It has high protection against dust and water, making it suitable for outdoor use, as well as great resistance to mechanical damage, making it ideal for industrial environments where durability and strength are required. Its compressive strength allows it to withstand loads without significant deformation. High impact resistance allows it to withstand knocks and shocks, making it a safe and durable option for wear in demanding work environments. High resistance to oils (+80ºC) and gasoline, acids and solvents. Slow-burning and UV-resistant.

RoHRflex Pa 6-L is ideal for use in applications such as machine construction, industrial plants, automotive, shipbuilding, automation, electrical installations, photovoltaic installations, etc.

It is recommended to install the RoHRflex Pa 6-L pipe with any product with the FLEXAQUICK system.

Technical characteristics:

Manufacturer/Supplier: Gaestopas
Reference: 0261.202.014
Size: PG13
Outer diameter: 18.5mm
Inner diameter: 14.3mm
Quantity: 50 meters
Color: Black
Material: Polyamide PA6 (halogen, cadmium and silicone free)
Compressive strength: 125N
Impact resistance: 0.5 Joules
Static bending radius: 40mm (±10%)
Dynamic bending radius: 65mm (±10%)
Temperature range: -25ºC to +120ºC
Dust/water protection grade: IP68 / IP69K
Flammability: UL94-HB
Weight: 0.050Kg/m
Certifications and regulations: CE, EN/IEC 61386-23, UL 1696 | CSA 22.2, UR file E86359

Professional use material, install in compliance with the regulations in force at the installation site.
