Lubricator 3/8 technopolymer

Lubricator 3/8 technopolymer

Lubricator 3/8 Size 1 technopolymer Syntesi - Metal Work

€32.90 Tax included

€27.19 tax excl.

Pneumatic lubricating vessel of 3/8 size 1, in technopolymer. Syntesi Group
Reference: 5613L103

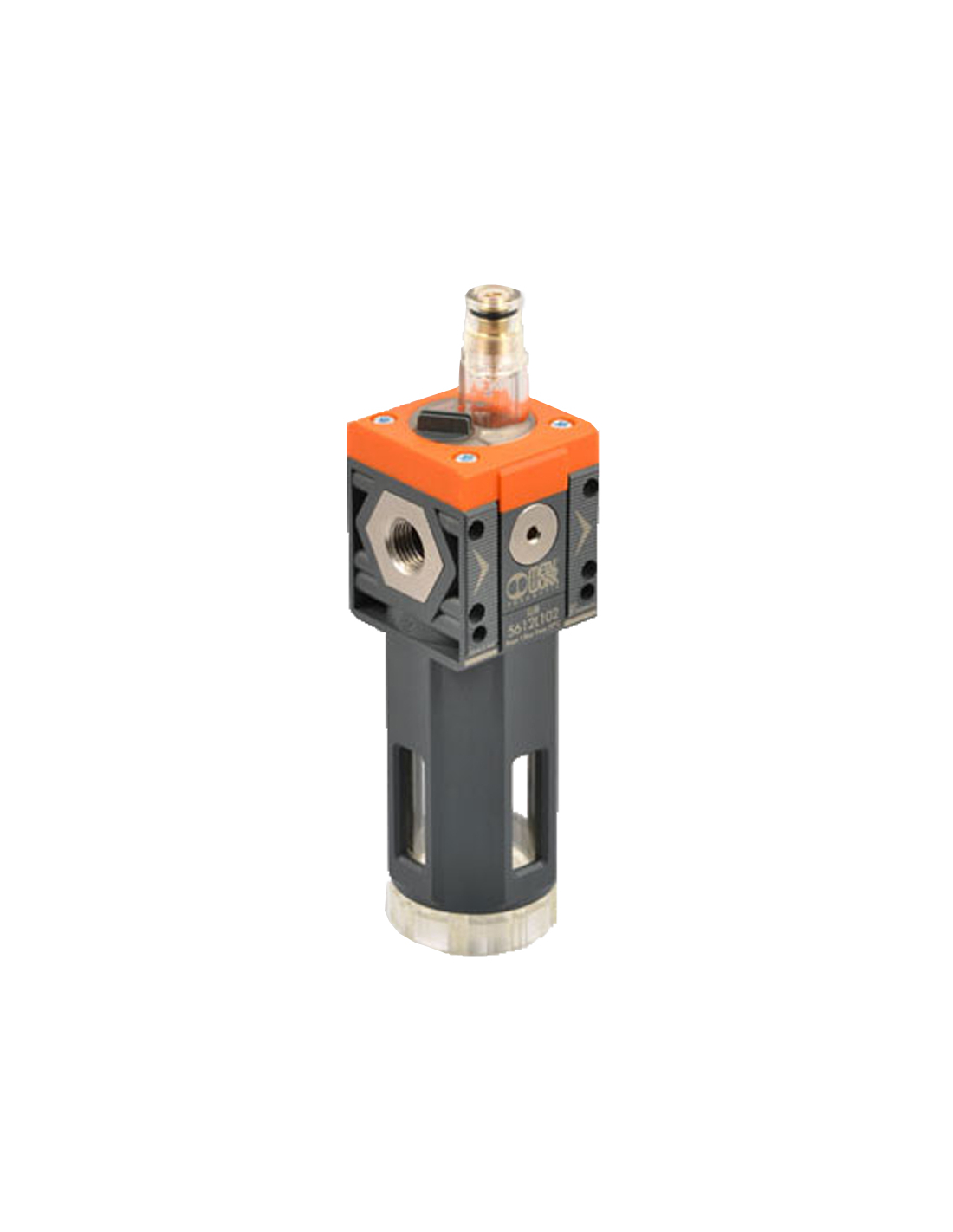

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

3/8" size 1 pneumatic lubricating vessel for coupled to filtration group or independent use. The lubricating vessel is made of high strength technopolymer.

- Manufacturer: Metal Work
- Manufacturer's reference: 5613L103.
- Thread size: 3/8".
- Group size: size 1.
- Maximum inlet pressure: 15 bar.
- Vessel capacity: 60 cm3
- Flow rate at 6 bar (&DELTA; P1bar): 3650 Nl/min.
- Wall fixing screws: M4.
- Mounting position: Vertical.
- Working temperature: -10 to +50oC.

For other sizes or references: consult.

Dimensiones lubricador serie syntesi

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Filters and Lubricators Tab

Download (410.99KB)
