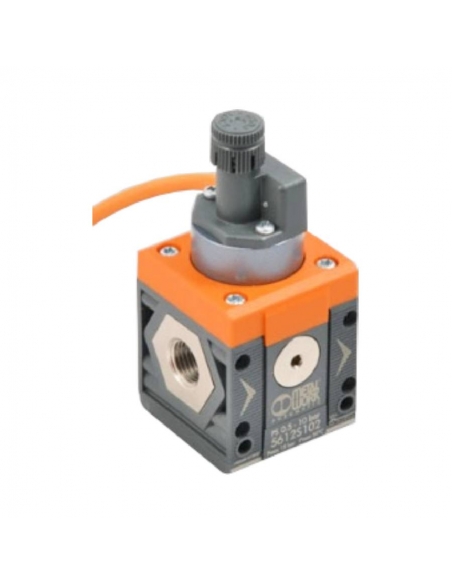

Pressure switch Size 1 3/8 2m cable Syntesi - Metal Work

€62.42 Tax included

51.59 tax excl.

5613S103

3/8" size 1 pressure switch, presents a high degree of miniaturization. It is a device whose function is to open or close circuits depending on the adjusted pressure.

Reference: 5613S103

syntesi pressure switch diagram metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

3/8" size 1 pressure switch, it has a high degree of miniaturization. They are ready assembled with a 2 m cable or with an M8 connector with a 300mm cable. The contact is of the switch type, so they can be normally open or closed. They can be regulated by means of a knurled push-lock knob.

Characteristic:

Manufacturer: Metal Work
Reference: 5613S103
Discharge threaded coupling: 3/8"
Maximum current / maximum voltage: 2A / 250V
Cable outer diameter: 4.9mm
Number and section of wires: 3 x 0.5mm²
Contacts: normally open (NO) and normally closed (NC)
Protection: IP65
pressure max. admitted:
- - bar : 15
  - MPa: 1.5
  - psi: 217
Flow rate of additional air intakes 6.3 bar (0.63 MPa; 91 psi) ΔP 1 bar (0.1 MPa; 14 psi): Nl/min 500 - scfm 18
temperature at 10 bar ; 1MPa; 145psi°: -10÷+50
Fluid: Filtered air with or without lubrication, if lubrication is used it must be continuous.
Mounting position: In any position
Supplementary air intake, for pressure gauge or fitting: 1/8”, front and rear
Wall fixing screws: Number 2 M4 screws

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
